Allen-Bradley PowerFlex 70 Reference Manual

2-198 Start-Up

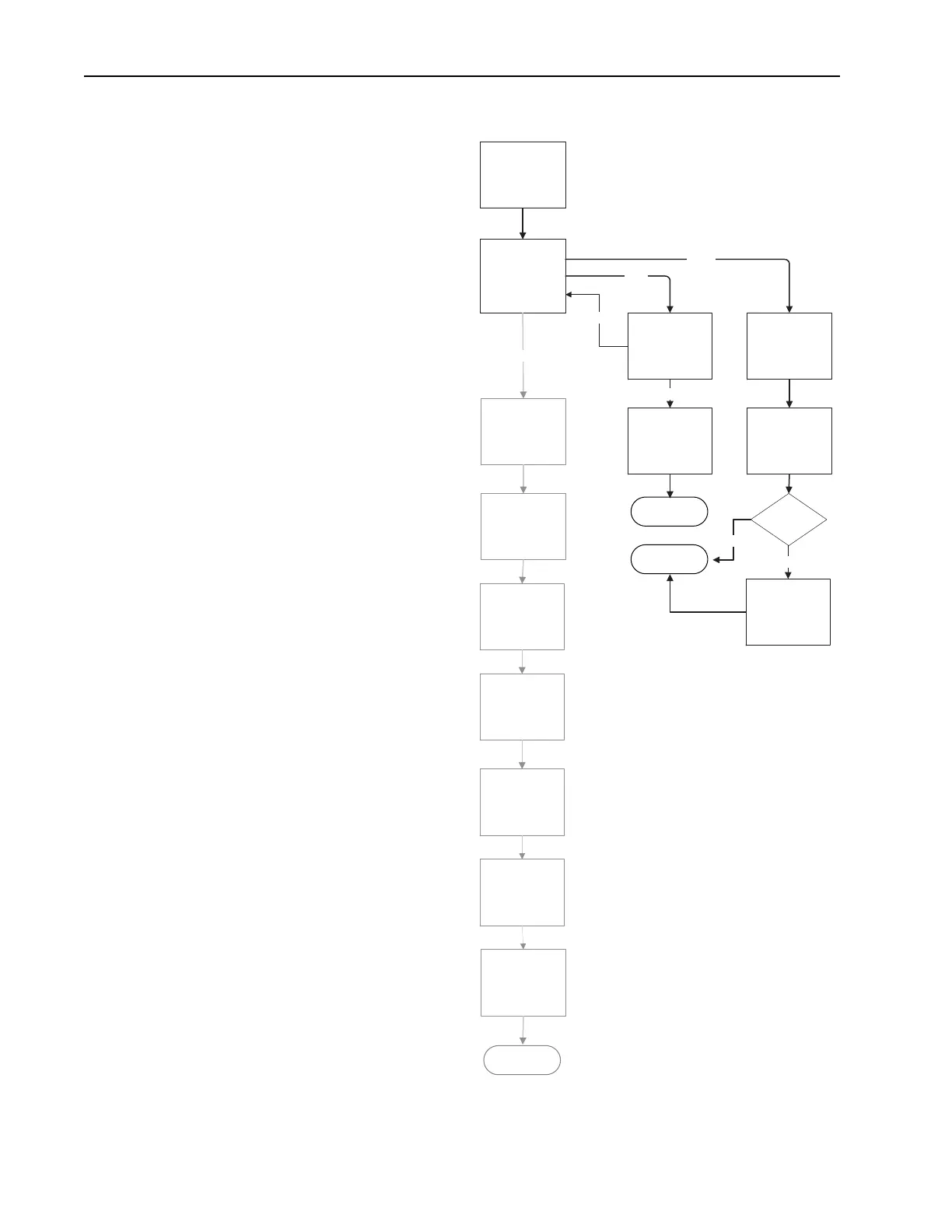

Figure 2.40 PowerFlex 700 Vector Control Option Startup (8)
Start-Up
7.Appl Features
Make a Selection
<Flying Start>
Auto Restart
Done
Flux Vector Start Up (Application Functions)
Start-Up
7.Appl. Features
This allows
programming of
additional drive
features.
Start-Up
7.Appl Features
Enter choice for
PI Reference
1
Analog In 1
7-0
Process PI
Go to 7-1 (Auto
Restart)
7-1
Start-Up
7.Appl Features
Enable Flying
Start?
<Yes>
No
Start-Up
7.Appl Features
Set Auto Restart
Tries to Zero to
disable the
function.
Auto
Restart
Flying
Start
7-2
7-3
Start-Up
7.Appl Features
Enter choice for
PI Feedback
1
Analog In 1
7-4
7-5
Start-Up
7.Appl Features
Enter value for
PI Setpoint
50.0%
xx.x < yy.y
7-6
Start-Up
7.Appl Features
Enter value for
PI Upper Limit
60.0 Hz
xx.x < yy.y
7-7
Start-Up
8.Appl Features
Enter value for
PI Lower Limit
-60.0 Hz
xx.x < yy.y
7-8
Start-Up
8.Appl Features
Enter value for
PI Integral Time
2.0 Secs
x.x < y.y
7-2
Start-Up
8.Appl Features
Select other PI
options in
parameter #124.
Go to 0-1 (8. Done/
Exit)
No
Ye s
Start-Up
7.Appl Features
Enter value for
Flying StartGain
4000
xxx < yyyy
Start-Up
7.Appl Features
Enter value for
Auto Rstrt Tries
0
xxx < yyyy
Auto Restart
tries = 0?
Ye s
No
Start-Up
7.Appl Features
Enter value for
Auto Rstrt Delay
1.0 Secs
xx.x < yy.y
7-3
7-4
7-6
7-5
Go to 7-1 (Done)

Allen-Bradley PowerFlex 70 Specifications

General

Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Frequency Range	0 - 400 Hz
Humidity	5% to 95% non-condensing
Output Voltage	0 to Input Voltage
Control Methods	Sensorless Vector Control
Communications	Ethernet/IP, DeviceNet, ControlNet
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Enclosure Rating	IP20, NEMA Type 1
