PowerFlex 700 Technical Data
26 20B-TD001F-EN-P

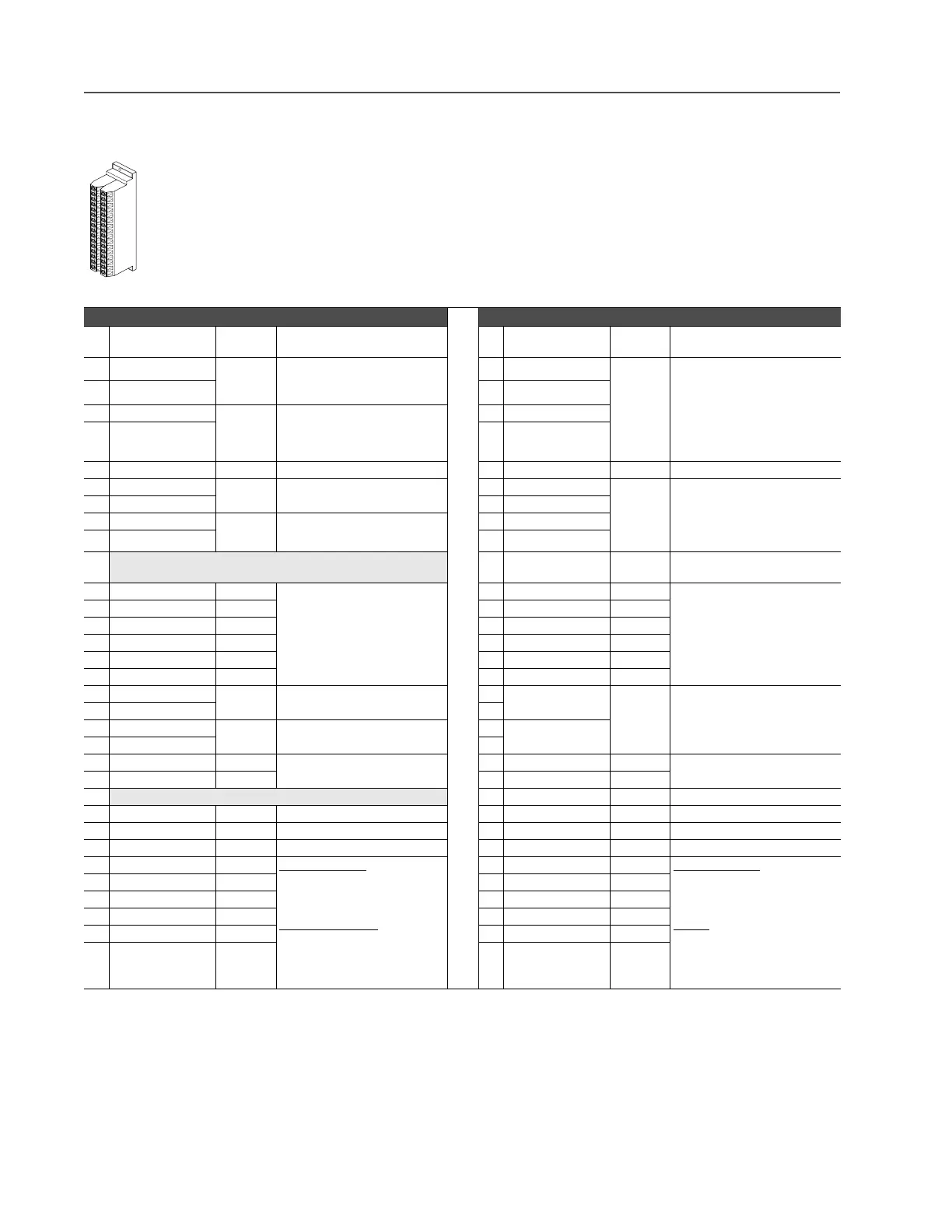

Control Terminals
Frames 0…6
Standard Control Option (Frames 0…6) Vector Control Option (Frames 0…6)
No. Signal
Factory
Default Description No. Signal
Factory
Default Description
1 Anlg Volts In 1 (–)
(3)
(3)
These inputs/outputs are dependant on a number of parameters. Refer to the PowerFlex 700 User Manual for details.
Isolated
(5)
, bipolar, differential,
±10V, 11 bit & sign, 88k ohm input
impedance.
(5)
Differential Isolation - External source must be maintained at less than 160V with respect to PE. Input provides high common mode immunity.
1 Analog In 1 (–)
(8)
(8)
Important: 0-20mA operation requires a jumper at terminals 17 & 18 (or 19 & 20). Drive damage may occur if jumper is not installed.
(3)
Isolated
(5)
, bipolar, differential,
±10V/0-20mA, 11 bit & sign. For 0-
20 mA, a jumper must be installed at
terminals 17 & 18 (or 19 & 20).
88k ohm input impedance when
configured for voltage and 95.3 ohm
for current.
2 Anlg Volts In 1 (+) 2 Analog In 1 (+)
(8)
3 Anlg Volts In 2 (–)
(3)
Isolated
(6)
, bipolar, differential,
±10V, 11 bit & sign, 88k ohm input
impedance.
(6)
Differential Isolation - External source must be less than 10V with respect to PE.
3 Analog In 2 (–)
(8)
4 Anlg Volts In 2 (+) 4 Analog In 2 (+)
(8)
5 Pot Common – For (+) and (–) 10V pot references. 5 Pot Common – For (+) and (–) 10V pot references.
6 Anlg Volts Out 1 (–)
(3)
,
(4)
(4)
Anlg Out 1 is one output that can be configured for volts or current.
Bipolar, ±10V, 11 bit & sign, 2k ohm
minimum load.
6 Analog Out 1 (–)
(3)
Single-ended bipolar (current output
is not bipolar), ±10V/0-20mA, 11 bit
& sign, voltage mode - limit current
to 5 mA. Current mode - max. load
resistance is 400 ohms.
7 Anlg Volts Out 1 (+) 7 Analog Out 1 (+)
8 Anlg Current Out 1 (–)
(3)
,
(4)
4-20mA, 11 bit & sign, 400 ohm
maximum load.
8 Analog Out 2 (–)
9 Anlg Current Out 1 (+) 9 Analog Out 2 (+)
10
Reserved for Future Use 10 HW PTC Input 1 – 1.8k ohm PTC, Internal 3.32k ohm
pull-up resistor
11 Digital Out 1 – N.C.
(1)
(1)
Contacts in unpowered state. Any relay programmed as Fault or Alarm will energize (pick up) when power is applied to drive and deenergize (drop out) when a fault or alarm exists. Relays
selected for other functions will energize only when that condition exists and will deenergize when condition is removed.
Fault Max. Resistive Load:
240V AC/30V DC – 1200VA, 150W
Max. Current: 5A, Min. Load: 10mA
Max. Inductive Load:
240V AC/30V DC – 840VA, 105W
Max. Current: 3.5A, Min. Load: 10mA
11 Digital Out 1 – N.C.
(1)
Fault Max. Resistive Load:
240V AC/30V DC – 1200VA, 150W
Max. Current: 5A, Min. Load: 10mA
Max. Inductive Load:
240V AC/30V DC – 840VA, 105W
Max. Current: 3.5A, Min. Load: 10mA
12 Digital Out 1 Common 12 Digital Out 1 Common
13 Digital Out 1 – N.O.
(1)
NOT Fault 13 Digital Out 1 – N.O.
(1)
NOT Fault
14 Digital Out 2 – N.C.
(1)
NOT Run 14 Digital Out 2 – N.C.
(1)
NOT Run
15 Digital Out 2 Common 15 Digital Out 2/3 Com.
16 Digital Out 2 – N.O.
(1)
Run 16 Digital Out 3 – N.O.
(1)
Run
17 Anlg Current In 1 (–)
(3)
Isolated
(5)
, 4-20mA , 11 bit & sign,
124 ohm input
impedance.
17 Current In Jumper
(8)
–
Analog In 1
Placing a jumper across terminals
17 & 18 (or 19 & 20) will configure
that analog input for current.
18 Anlg Current In 1 (+) 18
19 Anlg Current In 2 (–)
(3)
Isolated
(6)
, 4-20mA, 11 bit & sign,
124 ohm input impedance.
19 Current In Jumper
(8)
–
Analog In 2
20 Anlg Current In 2 (+) 20
21 –10V Pot Reference – 2k ohm minimum. 21 –10V Pot Reference – 2k ohm minimum load.
22 +10V Pot Reference – 22 +10V Pot Reference –
23
Reserved for Future Use 23 HW PTC Input 2 – See “10” above
24 +24VDC
(7)
– Drive supplied logic input power.
(7)
(7)
150mA maximum Load. Not present on 115V versions.
24 +24VDC
(7)
– Drive supplied logic input power.
(7)
25 Digital In Common – 25 Digital In Common –
26 24V Common
(7)
– Common for internal power supply. 26 24V Common
(7)
– Common for internal power supply.
27 Digital In 1
(2)
(2)
A 10k ohm, 2 watt burden resistor must be installed on each digital input when using a triac type device. The resistor is installed between each digital input and neutral /common.
Stop - CF 115V AC, 50/60 Hz - Opto isolated
Low State: less than 30V AC
High State: greater than 100V AC,
5.0 mA
24V AC/DC, 50/60 Hz
-Opto isolated
Low State: less than 5V AC/DC
High State: greater than 20V AC/DC
11.2 mA
Digital Input Impedance: 35k ohm
27 Digital In 1
(2)
Stop - CF 115V AC, 50/60 Hz - Opto isolated
Low State: less than 30V AC
High State: greater than 100V AC,
5.7 mA
24V DC
- Opto isolated
Low State: less than 5V DC
High State: greater than 20V DC
10.0 mA
Digital Input Impedance: 21k ohm
28 Digital In 2
(2)
Start 28 Digital In 2
(2)
Start
29 Digital In 3
(2)
Auto/Man. 29 Digital In 3
(2)
Auto/Man.
30 Digital In 4
(2)
Speed Sel 1 30 Digital In 4
(2)
Speed Sel 1
31 Digital In 5
(2)
Speed Sel 2 31 Digital In 5
(2)
Speed Sel 2
32 Digital In 6
(2)
Speed Sel 3 32 Digital In 6/Hardware
Enable, see pg. 28
(2)
Speed Sel 3
1
16
32

Allen-Bradley powerflex 700 Specifications

General

Series	PowerFlex 700
Category	AC Drive
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC
Enclosure	Type 1
Control Method	Sensorless Vector
Communication	EtherNet/IP, ControlNet, DeviceNet, PROFIBUS DP, Modbus
