Allen-Bradley PowerFlex 755 IP00 User Manual

Rockwell Automation Publication 750-IN020D-EN-P - May 2017 49
PowerFlex 755 IP00, NEMA/UL Open Type Drive

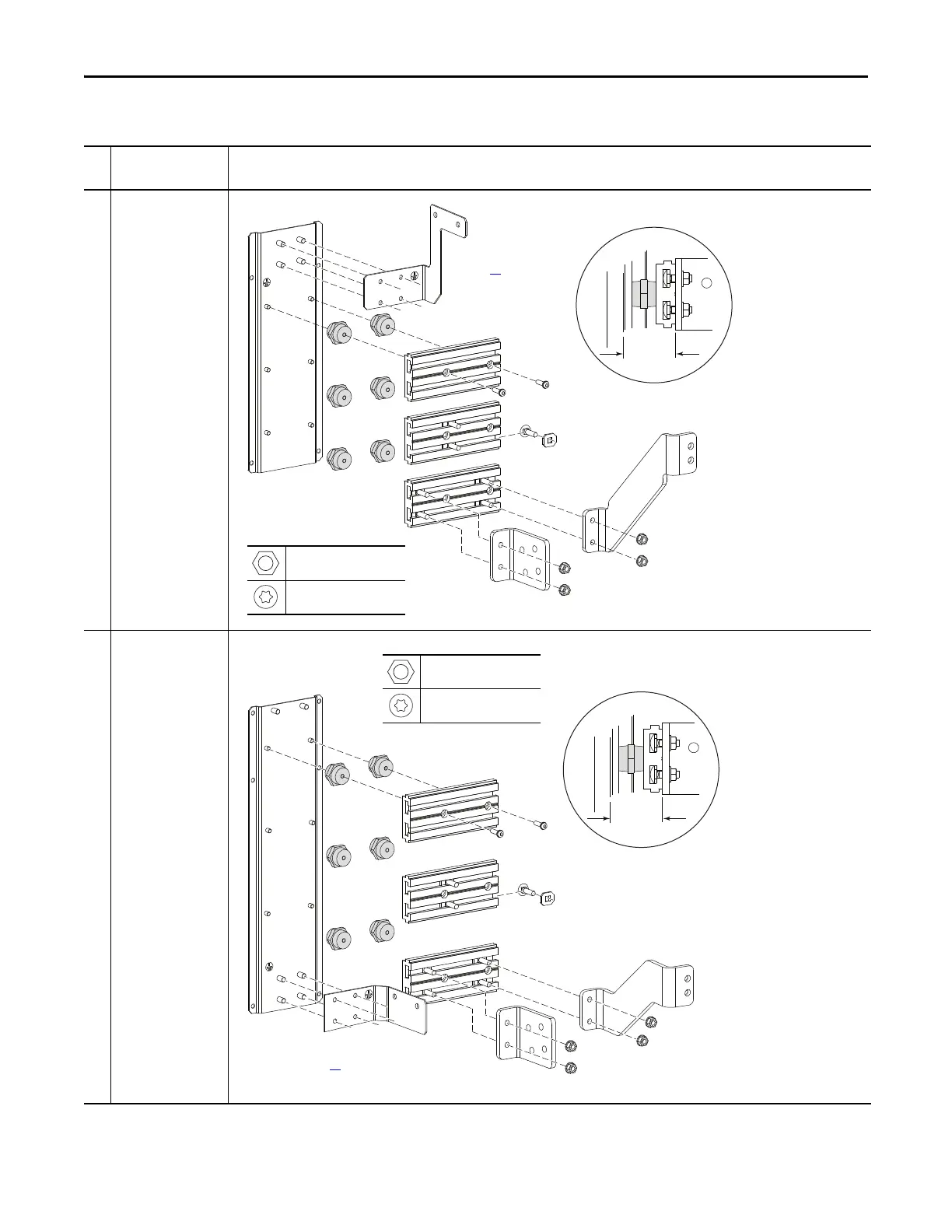

Kit Installation Guidelines
Frame
Kit Steps
8 Converter AC Input Field
Termination
20-750-BUS2-F8
8 Inverter AC Output Field
Termination
20-750-BUS3-F8
PE
73.50
(2.894)
PE
x 12
Movable L-bracket
Side Detail
Ground Bond Strap
(see page 22
for hardware
and torque requirements)
M10
37.9 N•m (336 lb•in)
T40 - M8
9.0 N•m (80 lb•in)
PE
PE
73.50
(2.894)
x 12
Movable L-bracket
Side Detail
Ground Bond Strap
(see page 22
for hardware
and torque requirements)
M10
37.9 N•m (336 lb•in)
T40 - M8
9.0 N•m (80 lb•in)
