Allen-Bradley PowerFlex 755 IP00 User Manual

50 Rockwell Automation Publication 750-IN020D-EN-P - May 2017
PowerFlex 755 IP00, NEMA/UL Open Type Drive

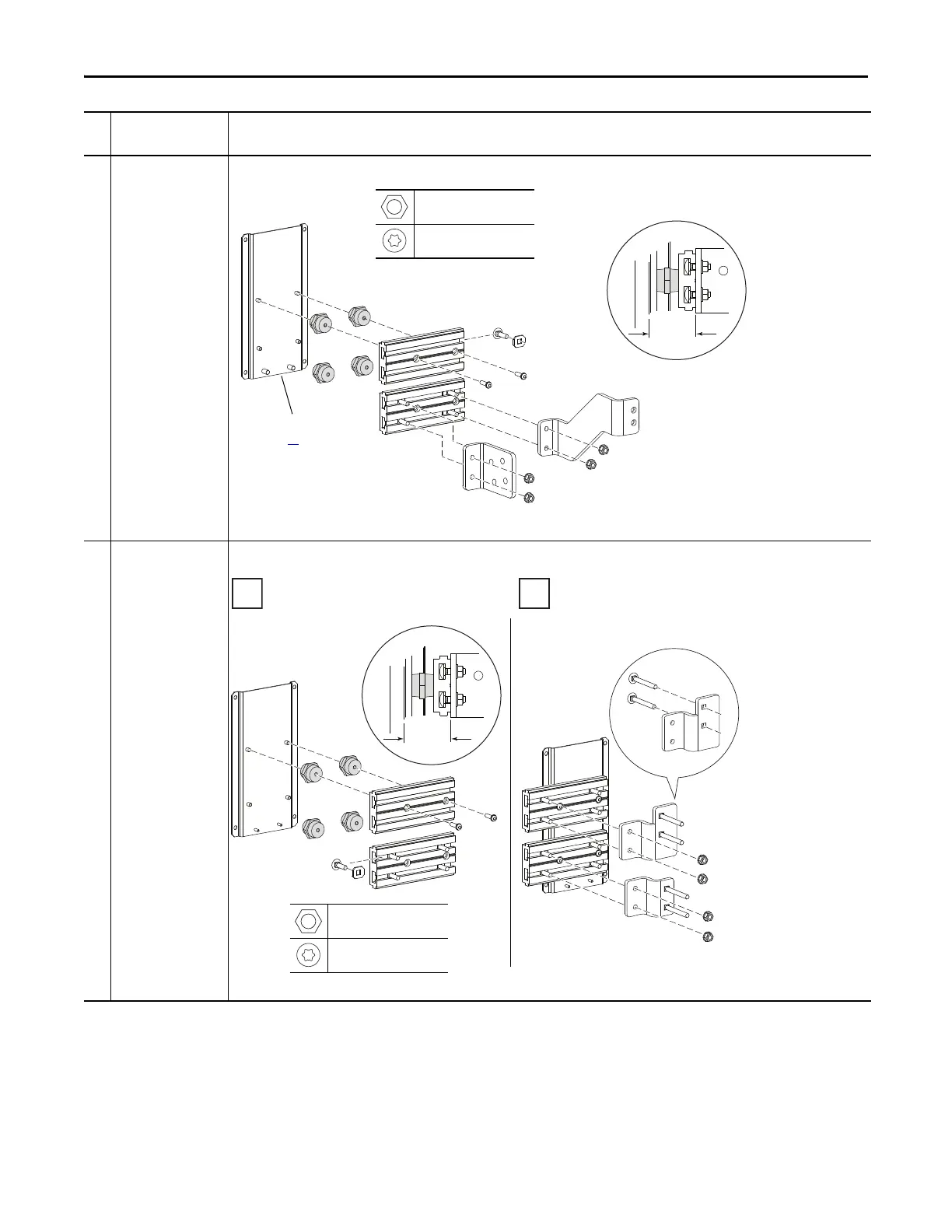

8 Inverter DC Bus Field
Termination
20-750-BUS4-F8
8 DC Input for Common
Bus Precharge Field
Termination
20-750-BUS5-F8
Frame
Kit Steps
73.50
(2.894)
x 8
Movable L-bracket
Side Detail
Ground Bond Location
(see page 22
for hardware
and torque requirements)
M10
37.9 N•m (336 lb•in)
T40 - M8
9.0 N•m (80 lb•in)
73.50
(2.894)
x 8
1
Side Detail
M10
37.9 N•m (336 lb•in)
T40 - M8
9.0 N•m (80 lb•in)
2
