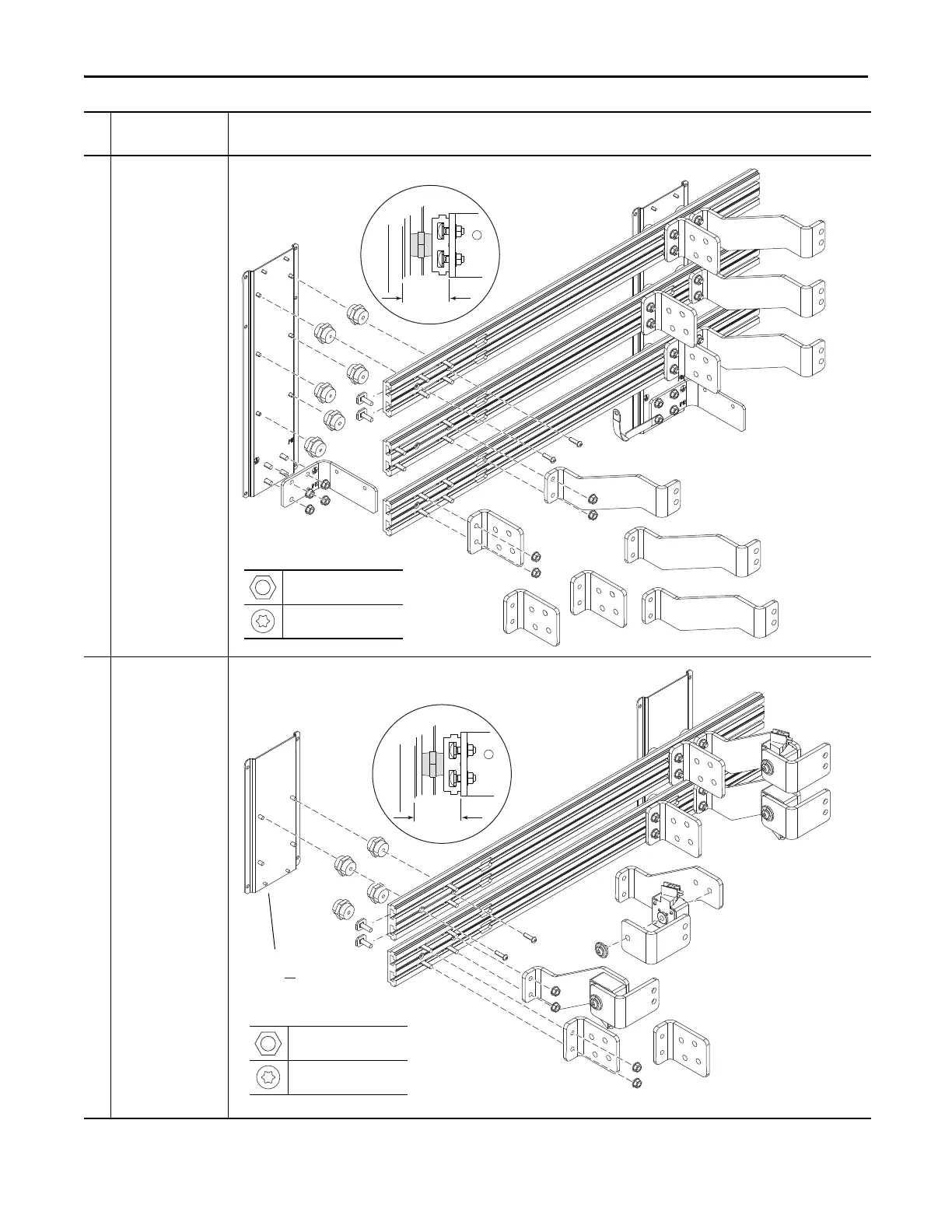

PowerFlex 755 IP00, NEMA/UL Open Type Drive
9 Inverter AC Output Field
Termination
20-750-BUS3-F9
9 Inverter DC Bus Field
Termination
20-750-BUS4-F9
(400/480V)
20-750-BUS6-F9
(600/690V)
Frame
Kit Steps
73.50
(2.894)
M10
37.9 N•m (336 lb•in)
T40 - M8
9.0 N•m (80 lb•in)
73.50
(2.894)
M10
37.9 N•m (336 lb•in)
T40 - M8
9.0 N•m (80 lb•in)
Ground Bond Location
(see page 22
for hardware
and torque requirements)
Physical size of fuses are
different between
400/480V and
600/690V kits.
