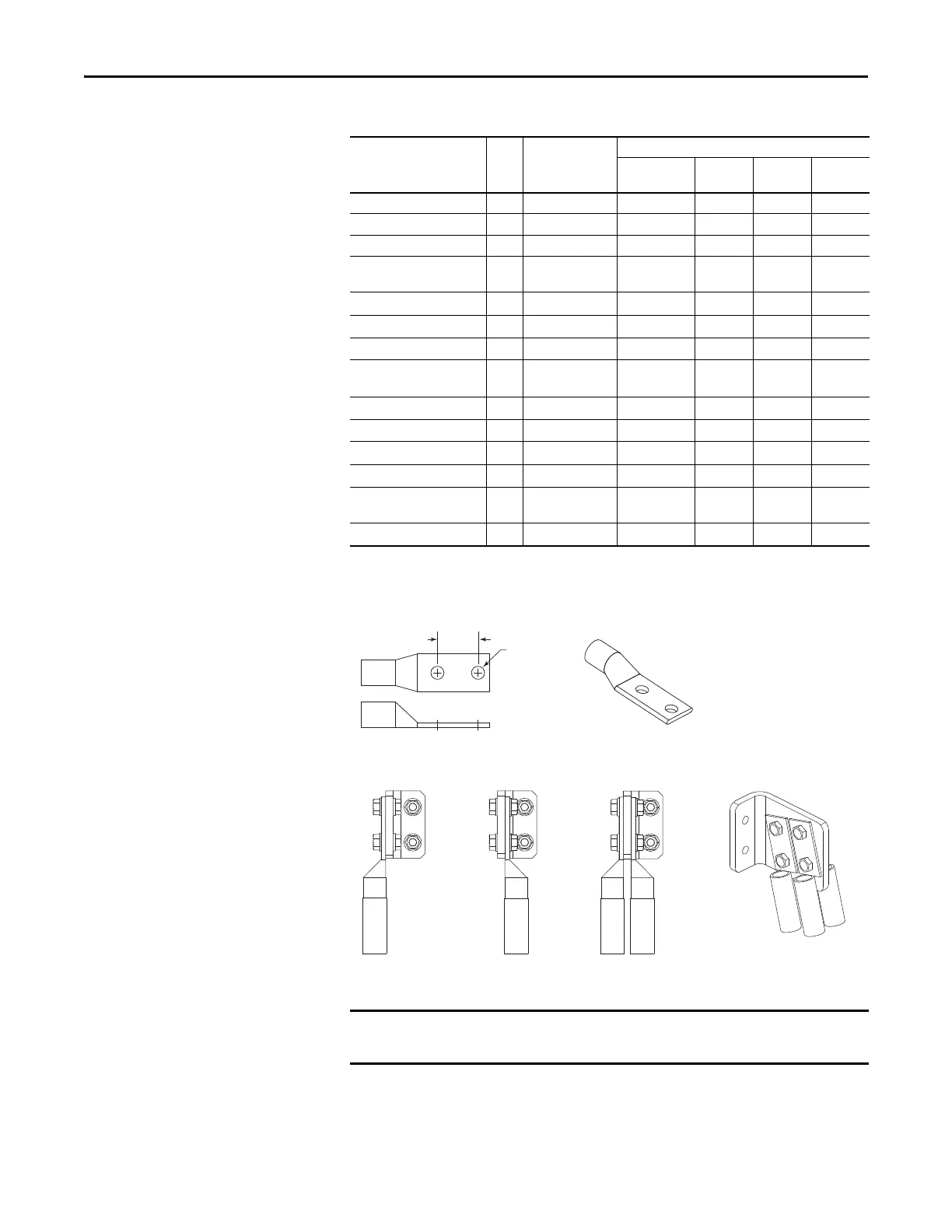

48 Rockwell Automation Publication 750-IN020D-EN-P - May 2017
PowerFlex 755 IP00, NEMA/UL Open Type Drive
Termination Kit Current Rating
UL Listed Barrel Lugs: Approximate Maximum Dimensions
Typical Lug Connection/L-Bracket Options
Termination Kit Frame Catalog Number
Current Rating at Specified Drive Input Voltage
380…400V AC
513…540V DC
480V AC
650V DC
600V AC
810V DC
690V AC
932V DC
Converter (AC Input) 8 20-750-BUS2-F8 819A AC 755A AC 514A AC 499A AC
Inverter (AC Output) 8 20-750-BUS3-F8 832A AC 800A AC 545A AC 530A AC
Inverter (DC Bus) 8 20-750-BUS4-F8 957A DC 882A DC 601A DC 583A DC
DC Input for Common Bus
Precharge
8 20-750-BUS5-F8 957A DC 882A DC 601A DC 583A DC
Converter (AC Input) 9 20-750-BUS2-F9 1638A AC 1510A AC 1028A AC 998A AC
Inverter (AC Output) 9 20-750-BUS3-F9 1664A AC 1600A AC 1090A AC 1060A AC
Inverter (DC Bus - 400/480V) 9 20-750-BUS4-F9 1914A DC 1764A DC N/A
(1)
N/A
(1)
DC Input for Common Bus
Precharge
9 20-750-BUS5-F9 1914A DC 1764A DC 1202A DC 1166A DC
Inverter (DC Bus - 600/690V) 9 20-750-BUS6-F9 N/A
(1)
(1) N/A - not to be used in this configuration.
N/A
(1)
1202A DC 1166A DC
Converter (AC Input) 10 20-750-BUS2-F10 2457A AC 2265A AC 1542A AC 1497A AC
Inverter (AC Output) 10 20-750-BUS3-F10 2496A AC 2400A AC 1635A AC 1590A AC
Inverter (DC Bus - 400/480V) 10 20-750-BUS4-F10 2871A DC 2646A DC N/A
(1)
N/A
(1)
DC Input for Common Bus
Precharge
10 20-750-BUS5-F10 2871A DC 2646A DC 1803A DC 1749A DC
Inverter (DC Bus - 600/690V) 10 20-750-BUS6-F10 N/A
(1)
N/A
(1)
1803A DC 1749A DC
IMPORTANT
Verify that all lug fasteners and L-brackets are properly torqued to 37.9 N•m
(336 lb•in). Torque down or remove any unused L-brackets.
44.5
(1.75)
12.7 (0.5) Dia.
Left Side Right Side Both Sides
Three Lugs Total on Both Sides
