Allen-Bradley PowerFlex 755 IP00 User Manual

6 Rockwell Automation Publication 750-IN020D-EN-P - May 2017
PowerFlex 755 IP00, NEMA/UL Open Type Drive
Installation Overview
AC Input Drives

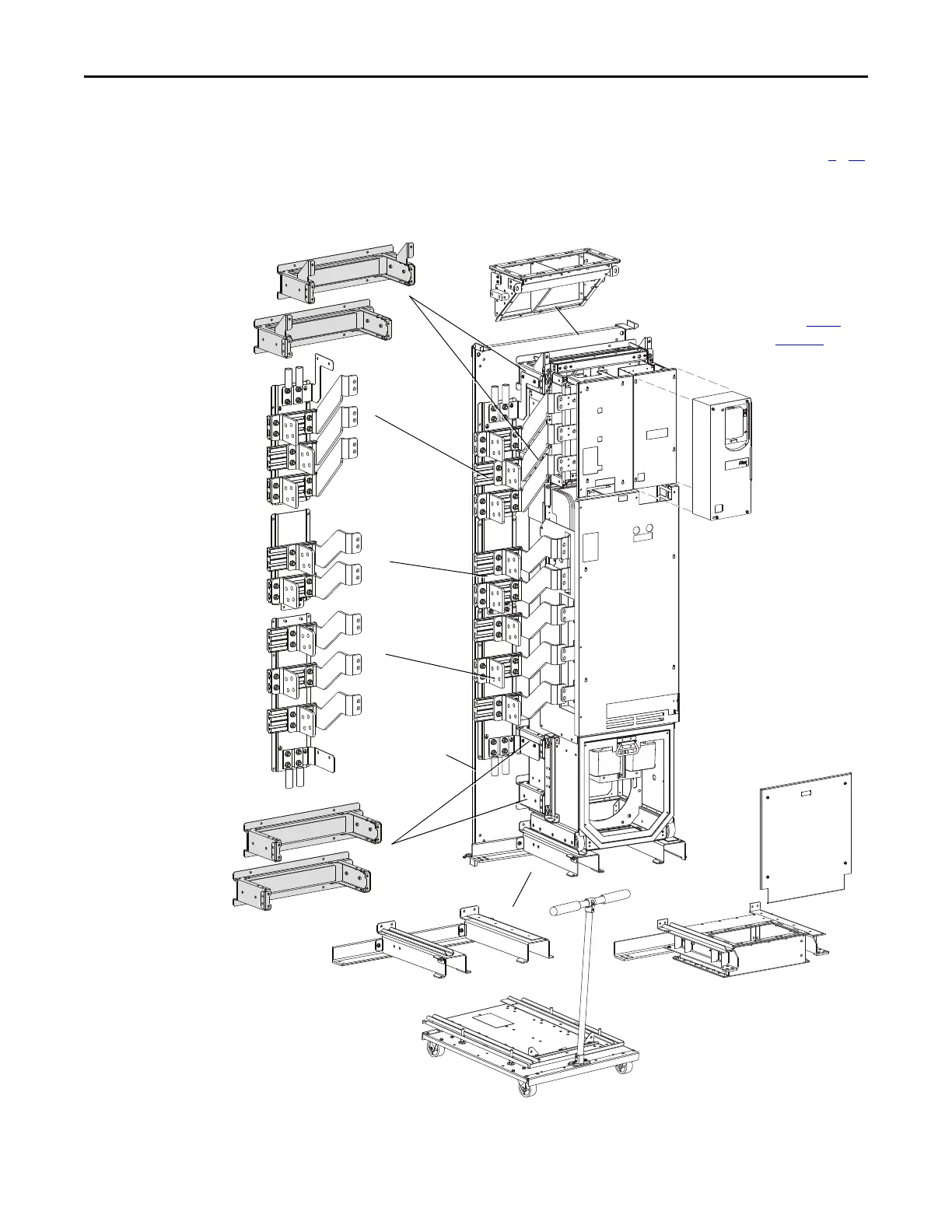

A typical IP00 installation for an AC input drive is shown below. See pages 8…10
for available kits and ratings.
PE
PE
PE
PE
PE
PE
R/L1
S/L2
T/L3
DC (+)
DC (+)
DC (-)
DC (-)
DC
(+)
DC
(-)
U/T1
V/T2
W/T3
PE
PE
Power
755
Converter (AC Input)
Termination Kit
Sub Panel
(for reference only)
IP00 Frame 8 Drive Assembly
(Inverter & Converter)
Mounting Kit
Inverter (DC Bus)
Termination Kit
Optional for a Frame 8
equivalent. Use only if the
application requires.
Inverter (AC Output)
Termination Kit
Mounting Kit
Outlet Ducting Kit
Floor Mounting
Kit
Roll-out Cart
Bottom Duct Kit
Bottom inlet duct mounts inside
of the Floor Mounting kit. Both
kits are required for inlet ducting
from the bottom.
Control Pod
For drive mounting, see page 42
.
See publication 750-IN015
for
remote mounting information.
