PowerFlex 755 IP00, NEMA/UL Open Type Drive
Installing the Control Pod in
the Drive
The following steps will guide you through installation of the Control Pod in the
drive. To mount the pod in a remote location up to 23 m (75 ft) from the drive,
order the Remote Mount kit (catalog number 20-750-RPD1-F8).

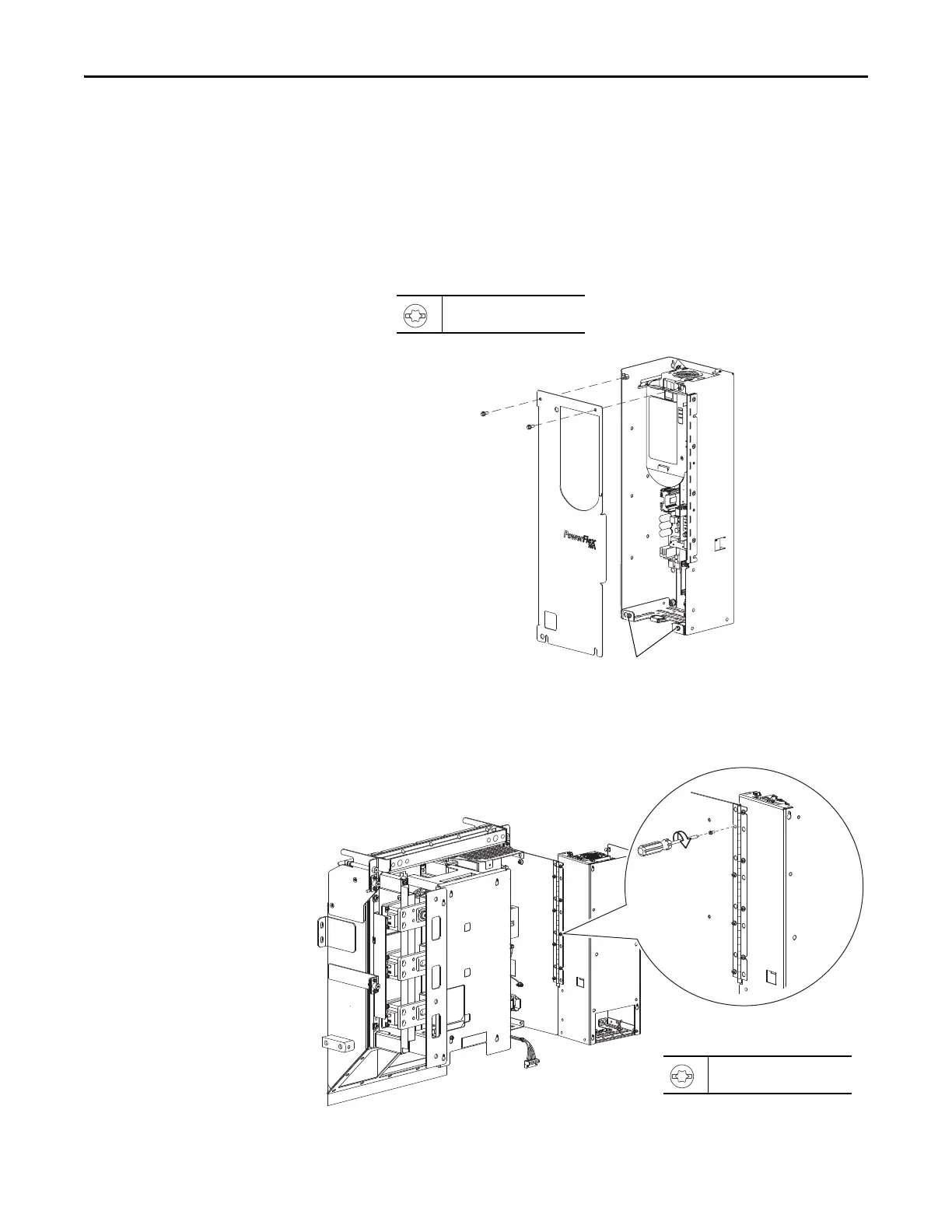

1. Loosen, but do not remove, the bottom two M4 x 12 mm slotted
hexalobular screws that secure the control pod cover to the assembly.
2. Remove the top two M4 x 12 mm slotted hexalobular screws that secure
the cover to the assembly and remove the cover.
3. Secure the Control Pod hinge to the converter control panel right side wall
with four M4 x 12 mm screws.
T20 or F - 6.4 mm (0.25 in.)
1.8 N•m (16 lb•in)
Loosen
x 4
T20 or F - 6.4 mm (0.25 in.)
1.8 N•m (16 lb•in)
