64 Rockwell Automation Publication 750-IN020D-EN-P - May 2017
PowerFlex 755 IP00, NEMA/UL Open Type Drive

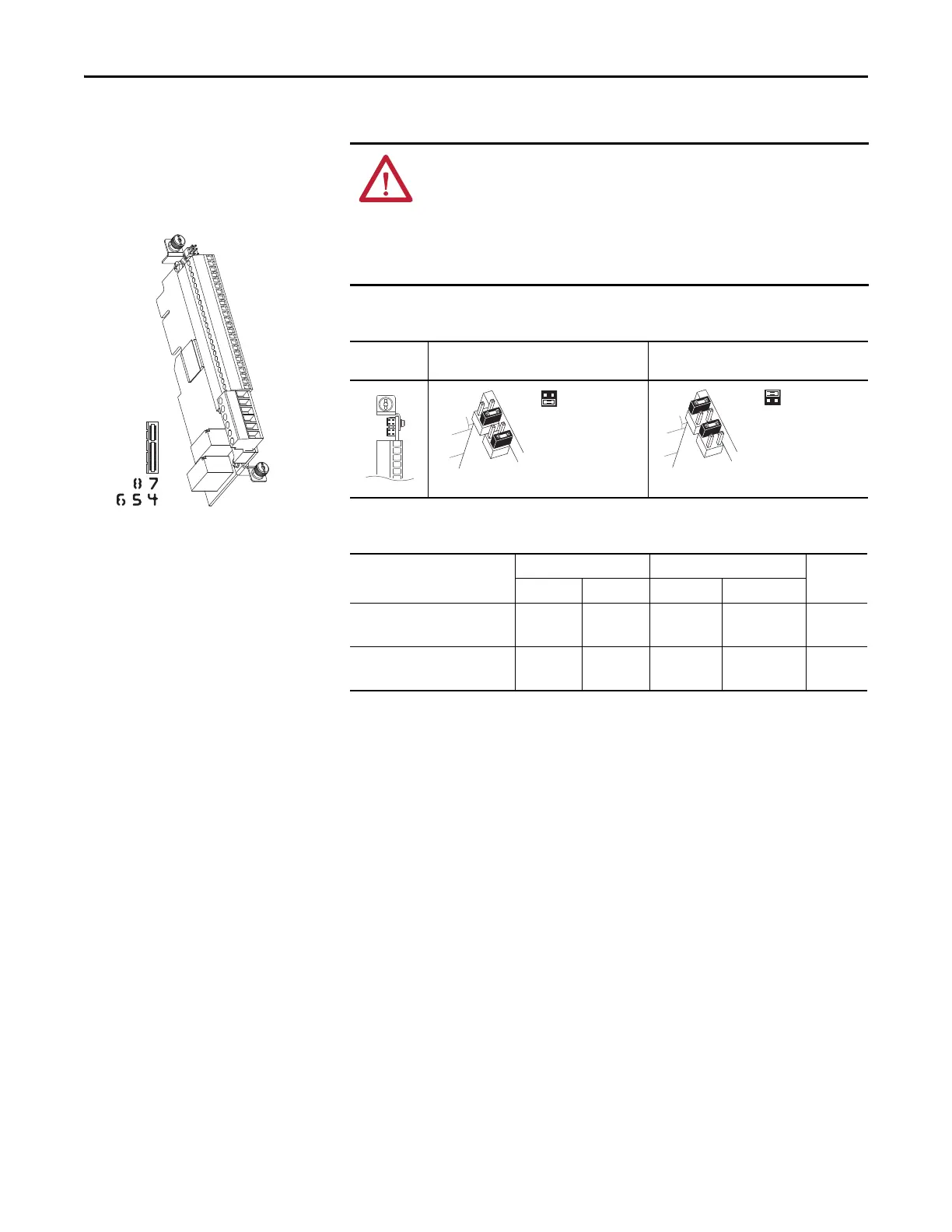

I/O Module
Input Mode Jumpers
I/O Option Module Terminal Block Specifications
20-750-2262C-2R (24 Volts DC)
20-750-2263C-1R2T (24 Volts DC)
20-750-2262D-2R (120 Volts AC)
ATTENTION: Risk of equipment damage exists. Ensure that the correct voltage
is applied to the I/O Module digital inputs. See the I/O Module catalog number
to determine the voltage rating.
• 20-750-2262C-2R is rated 24 Volts DC
• 20-750-2262C-1R2T is rated 24 Volts DC
• 20-750-2262D-2R is rated 120 Volts AC
Jumper
Position Voltage Mode Current Mode
Name
Wire Size Range Torque
Strip
LengthMaximum Minimum Maximum Recommended
I/O Module TB1 2.5 mm
2
(14 AWG)
0.3 mm
2
(28 AWG)
0.25 N•m
(2.2 lb•in)
0.2 N•m
(1.8 lb•in)
6 mm
(0.24 in.)
I/O Module TB2 4.0 mm
2
(12 AWG)
0.25 mm
2
(24 AWG)
0.5 N•m
(4.4 lb•in)
0.4 N•m
(3.5 lb•in)
7 mm
(0.28 in.)
Ai0
Ai1
Ai0
Ai1
