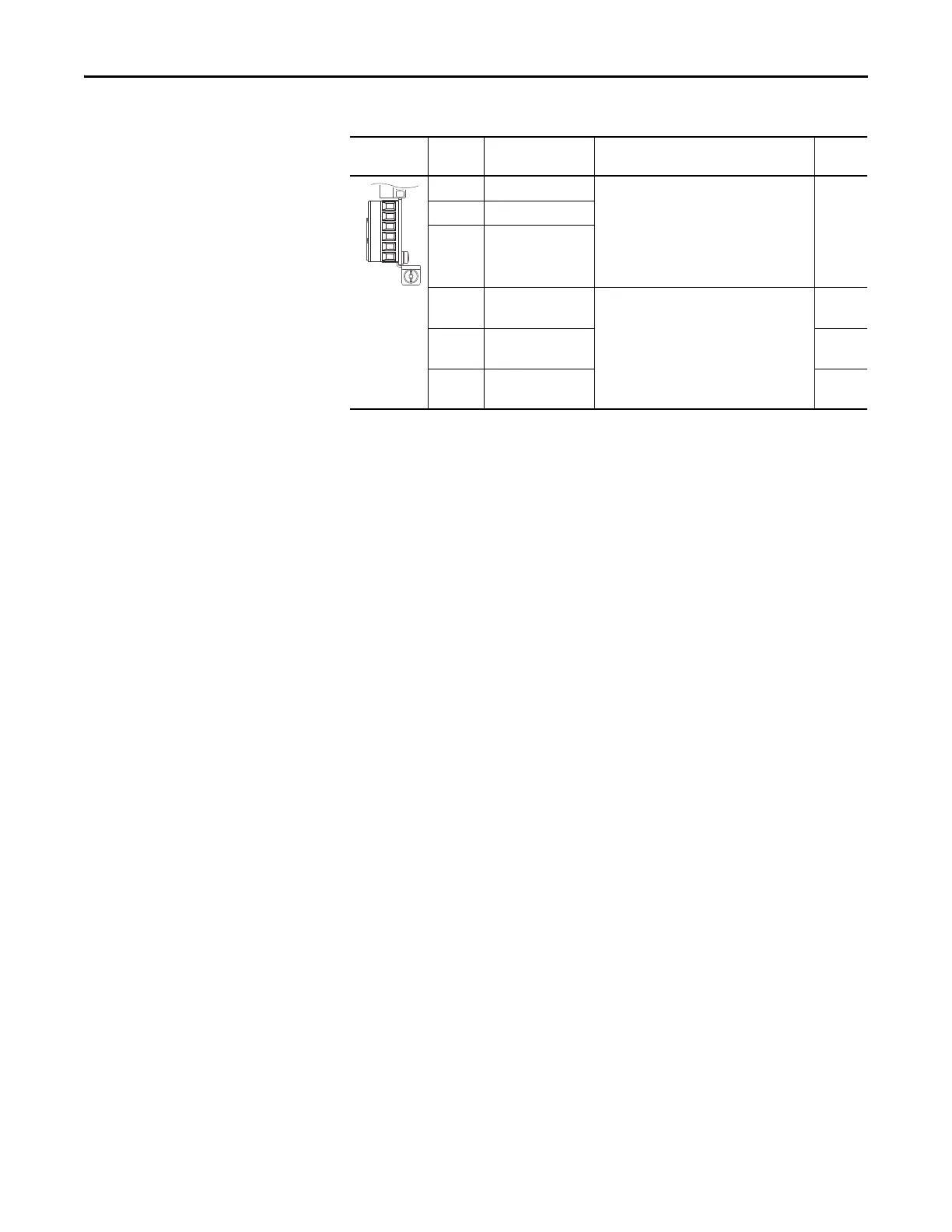

PowerFlex 755 IP00, NEMA/UL Open Type Drive
TB2 Terminal Designations (1 Relay and 2 Transistor Outputs: IR2T)
Relay Out Terminal Name Description
Related
Param
R0NO Relay 0 N.O. Relay Normally Open contact output:
240V AC, 24V DC, 2 A max.
General Purpose (Inductive) / Resistive
Relay Normally Closed contact output:
240V AC, 24V DC, 2 A max.
Resistive Only
10, 100,
101, 105,
106
on Port X
R0C Relay 0 Common
R0NC Relay 0 N.C.
T0 Transistor Output 0 Transistor output
Rating: 24V DC = 1 A max.
24V DC = 0.4 A Max for U.L. applications
Resistive
20
on Port X
TC Transistor Output
Common
T1 Transistor Output 1 30
on Port X
R0NO
R0C
R0NC
T0
TC
T1
