Allen-Bradley PowerFlex 755 Quick Start

Rockwell Automation Publication 750-QS001A-EN-P - March 2015 13
Step 3: Power Up, Configure the Drive, and Spin the Motor Shaft
Drive Setup
Follow these steps to set up each of your drives.
Enter Motor Nameplate Data

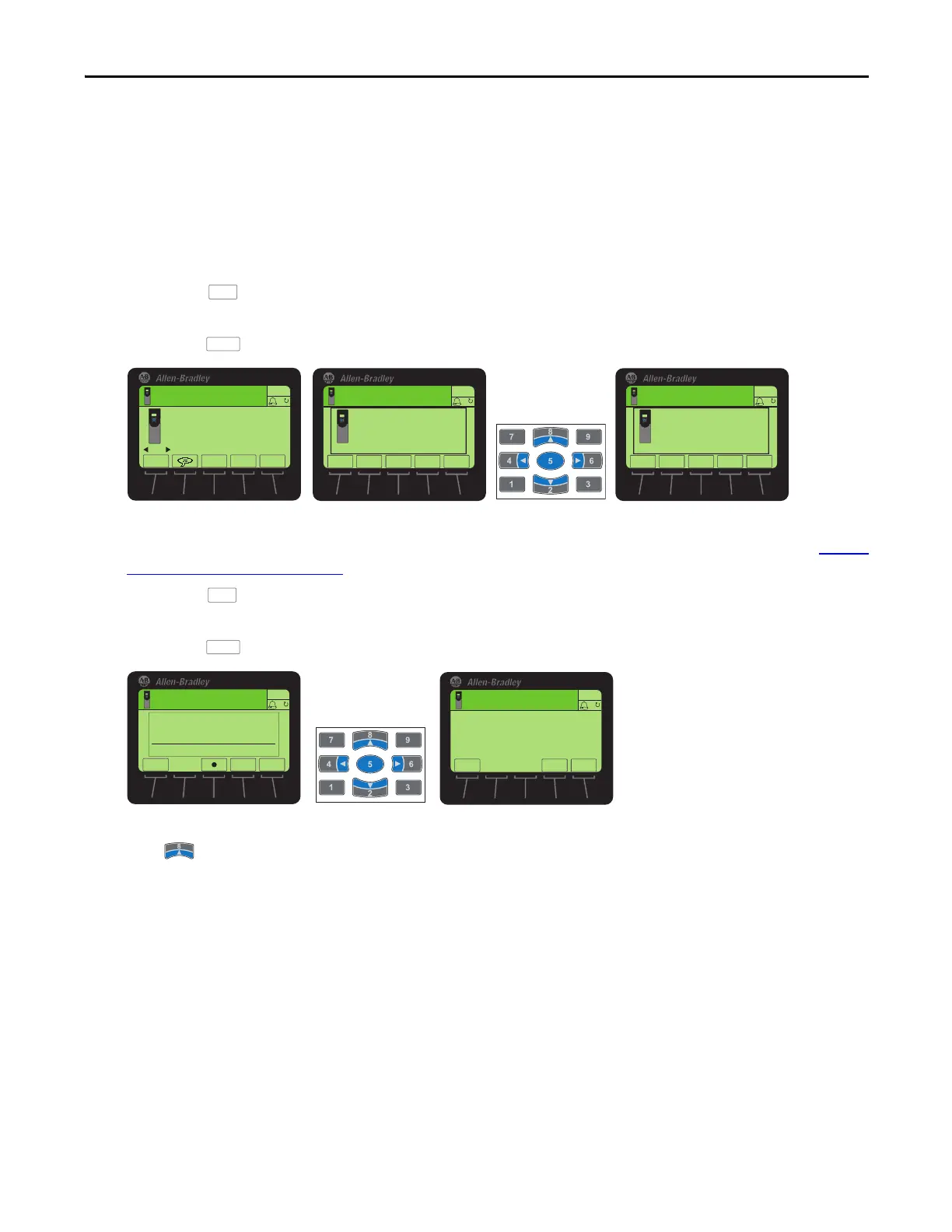

1. From the Main Powerup Screen, access parameter 25 [Motor NP Volts].
• Press the soft key.
• Enter 25 using the numeric keys.
• Press the soft key.
2. Use the numeric value from the Motor Nameplate data gather in Step 1: Gather Required Information under
Record
Motor Nameplate Data on page 7 to verify the value on the screen. If a change is required,
• Press the soft key.
• Enter the nameplate voltage numeric value using the keypad.
• Press the soft key.
3. Press on the keypad to advance to the next parameter num
b
er, and continue to enter the remaining motor data
gathered in Step 1: Gather Required Information in this order.
• Parameter 26 [Motor NP FLA]
• Parameter 27 [Motor NP Hertz]
• Parameter 28 [Motor NP RPM]
PAR#
ENTER
00
Stopped
0.000 Hz
AUTO
PowerFlex 753
480V 4.2A
20F...B4P2
ESC REF TEXT
F
PAR#
PowerFlex 753 Powerup Screen
00
Stopped
0.000 Hz
AUTO
PowerFlex 753
Jump to Param #
ESC
F
ENTER
▲▼

Parameter Screen
00
Stopped
0.000 Hz
AUTO
PowerFlex 753
Jump to Param #
25
ESC
F
ENTER
▲▼

Parameter Screen
Keypad
EDIT
ENTER
Stopped
0.000 Hz
AUTO
Port 00 Dev Param 25
Motor NP Volts
480.00 VAC
ESC EDIT
F
PAR#
Edit Motor NP Volts Screen
Keypad
E S C ENTER
Stopped
0.000 Hz
AUTO
F

Edit Mtr NP Volts
480.00 VAC
0.10 << 552
Motor NP Volts Screen

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
