Allen-Bradley PowerFlex 755 Quick Start

74 Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Reference Section
Analog Output Wiring

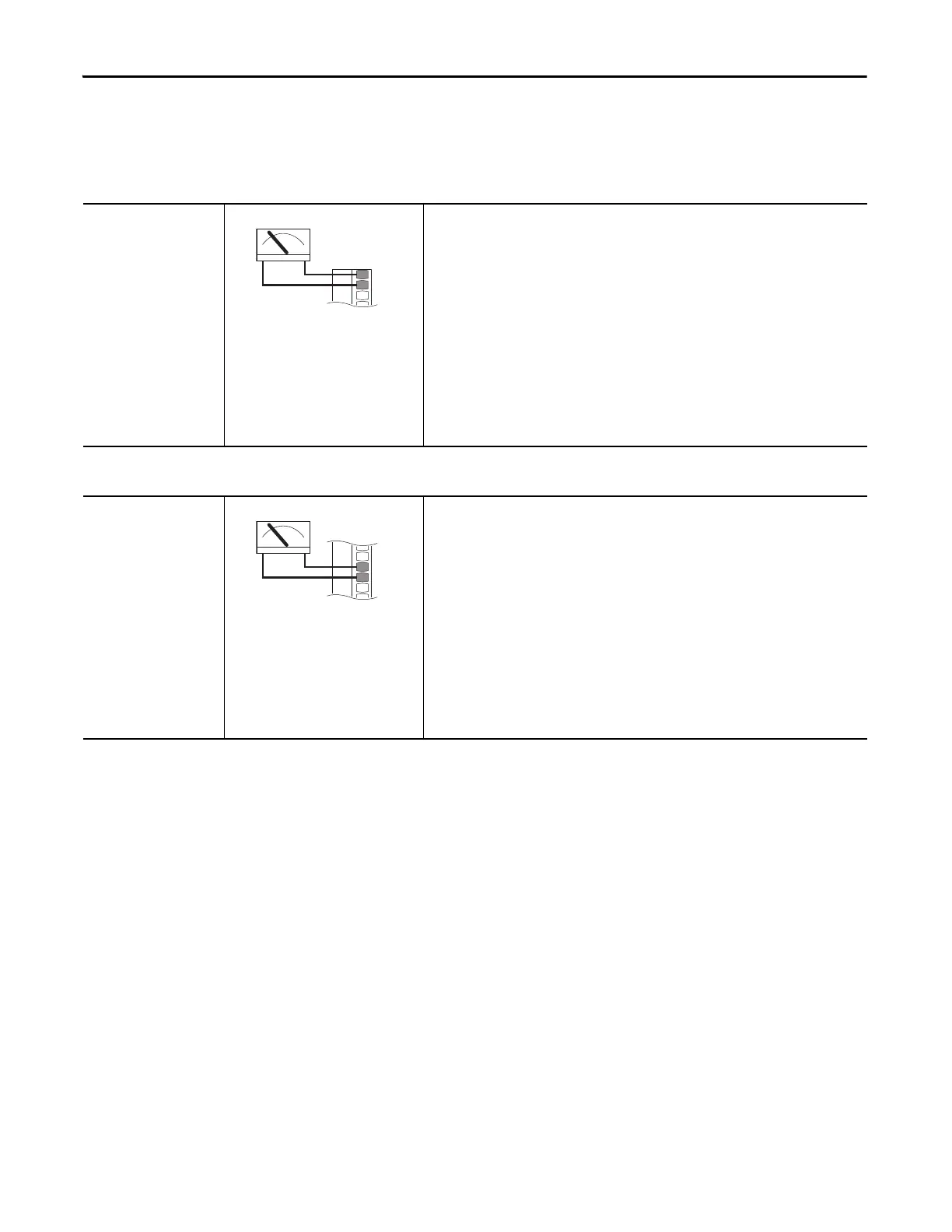

Table 50 - 753 Main Control Board TB1 Analog Output Wiring
Analog Voltage Output
±10V, 0…20 mA Bipolar
+10V Unipolar
753 Main Control Board TB1
Configuration
Port 0: P270 [Anlg Out Type], bit 0 = 0
Set Selection
Port 0: P275 [Anlg Out0 Sel] = Port 0: P3 [Mtr Vel Fdbk]
Adjusting Scale
Port 0: P278 [Anlg Out0 DataHi] = 60 Hz
Port 0: P279 [Anlg Out0 DataLo] = 0 Hz
Port 0: P280 [Anlg Out0 Hi] = 10V/20 mA
Port 0: P281 [Anlg Out0 Lo] = 0V/0 mA
View Results
Port 0: P277 [Anlg Out0 Data]
Port 0: P282 [Anlg Out0 Val]
Ao0–
Ao0+
+–
Table 51 - 750-Series I/O Module TB1 Analog Output Wiring
Analog Voltage Output
±10V, 0…20 mA Bipolar
+10V Unipolar
750-Series I/O Module TB1
Configuration
Port 4 (or port where your I/O module is installed): P70 [Anlg Out Type], bit 0 = 0
Set Selection
Port 4 (or port where your I/O module is installed): P75 [Anlg Out0 Sel] = Port 0: P3 [Mtr Vel Fdbk]
Adjusting Scale
Port 4 (or port where your I/O module is installed): P78 [Anlg Out0 DataHi] = 60 Hz
Port 4 (or port where your I/O module is installed): P79 [Anlg Out0 DataLo] = 0 Hz
Port 4 (or port where your I/O module is installed): P80 [Anlg Out0 Hi] = 10V/20 mA
Port 4 (or port where your I/O module is installed): P81 [Anlg Out0 Lo] = 0V/0 mA
View Results
Port 4 (or port where your I/O module is installed): P77 [Anlg Out0 Data]
Port 4 (or port where your I/O module is installed): P82 [Anlg Out0 Val]
Ao0–
Ao0+
+–

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
