76 Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Reference Section
Relay Output Wiring

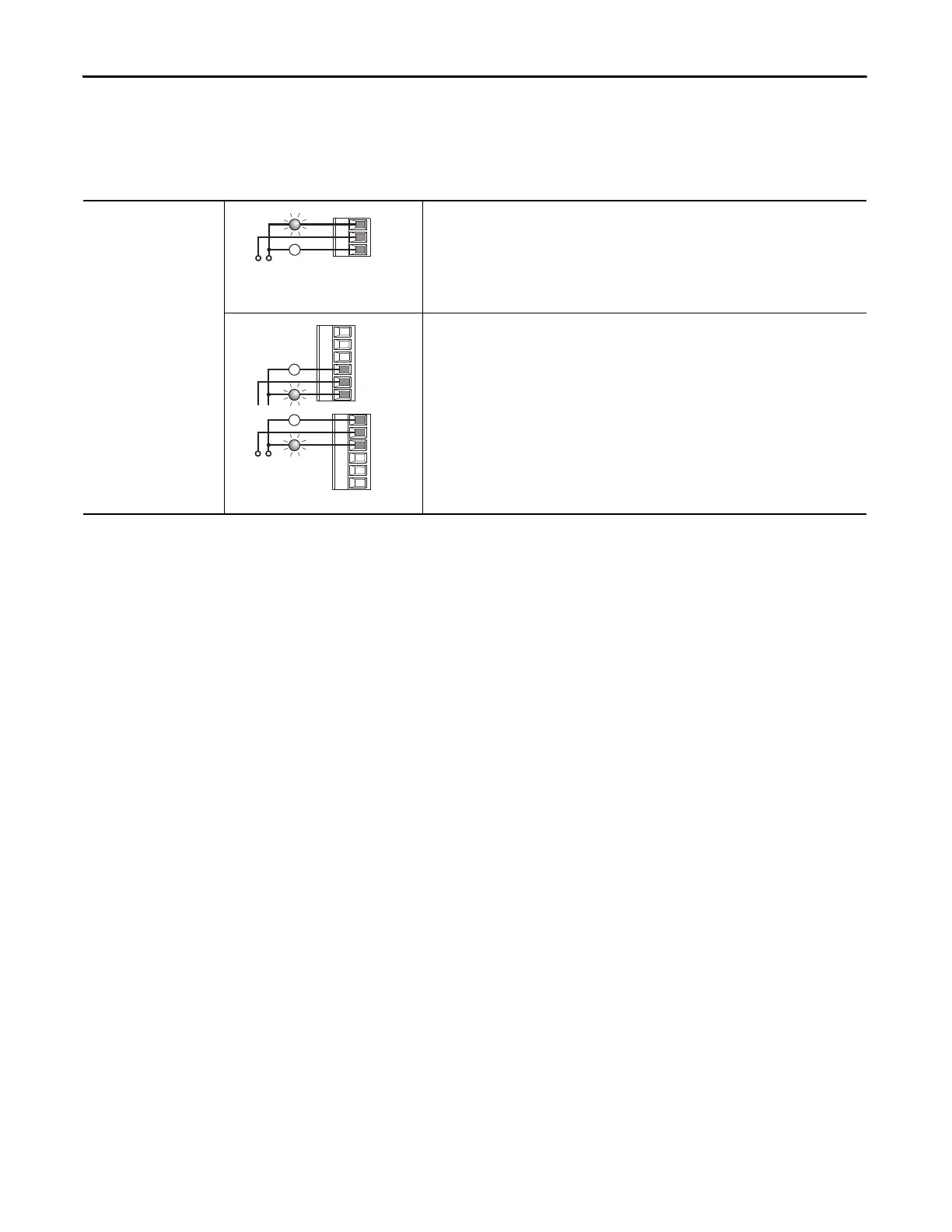

Table 54 - 750-Series Control Board and I/O Module TB1 Relay Output Wiring
Relay Output
External Supply
753 Main Control Board
Set Selection
Port 0: P230 [RO0 Sel] = Port 0: P935 [Drive Status 1], bit 7 = Faulted
View Results
Port 0: P225 [Dig Out Sts]
750-Series I/O Module
Set Selection
Port 4 (or port where your I/O module is installed): P
10 [RO0 Sel] = Port 0: P935 [Drive Status 1],
bit 7= Faulted
View Results
Port 4 (or port where your I/O module is installed): P5 [Dig Out Sts]
R0NC
R0C
R0NO
