Allen-Bradley PowerFlex 755 Quick Start

32 Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Reference Section

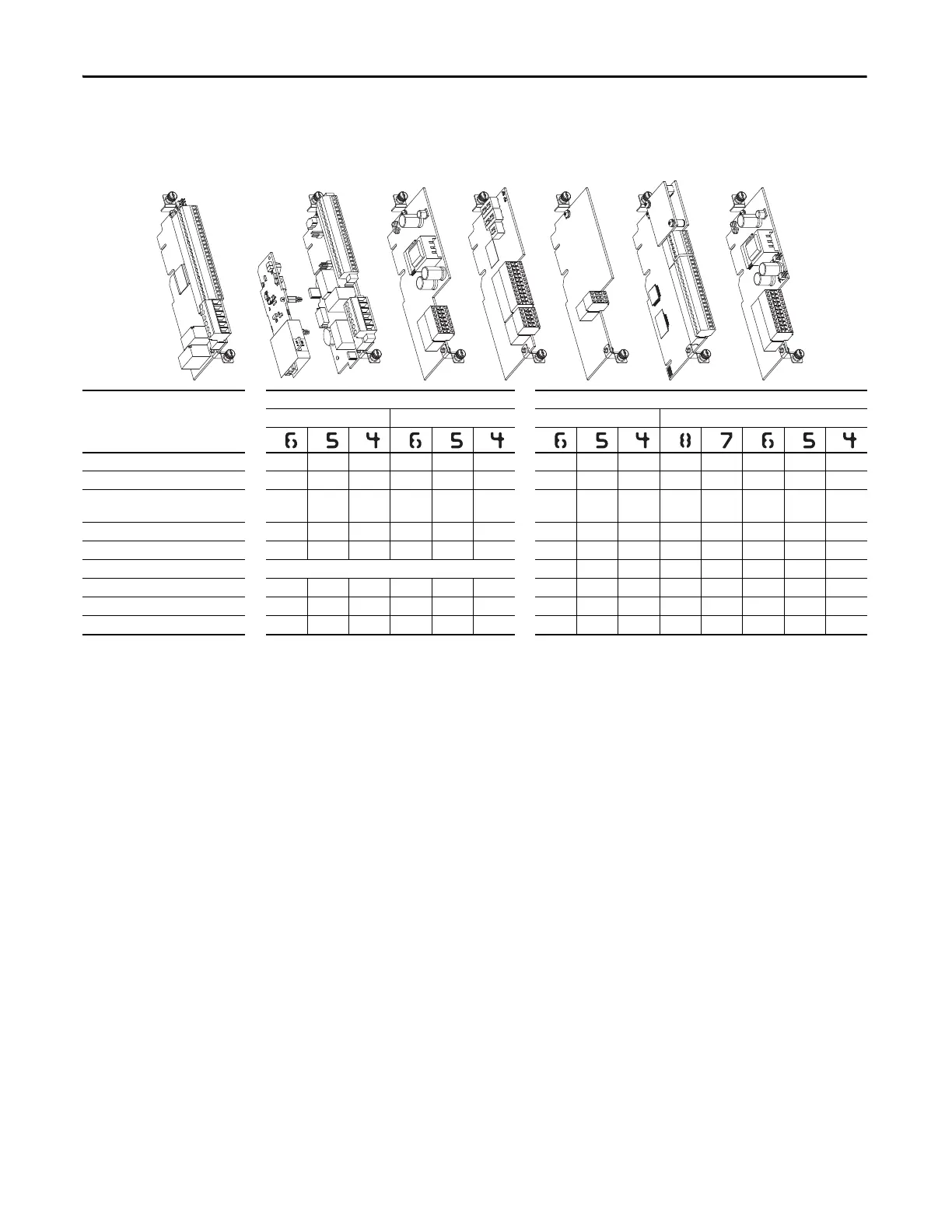

Identify Option Modules and Compatible Ports
20-750-S
20-750-S1
20-750-2262C-2R
20-750-2263C-1R2T
20-750-2262D-2R
20-750-1132C-2R
20-750-1133C-1R2T
20-750-1132D-2R
20-750-ENC-1 20-750-DENC-1
20-750-UFB-1
20-750-ATEX
Option Module
Cat. No. 20-750-
PowerFlex 753 Drives PowerFlex 755 Drives
Frame 1 Ports Frame 2…7 Ports Frame 1 Ports Frame 2…10 Ports
2262C-2R, 2263C-1R2T, 2262D-2R No Yes Ye s Yes Ye s Yes No Yes Ye s Yes Ye s Yes Ye s Yes
1132C-2R, 1133C-1R2T, 1132D-2R No Yes Ye s Yes Ye s Yes No Yes Ye s Yes Ye s Yes Ye s Yes
1132C-2R, 1133C-1R2T, 1132D-2R
with 20-750-ATEX installed
No Yes Ye s No Yes Yes No Yes Ye s No No No Ye s Yes
ENETR Yes Ye s Ye s Yes Ye s Ye s Yes Ye s Ye s No No Ye s Ye s Yes
ENC-1
(1)
No Yes Ye s Yes Ye s Ye s No Ye s Ye s Ye s Ye s Ye s Ye s Ye s
UFB-1
(1)
Not Supported No Ye s Ye s No No Yes Ye s Ye s
S
(1)
Yes Ye s Ye s Yes Ye s Ye s Yes Ye s Ye s Yes Ye s Ye s Ye s Ye s
S1
(1)
Yes Ye s Ye s Yes Ye s Ye s Yes Ye s Ye s No No Ye s Ye s Yes
DENC-1
(1)
No Yes Ye s Yes Ye s Ye s No Ye s Ye s Ye s Ye s Ye s Ye s Ye s
(1) This publication does not cover the use of this option. Refer to the appropriate publication for more information.

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
