Allen-Bradley PowerFlex 755 Quick Start

Rockwell Automation Publication 750-QS001A-EN-P - March 2015 31
Reference Section
Frames 8…10
PE-B Plug-type Connector
• Tray Torque: 1.86 N•m (16.0 lb•in)
• Tool: T20 Hexalobular
Table 1 - Power Jumper Locations for Frames 1…10 (Continued)

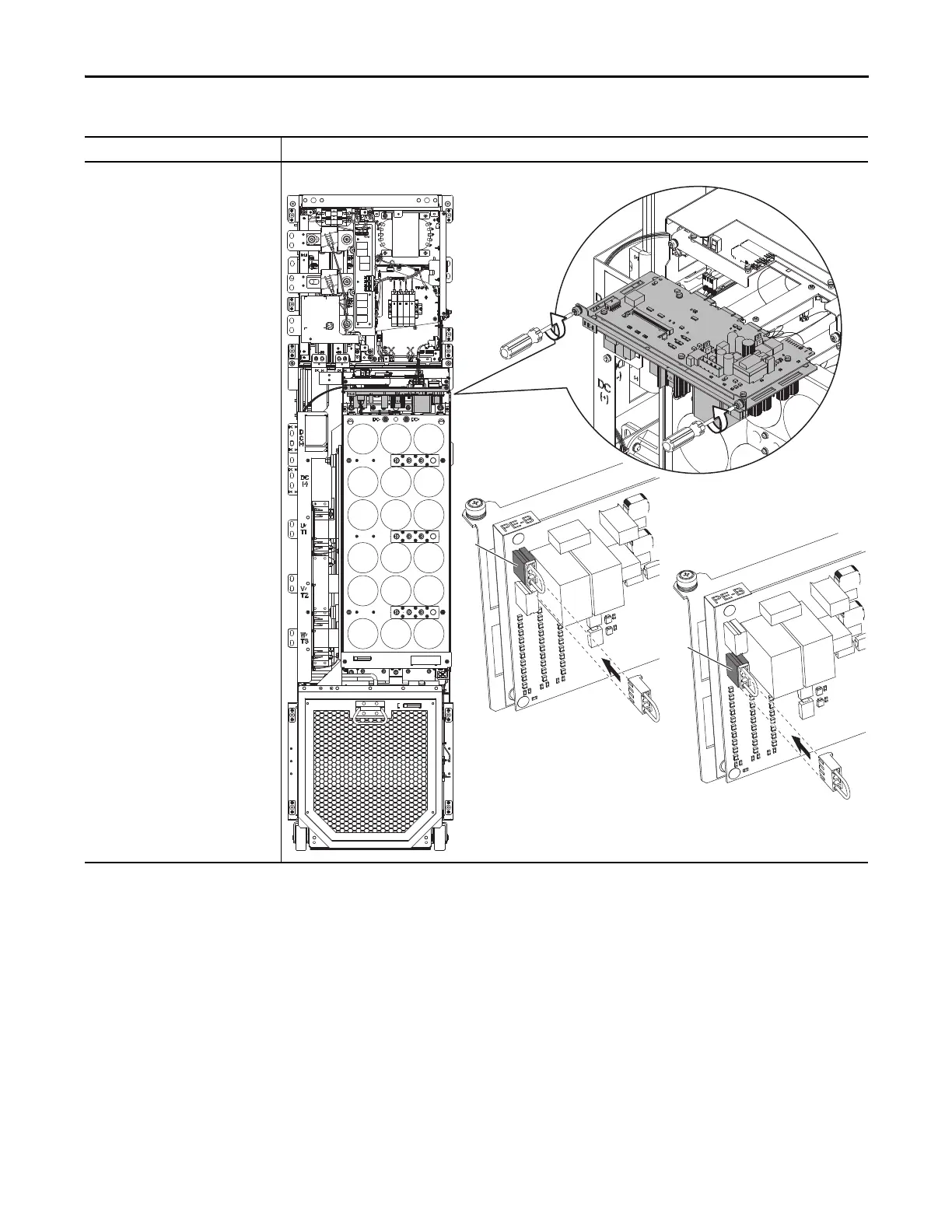

Drive Jumper Locations
J4
J3
Disconnected
Connected
AC Input Drive Shown

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
