24 Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Reference Section

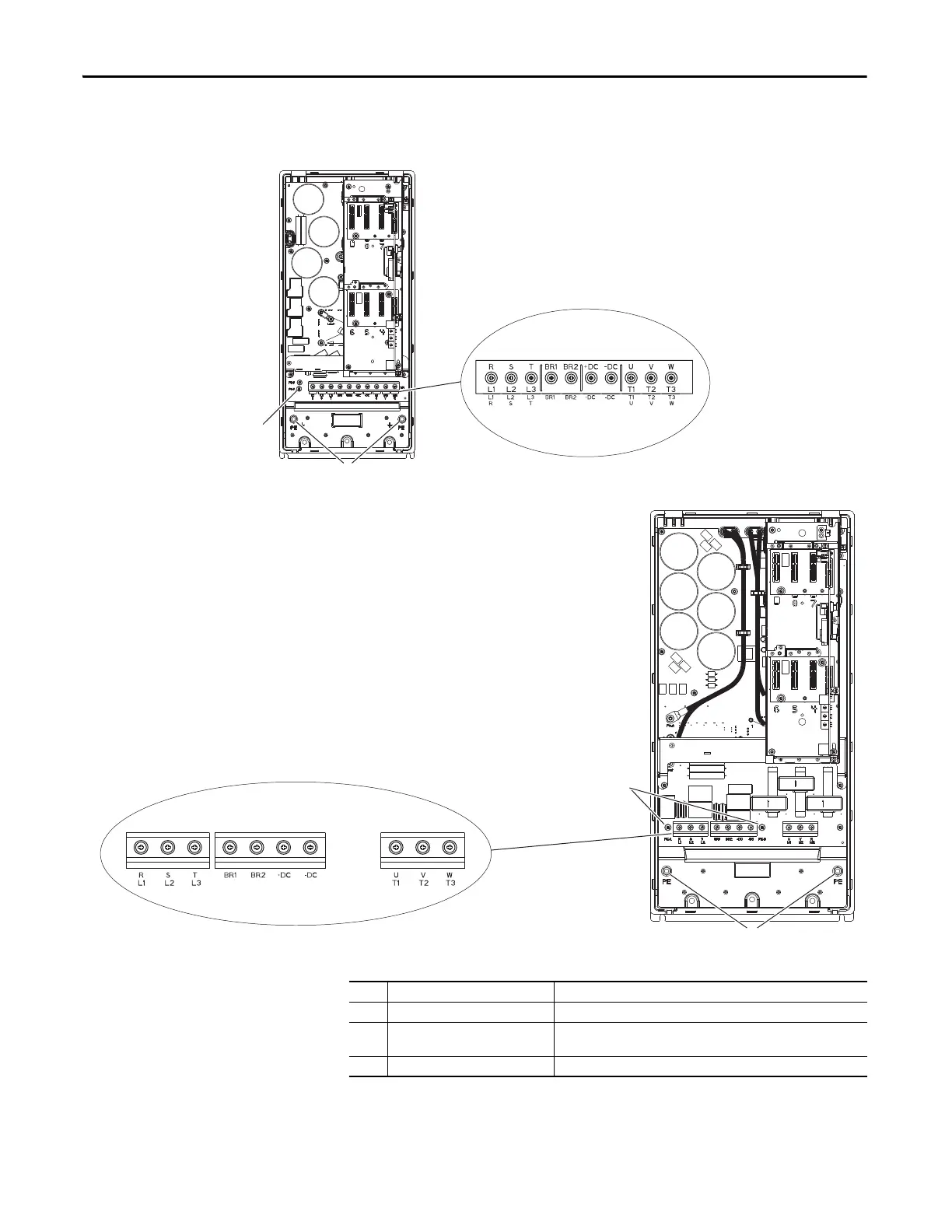

Wall Mount Frames 4…5 Power Terminal Block and Termination Point Locations
(3)
(2)
(1)
(3)
(2)
(1)
Wall Mount Frame 4
Wall Mount Frame 5
No. Name Description
(1) Power Terminal Block R/L1, S/L2, T/L3, BR1, BR2, +DC, -DC, U/T1, V/T2, W/T3
(2) PE Grounding Studs Terminating point to chassis ground for incoming AC line and motor
shie
lds
.
(3) PE-A and PE-B MOV and CMC Jumpers
