Allen-Bradley PowerFlex 755 Quick Start

Rockwell Automation Publication 750-QS001A-EN-P - March 2015 43
Reference Section

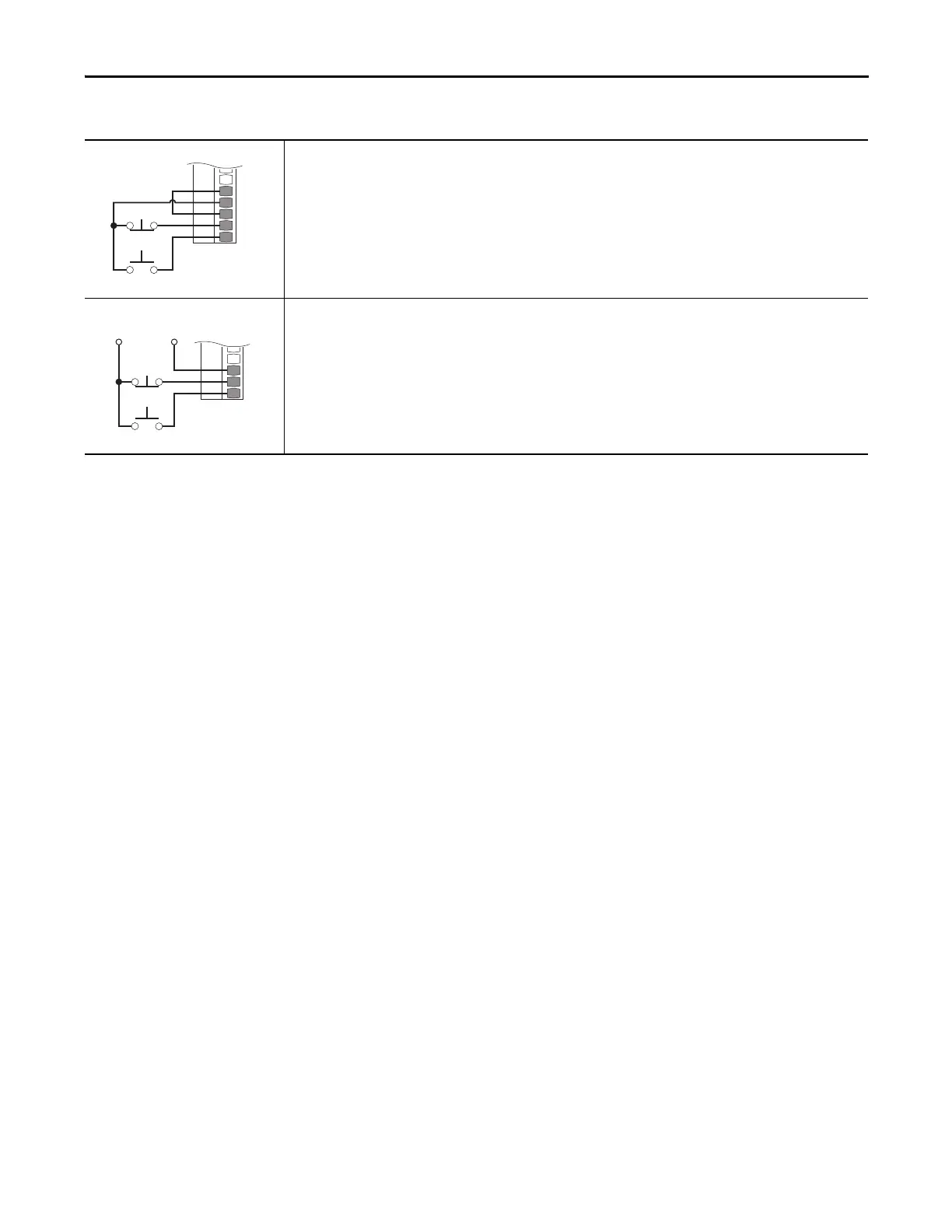

Table 17 - 3-Wire Control on PF753 Main Control Board
Internal Supply
753 Main Control Board TB1
Set Selection
Port 0: P158 [DI Stop] = Port 0: P220 [Digital In Sts], bit 1 = Digital In 1
Port 0: P161 [DI Start] = Port 0: P220 [Digital In Sts], bit 2 = Digital In 2
View Results
Port 0: P220 [Digital In Sts]
Port 0: P935 [Drive Status 1]
External Supply
753 Main Control Board TB1
Set Selection
Port 0: P158 [DI Stop] = Port 0: P220 [Digital In Sts], bit 1 = Digital In 1
Port 0: P161 [DI Start] = Port 0: P220 [Digital In Sts], bit 2 = Digital In 2
View Results
Port 0: P220 [Digital In Sts]
Port 0: P935 [Drive Status 1]
24VC
+24V
Di C
Di 1
Di 2
Stop
Start
Di C
Di 1
Di 2
+24V
Stop
Start
Common

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
