Allen-Bradley PowerFlex 755 Quick Start

84 Rockwell Automation Publication 750-QS001A-EN-P - March 2015
Reference Section

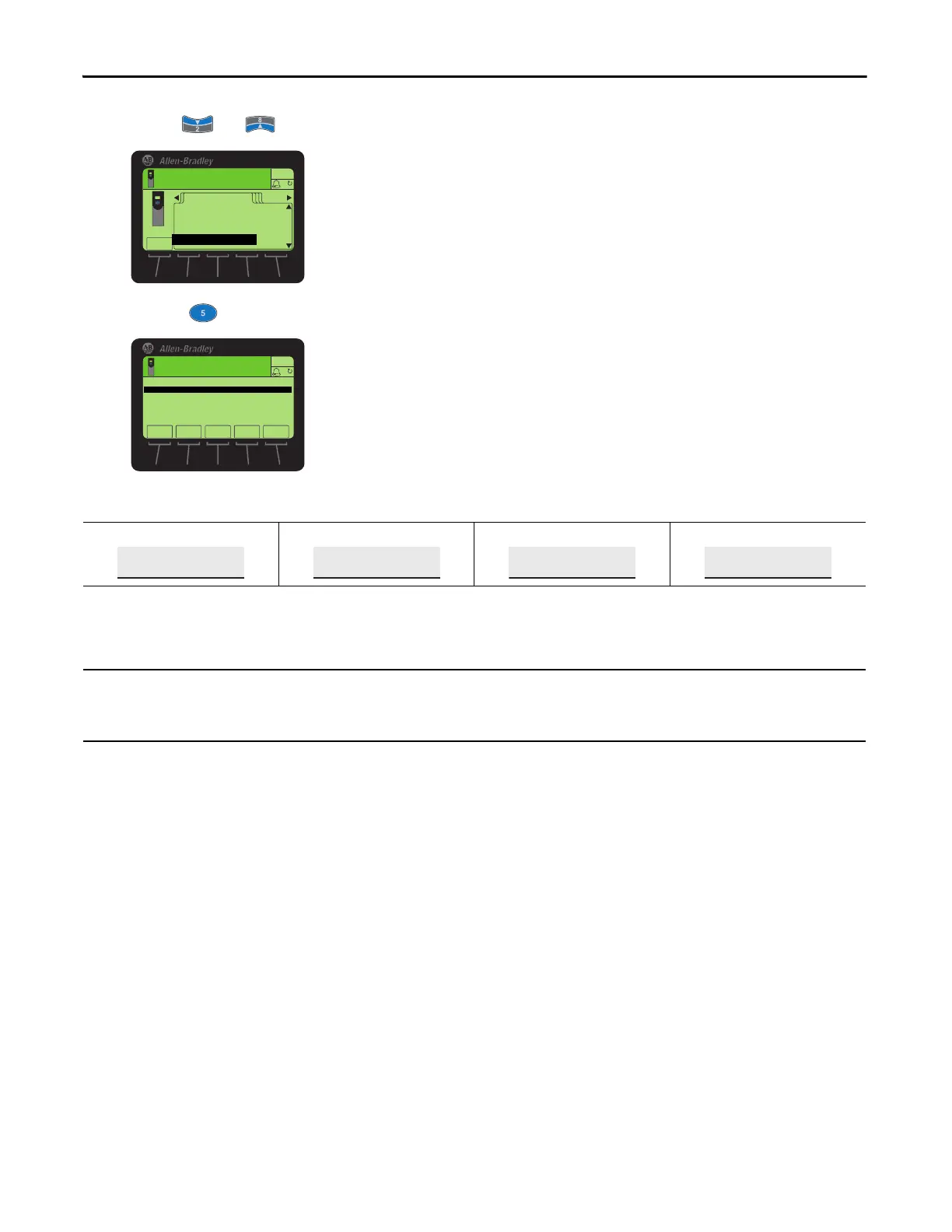

5. Use the or key to select Device Version.
6. Press the (Enter) key to display device version information.
7. Record the information.
Power Jumper Configuration Information
Product Series Product Revision Product Serial Number Main Control Board Firmware Revision
Power Jumper Configuration
Jumper PE-A - MOV / Input Filter Caps
❑ Connected ❑ Disconnected
Jumper PE-B - DC Bus Common Mode Caps
❑ Connected ❑ Disconnected
00
ESC
DIAGNOSTIC
Alarms
Diagnostic Items
Reset Device
Device Version
Stopped
0.000 Hz
AUTO
F
Stopped
0.000 Hz
AUTO
ESC
F
PowerFlex 753
Product Rev 9.001
Product Ser Num 00000000
Product Series A
–Main Control Board
FW Revision 9.001
TOP END PGUP PGDN

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
