Rockwell Automation Publication 750-PC108A-EN-P - April 2021 25
PowerFlex 755T Drives Configured to Order Program Product Information

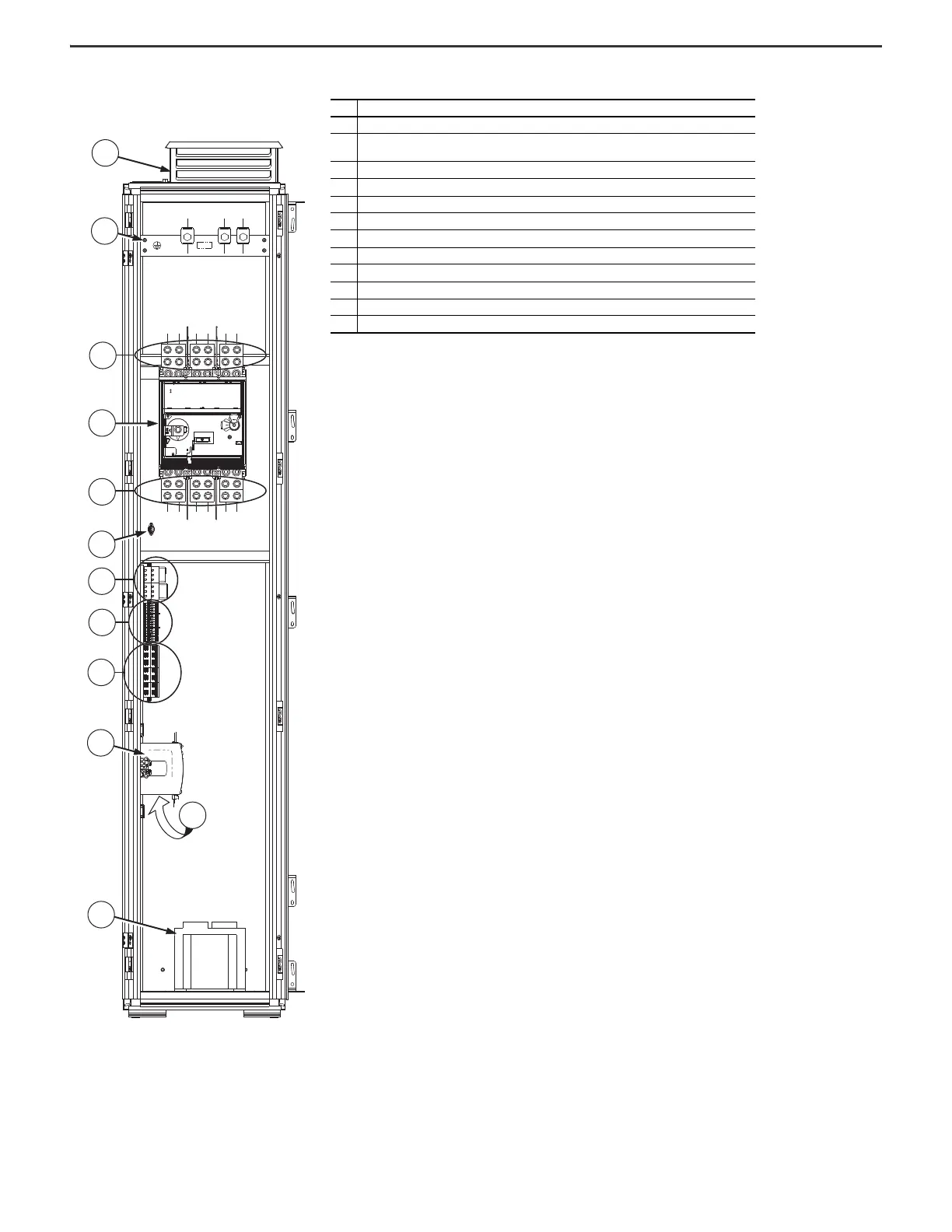

Figure 21 - Frame 8 Configured Input Bay with Circuit Breaker, Top
Entry: Internal Components and Installation Connection Locations
Item Description
1 Exhaust hood with internal air filter
2
PE ground bar with ground clamps included. Terminating point to chassis ground for incoming AC line and
shield. Ground connections must be made during installation.
3 Terminal lugs for customer AC line input power. Connections must be made during installation.
4 AC line input protection circuit breaker
5 Terminal lugs to supply power to the drive input bay
6Thermostat
7Control relays
8Terminal blocks
9Fuse blocks
10 Control power supply (24V DC)
11 Uninterruptible power supply and battery (behind control power supply)
12 Control transformer
To Next Page
