PowerFlex 755T Drives Configured to Order Program Product Information
Bay to Bay Connection Hardware
This section covers the types of hardware that are used to electrically connect bays when they are shipped as part of separate shipping sections. To make these connections, follow the instructions in the PowerFlex 755T
Drives Configured to Order Program Installation Instructions, publication 750-IN118
. For information on where each type of hardware is used and the state and location it is in when it arrives to the customer, see Electrical
Connections Made to Each Configured Bay During Installation on page 17.
PE Ground Bar Splice Connection Hardware
To determine if you must make a connection using this hardware during installation, see Electrical Connections Made to Each Configured Bay During Installation on page 17. If two bays that have a PE ground bar are joined
together during installation, use this hardware to connect the PE ground bars.

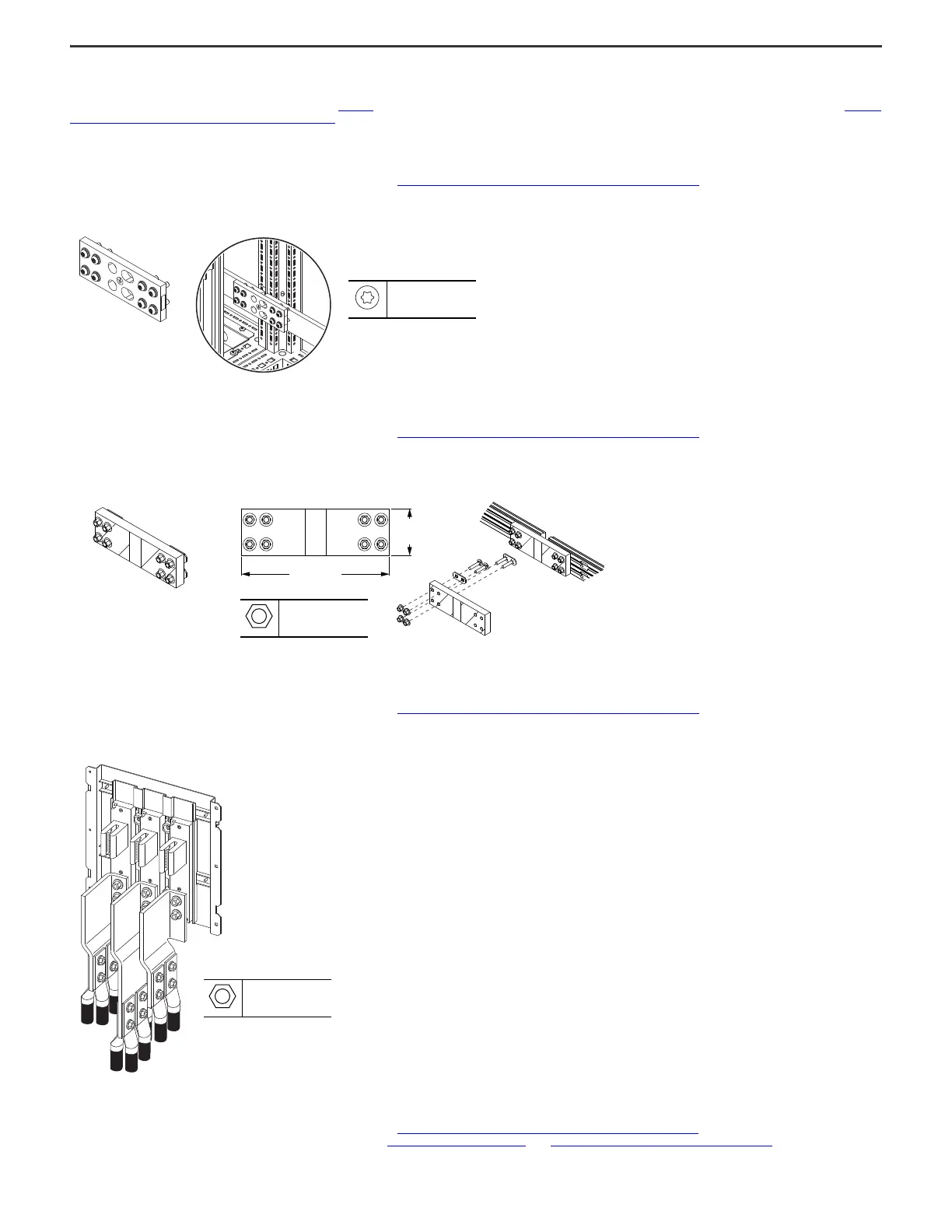

Figure 35 - PE Ground Bar Splice Connection Hardware
AC Busbar Splice Connection Hardware
To determine if you must make a connection using this hardware during installation, see Electrical Connections Made to Each Configured Bay During Installation on page 17. This hardware is used to make the power
connection from the drive power bay to some types of configured output bay.
Figure 36 - AC Busbar Splice Connection Hardware
Barrel Lug to Drive Output Busbar Connection Hardware
To determine if you must make a connection using this hardware during installation, see Electrical Connections Made to Each Configured Bay During Installation on page 17. This hardware is used to make the power
connection from the drive power bay to some types of configured output bay.
Figure 37 - Barrel Lug Connections to Drive Output Busbars
Terminal Lug Connection Hardware
To determine if you must make a connection using this hardware during installation, see Electrical Connections Made to Each Configured Bay During Installation on page 17. Terminal lug connections are used for some bay
to bay connections and for some customer power source and motor connections. See Terminal Lug Connections
on page 46 in the Connection Hardware for Customer Power Source and Motor section.
M6
T20
10.2 N•m (90 lb•in)
85 mm
(3.3 in.)
268.5 mm
(10.6 in.)
M10
15 mm
38 N•m (336 lb•in)
M10
19 mm
38 N•m (336 lb•in)
