28 Rockwell Automation Publication 750-PC108A-EN-P - April 2021
PowerFlex 755T Drives Configured to Order Program Product Information

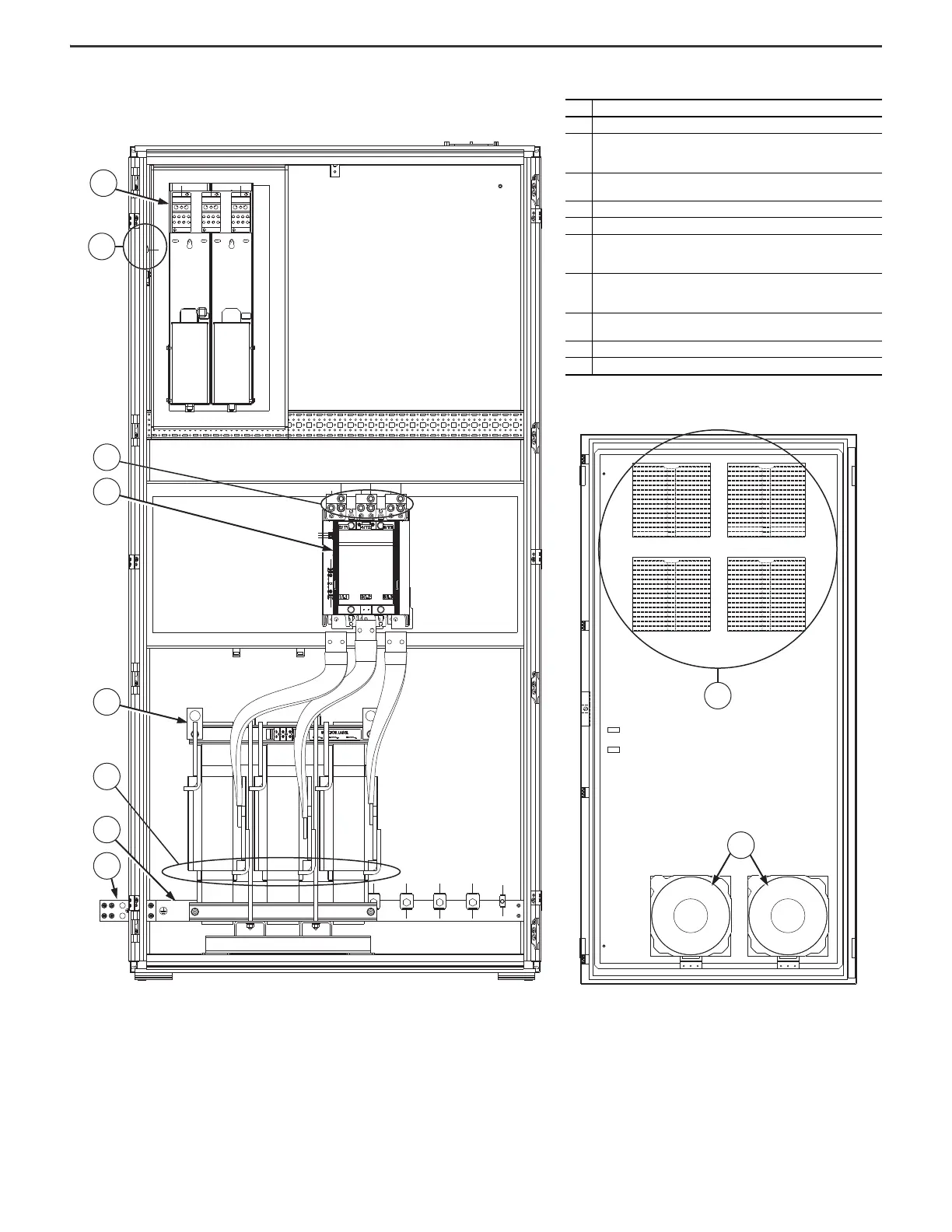

Figure 24 - Frame 8 Configured Output Bay with Sine-wave Filter and Output Contactor, Top or Bottom Exit: Internal Components
and Installation Connection Locations
Item Description
1 Sine-wave filter capacitor bank
2
Configured bay control connectors for control connection to configured input
bay (not visible in this view, located behind bay frame). Connections must be
made during installation. In this area, there is also a thermostat.
3
Terminal lugs for power connection to customer motor. Connections must be
made during installation.
4 Contactor
5 Sine-wave filter reactor
6
Power terminals for power from the drive. Braided busbar connections are
made to the sine-wave filter reactor at the factory. Connections must be
made to the drive during installation.
7
PE ground bar with ground clamps included. Terminating point to chassis
ground for motor and motor cable shield. Ground connections must be made
during installation.
8
PE ground bar splice connection hardware. Ground splice connection to drive
PE ground bar must be made during installation.
9 Fan with internal air filter
10 Vents with internal air filters
