Product Description Chapter 2
Device Components
The SafeZone Mini device comprises following components:
• The sensor with the optoelectronic detection system, the status
indicators, the seven-segment display, and the connecting cable with the
electrical connections
• The optics cover with the window for the light output

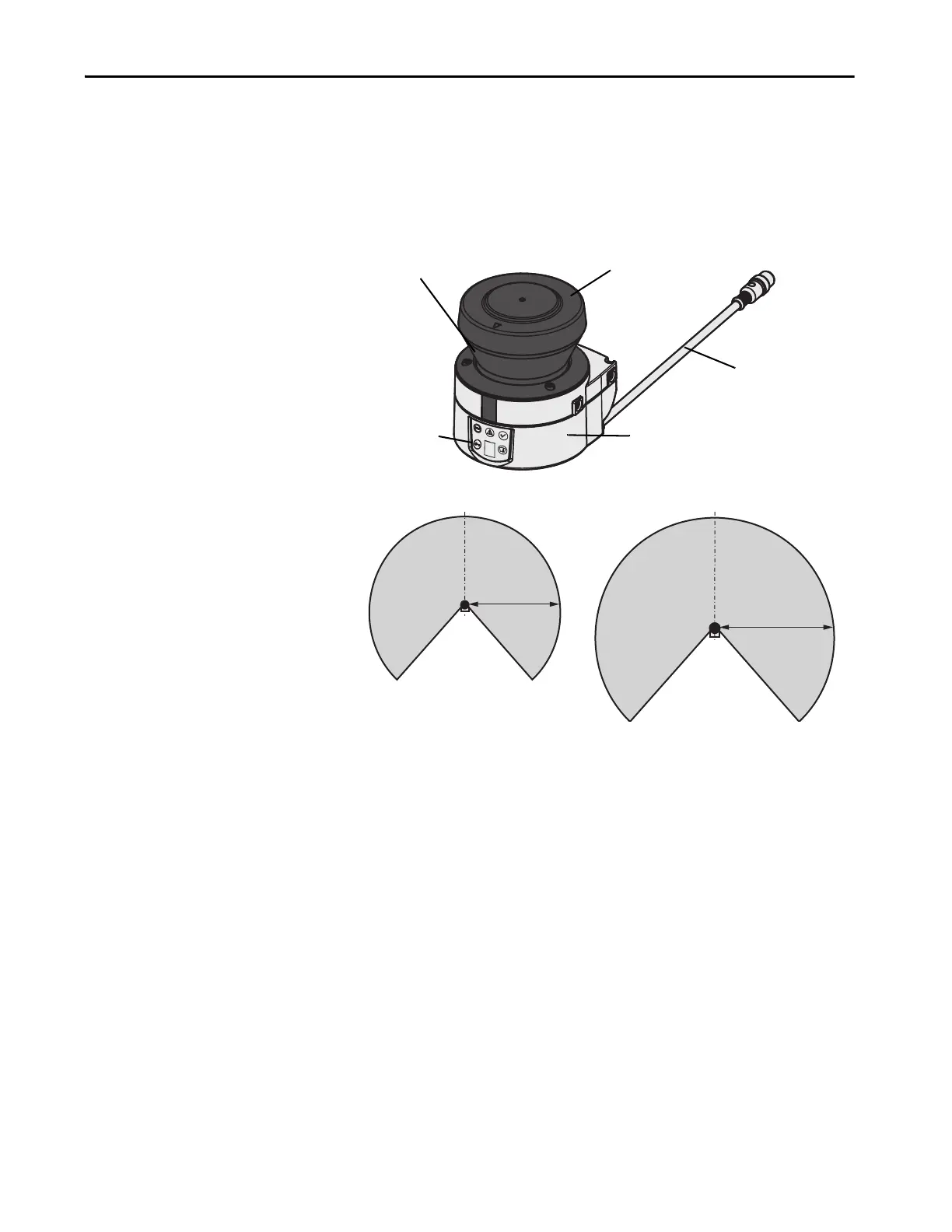

Figure 4 - Device Components
Figure 5 - Maximum Protective Field Range [m (ft)]
Window for light output
Status indicators
and seven-
segment display
Optics cover
Sensor
Round plug
connector
Connecting cable
