Product Description Chapter 2
Status Indicators
The status indicators and the seven-segment display indicate the operational
status of the SafeZone Mini device. They are on the front face of the safety laser
scanner.

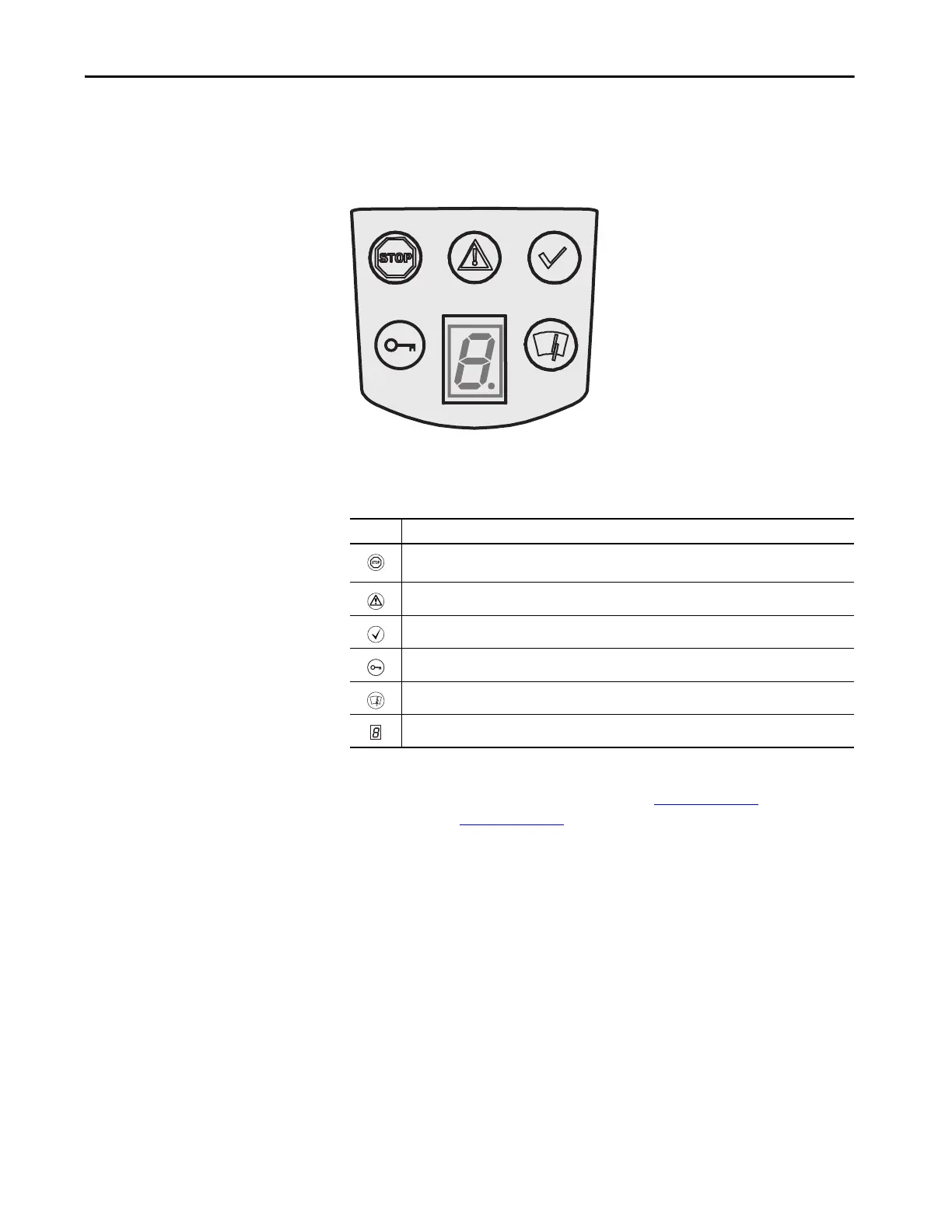

Figure 6 - Status Indicators
The symbols have the following meaning:
Table 3 - Status Indicator Meaning
Symbol Meaning
OSSDs in the OFF state (for example, object in the protective field, monitored contour is changed, reset
required, lockout)
Warning field is interrupted (object in one of the warning fields)
OSSDs in the ON state (no object in protective field)
Reset required
Optics cover contaminated
Seven-segment display for the indication of the status and errors
TIP Detailed information can be found in Table 14 on page 80 and in
Table 15 on page 81
).
