1 Description
AFX-110 is a universal portable reader for RFID microchips with the purpose of identifying animals.
The device can read a wide range of technologies: FDX-B ISO, HDX ISO, FDX-A (FECAVA), Trovan and Avid
Encrypted. AFX-110 can also read and display the Microchip Temperature when reading microchips with
temperature sensing implants from Allflex or Destron Fearing.
In addition to its microchip reading functions, the AFX-110 scanner can store up to 3000 IDs, each associated
with a time/date stamp in its internal memory and transmit them to a personal computer via an USB cable
or wirelessly using Bluetooth
®
.
2 Case and Components

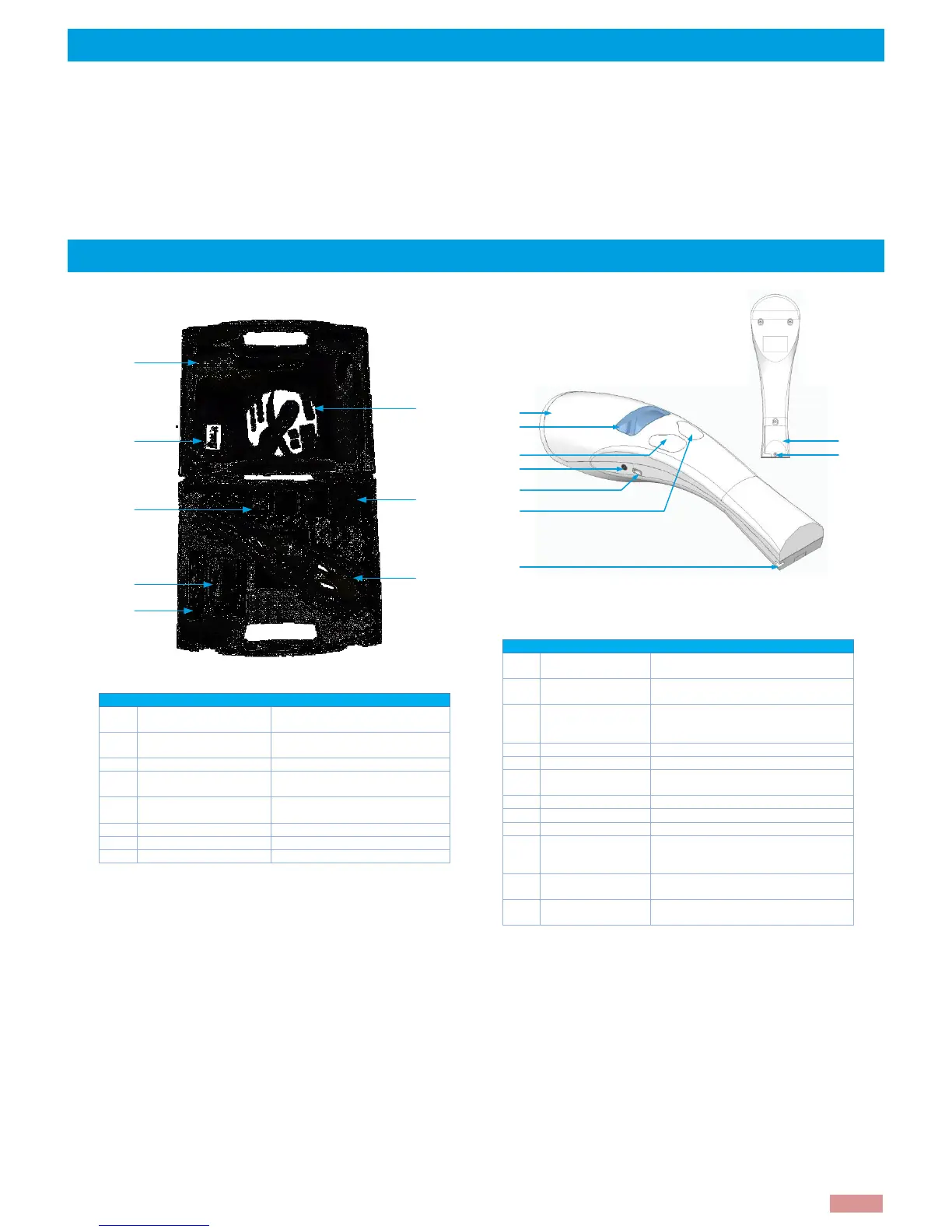

Figure 1 – Packing
Table 1 – Packing list
Item
Features
Description
1
Plastic case
Use to transport the reader in a
robust case
2
Rechargeable NiMH
battery
Supplies the reader.
4
US plug
Plug for wall adapter (5)
5
Wall adapter
Powers the reader and charges
batteries.
6
USB Cable
Conveys data to and from
reader.
7
Reader
-
8
Lanyard
-
9
Notice
Quick start guide
Figure 2 - Reader features and user interface.
Table 2 – Reader features and description of use
Item
Feature
Description of use
1
Antenna
Emits activation signal and receives
RFID microchip signal.
2
Graphical readout
with backlight
Displays information about current
reader status.
3
“SCAN” button
Applies power and causes activation
signal to be emitted for reading
microchips
4
POWER connector
Electrical interface for charging.
5
USB connector
Electrical interface for USB cable.
6
“MENU” button
Applies power and access menu to
change reader settings
7
Eyelet
Eyelet to place the lanyard
8
Battery door screw
Screw on batteries cover
9
Battery cover
Cover to access batteries
10
Bluetooth®
(internal)
Wireless interface to communicate
data to and from reader (not
pictured)
11
Audible beeper
Beeper to identify the different reader
functionalities
12
Vibration mode
Vibration systems to indicate
readings.
1
2
3
4
5
7
6
9
8
10,11 & 12
1
2
4
5
6
8
7
9
