Almatec E 08 - Installation; Recommended Installation; Product Ports

8
INSTALLATION


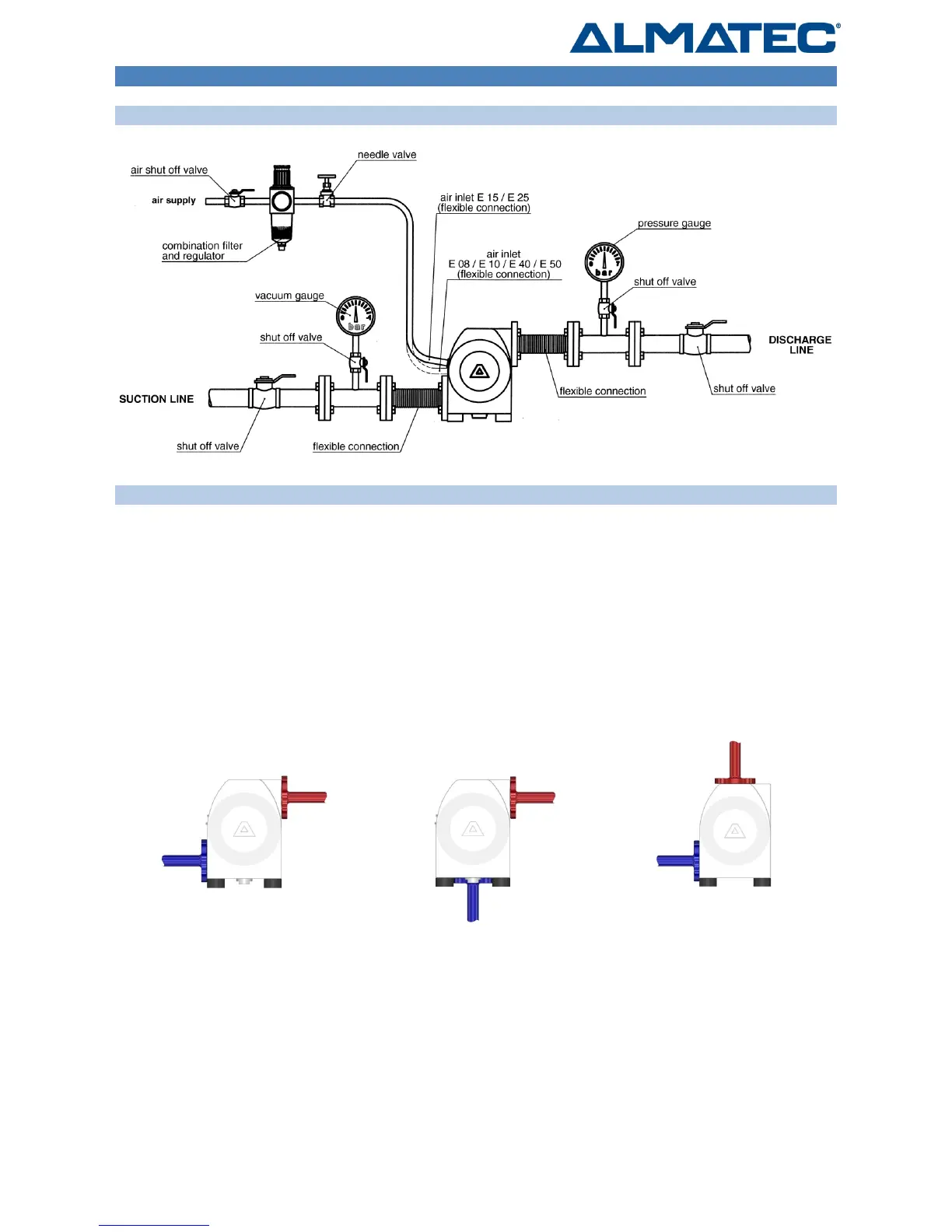

Recommendedinstallation



Productports

The productports are integratedinto thecenterhousing [4].Different port configurations canbe obtained
(withoutusingofascrewedpulsationdamperonly).ThestandardconfigurationoftheE‐Seriesatdeliveryis
withthesuctioninlethorizontallyatthebottomandthedischargeoutlethorizontallyat
thetop(figure8.1).
Furtherpossibleconfigurations:
 Suctioninletverticallyatthebottom,thedischargeoutlethorizontallyatthetop(figure8.2)
Toobtainthisconfiguration,theplugofthecenterhousing[13]hastoberemovedandsetinthe
standardinlet.
 Suctioninlethorizontallyatthebottom,
thedischargeoutletverticallyatthetop(figure8.3)
Unscrewthehousingbolts[19],takeoffthesidehous ings[1]andturnthecenterhousing[4].
Remountthepumpandadjusttheplug[13]accordingly.






 







fig. 8.1 fig. 8.2
fig. 8.3
