WARNING!
Hands and ngers could be crushed during
the following tasks!

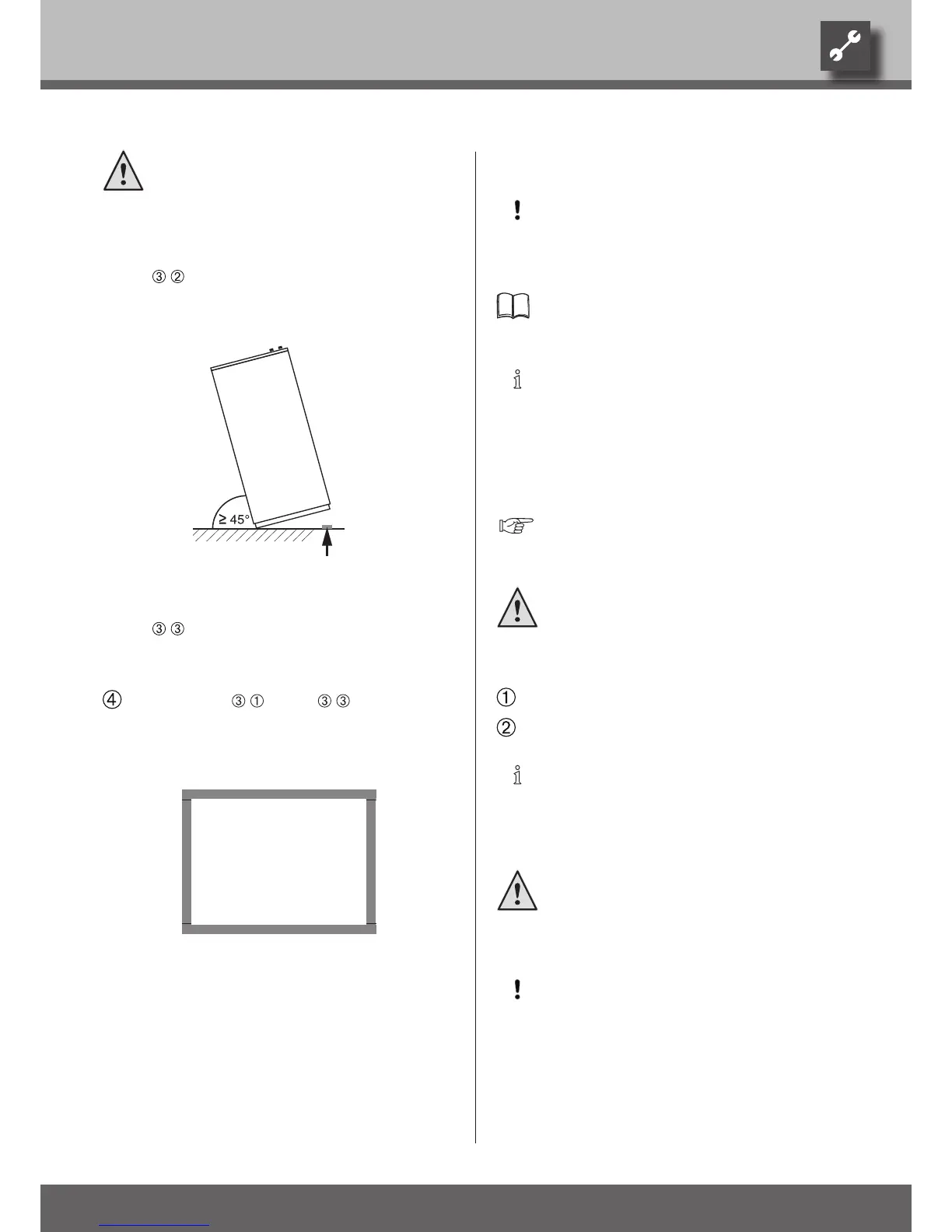

Secure unit in raised position so that it cannot acci-
dentally tip back into the original position.
•
Place one sylomer strip flush with the respective
outer edge of the unit…
•
Slowly and carefully tip the unit back into the origi-
nal position…
Repeat steps
•
through
•
for the remaining
sides of the unit.
Place sylomer strips at right angles to each other,
with no space in between:
Operating side
INSTALLATION OF THE HydRAULIC CONNECTIONS
CAUTION.
The heat source system must be designed
according to the specications of the heat
pump guide.
Heat pump guide and “Hydraulic connection” in-
structions.
NOTICE:
Check to make sure that the diameters and
lengths of the pipes for the heating circuit
and the heat source are sufciently dimen-
sioned. The free compression of the circulat-
ing pumps must be able to deliver at least the
minimum ow rate required for your model.
Overview “Technical data/scope of delivery”, “Heat
source” and “Heating circuit” sections.
DANGER!
Disconnect unit from power supply if it is
connected to the power supply!
Proceed as follows:
Install shut-off devices at the heating circuit…
Install shut-off devices at the heat source.
NOTICE:
During installation of the shut-off devices, the
compressor and liqueer of the heat pump
can be rinsed, if necessary.
CAUTION!
The condenser may be rinsed only by cus-
tomer service personnel authorized by the
manufacturer.
CAUTION.
When installing the connections, always
secure the connections on the unit from
twisting, in order to prevent damage to the
copper pipes in the interior of the unit.
