Alpha-InnoTec SWC 140H User Manual

38
We reserve the right to modify technical specifications without prior notice.
UK830300/170717 © Alpha-InnoTec GmbH

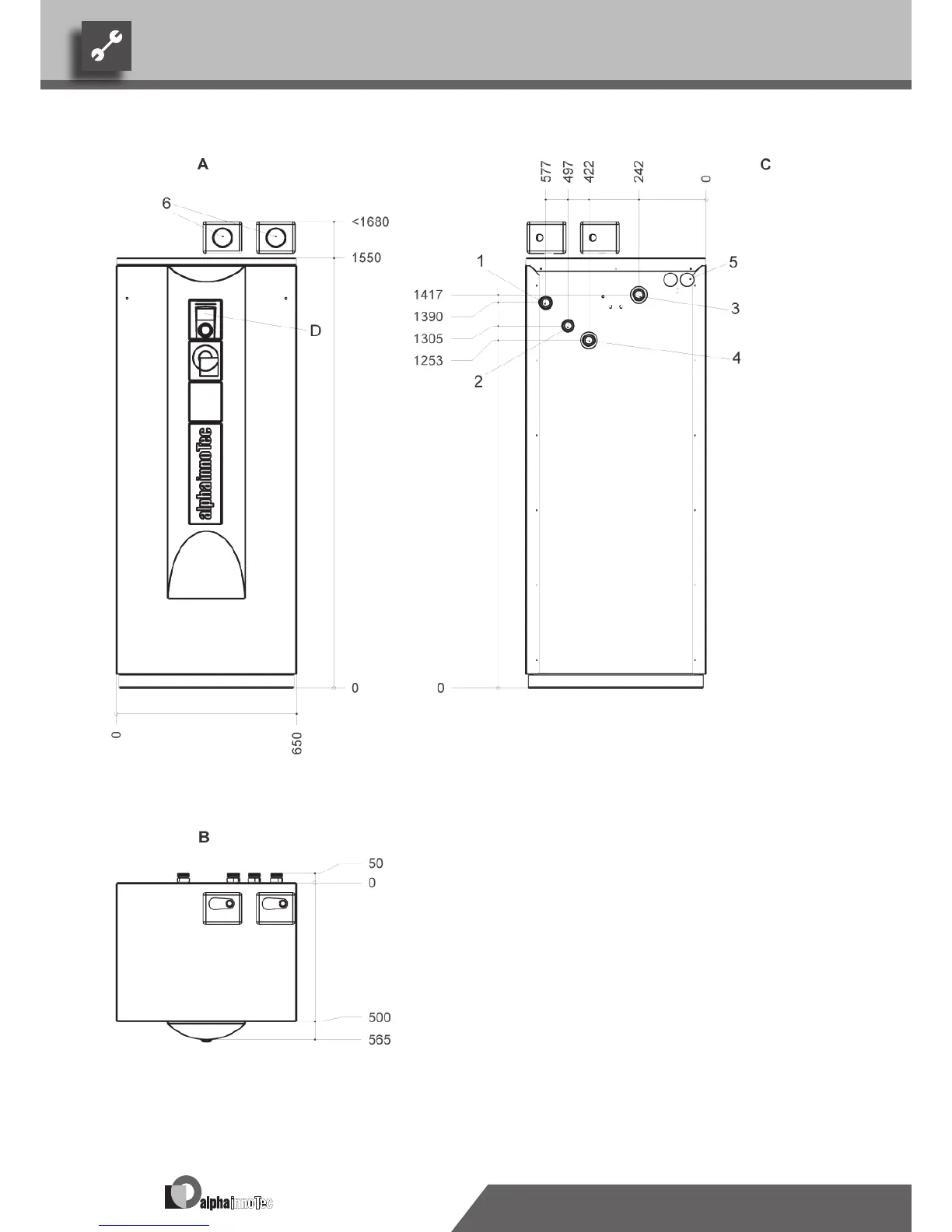

Size 1: Dimensional drawings
Legend: UK819248a
All dimensions in mm.
A Front view
B Top view
C Rear view
D Control element
1 Heating water outow (forward ow) DIN ISO 228
SWC 60… to SWC 100…: G1"AG
SWC120… to SWC 170…: G1¼"AG
2 Heating water inow (return ow) DIN ISO 228
SWC 60… to SWC 100…: G1"AG
SWC120… to SWC 170…: G1¼"AG
3 Heat source inow (return ow) DIN ISO 228
SWC 60… to SWC 100…: G1"AG
SWC120… to SWC 170…: G1¼"AG
4 Heat source outow (forward ow) DIN ISO 228
SWC 60… to SWC 100…: G1"AG
SWC120… to SWC 170…: G1¼"AG
5 Ducts for electric/sensor cables
6 Safety components
