14
We reserve the right to modify technical specifications without prior notice.
UK830300/170717 © Alpha-InnoTec GmbH
2 Size 2:
Switch cabinet closed.
Insert load and control leads in the openings pro-
vided on the back of the unit…
1 Cable duct size 1:
2 Cable duct size 2:

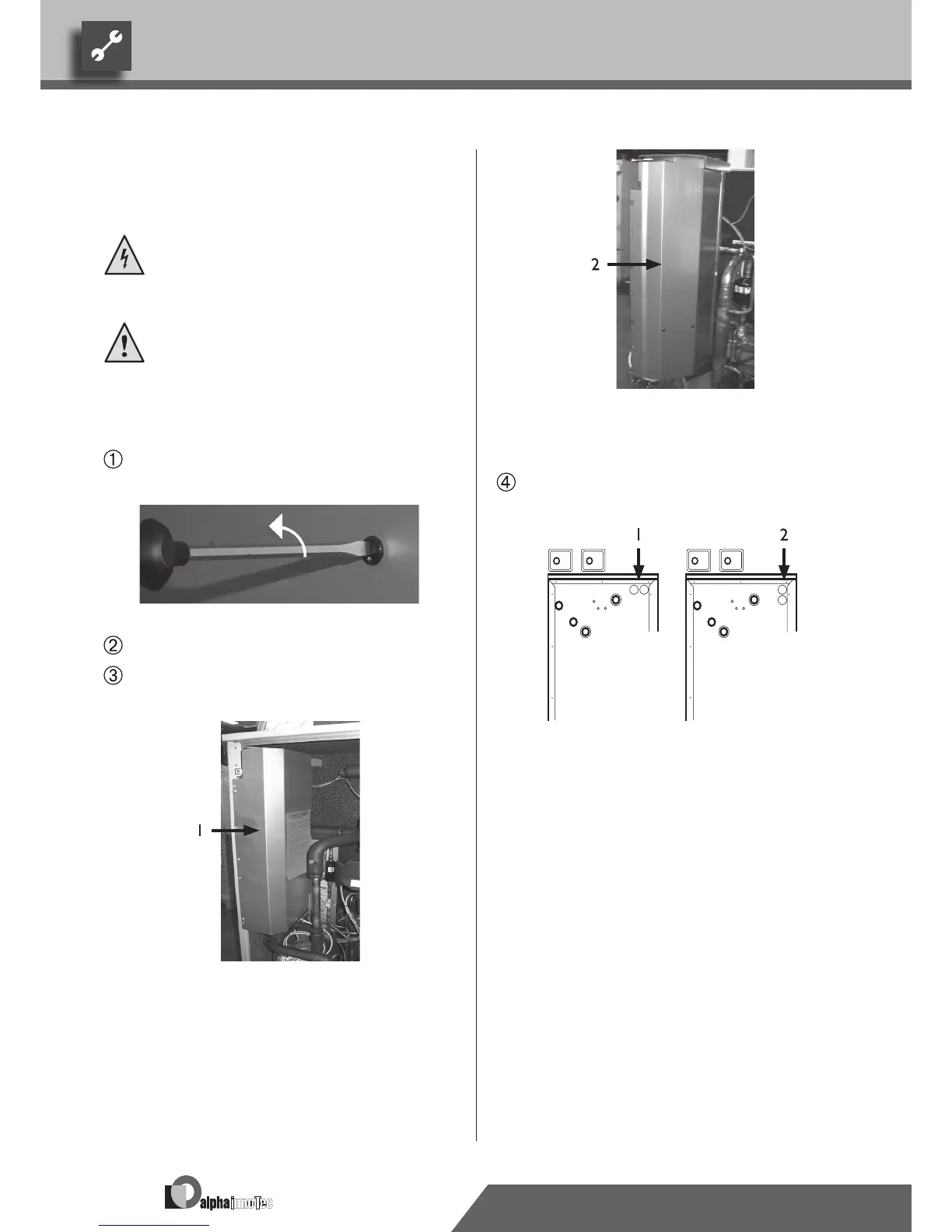

Electrical connections
Observe the following when performing all work:
DANGER!
Electrical connections may be installed only
by qualied electricians.
DANGER!
Observe the relevant EN, VDE and/or appli-
cable local safety regulations during the in-
stallation and during all electrical work.
Observe the technical connection conditions
of the responsible power supply company!
Loosen quick-release screws for the front panel.
Turn counter-clockwise 90°…
Lift front panel and set aside in a safe place…
Open electric switch cabinet (inside the unit on the
left)…
1 Size 1:
Switch cabinet closed.
