15
We reserve the right to modify technical specifications without prior notice.
UK830300/170717 © Alpha-InnoTec GmbH

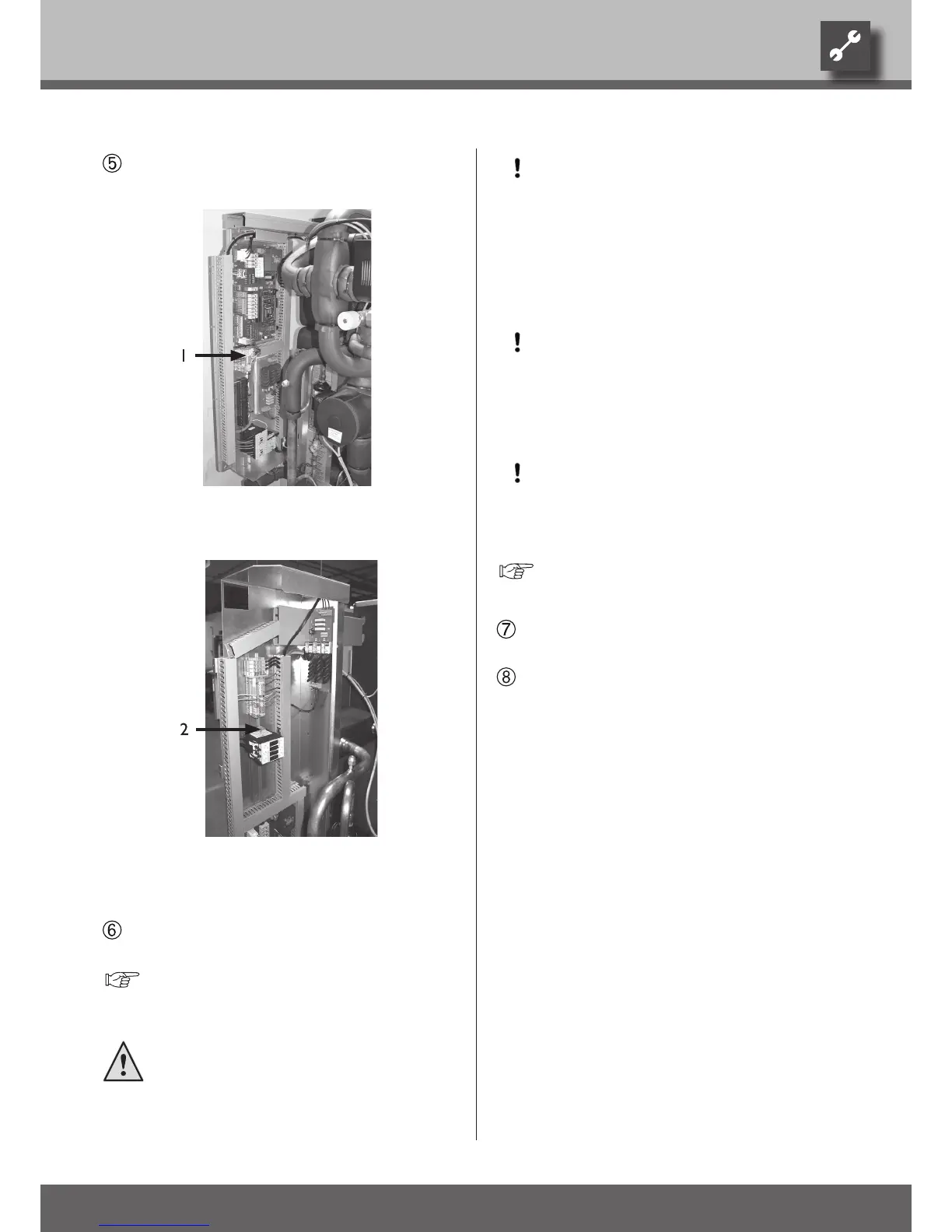

Lay load and control leads in the cable duct inside
the unit all the way to the switch cabinet…
1 Size 1:
Switch cabinet opened.
2 Size 2:
Switch cabinet opened.
Install electrical connections according to the ter-
minal diagram and the circuit diagrams…
„Terminal diagrams” and “Circuit diagrams” for the
respective model.
DANGER!
Install electric connections only according
to the terminal diagram and the circuit dia-
grams that apply to your model.
CAUTION.
Ensure clockwise rotary eld of the load
power supply.
An incorrect rotary eld of the con
-
denser during operation can cause
serious, irreparable damage to the con-
denser.
CAUTION.
Make sure to equip the power supply of the
heat pump with an all-pole circuit breaker.
The all-pole circuit breaker must have a contact gap
of at least 3mm.
CAUTION.
Make sure to equip the power supply of the
heat pump with a 3-pole automatic cut-out.
Note the level of the release current.
Overview “Technical data/scope of delivery”, “Elec-
tric” section.
After completion of all electrical installation work,
close the switch cabinet inside the unit…
Screw on the front panel of the unit if no further
installation work inside the unit is to be performed
immediately.
