0.01Hz/(6/(5*PA.00))r/min; When it is reference speed, the unit is
(6/(5*PA.00))r/min under common operation mode and 1r/min under the digital PID
control mode.
Example:
In the range, when P0.11 is set to 100, turn left/right the digital encoder one cycle, the
reference frequency will decrease/increase 30.00Hz and the rotate speed will
decrease/increase 900 turns every minute; when P0.11 is set to 10, the reference
frequency will decrease/increase 3.00Hz and the rotate speed will decrease/increase
900 turns every minute
P0.12 V/F curves setting
Range: 0～4【0】
P0.13 V/F frequency value F1
Range: 0.0～P0.15
【10.00Hz】
P0.14 V/F voltage value V1
Range: 0～100.0%【20.0%】
P0.15 V/F frequency value F2
Range: P0.13～P0.17
【25.00Hz】
P0.16 V/F voltage value V2
Range: 0～100.0%【50.0%】
P0.17 V/F frequency value F3
Range: P0.15～P0.06
【40.00Hz】
P0.18 V/F voltage value V3
Range: 0～100.0%【80.0%】
Note:
The above listed parameters can define flexible V/F setting mode to meet the special
load characteristics demand.

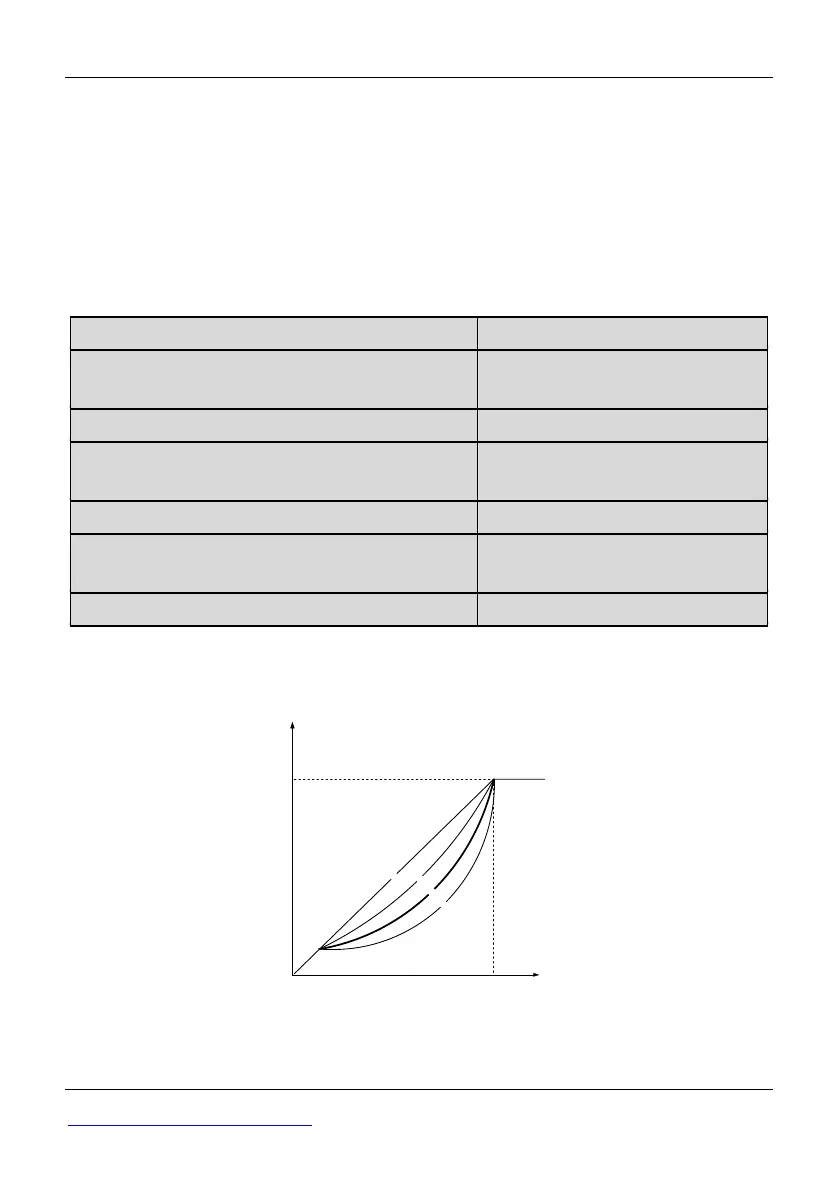

Ooutput Voltagey(V)
Output Frequency(Hz)
Max output
Voltage ( P0 .10 )
Basic Frequency (P0.06)
0
3
2
1
Fig. 5-0-2 Torque-reducing curve
