Alpha E-Tec 30S - Electrical Connections

7
Alpha E-Tec S 20 and 30 - Technical Data
Note: This Appliance Must Be Earthed
Optional integral single channel controls are available if required.
Note: Only use the Alpha two channel controls. Do not fit any single channel controls*.
Fig. 2.3 shows the Internal two channel clock option for S or Y plan. Alternatively bring a Switched Live from external controls
to terminal 1.
DO Not connect an Alpha Climatic control when the proprogrammer clock is connected.

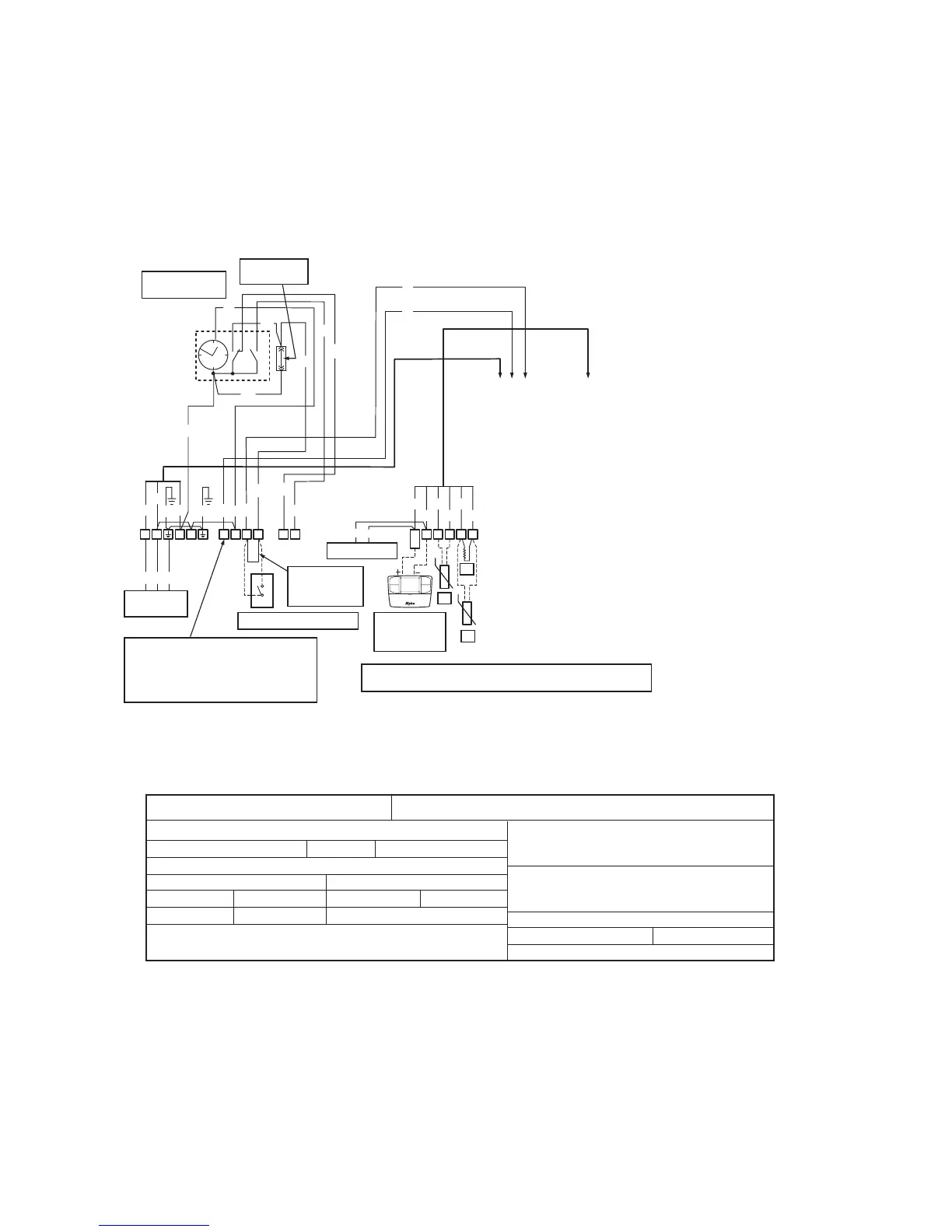

2.5 ELECTRICAL CONNECTIONS
Fig. 2.3
2.6 DATA BADGE ANNOTATION
Md
Sr N
o
Type
Q
nw /Q n min.
PMS
NO
x Class
Q
nw /Q n max.
PMW
Cod. Md
Cod. PIN
P
n min.
D
P
n max.
TM
CONDENSING
Md.............................Model
Cod. Md ....................Model code
Sr N
o
.........................Serial number
CHK ..........................Check
Cod. PIN ...................PIN code
Type ..........................Type of installation (ref. CEN TR 1749)
Q
nw min. .....................DHW minimum heat input
Q
n min. .......................CH minimum heat input
Q
nw max. ....................DHW maximum heat input
Q
n max. ......................CH maximum heat input
P
n min. .......................Minimum heat output
P
n max. .......................Maximum heat output
PMS ..........................Maximum system pressure
PMW .........................Maximum DHW pressure
D ...............................Specific flow rate
TM ............................Maximum operating
temperature
NO
x Class .................NOx Class
CONDENSING .........Condensing boiler
NOTE: Technical data is provided on the boiler data label and in Section 2.1.
* If the boiler is used for heating only a single
channel control can be fitted.
Fit the clock or receiver as normal and connect
a link between terminals A and 3 on the boiler.
J2 on PCB
J2 on PCB
J1 on PCB
X4 on PCB
Colour Code
Bk Black
Bl Blue
Br Brown
G Green
Gy Grey
G/Y Green/Yellow
Or Orange
R Red
W White
YYellow
B4 External sensor (optional)
B9 Cylinder sensor (optional) - Remove
cylinder resistor R8 when connecting
cylinder sensor
R8 Cylinder resistor
Programmer clock
(optional)
Remove link to
connect clock
Remove link
to connect 220 V
room thermostat
Room thermostat (optional)
When an Alpha Climatic control is connected to terminals 41 and 44
remove the links between terminal blocks 1 and 2
Bk
Bk
Bk
Bl
Br
Br
Gy
W
W
R
R
Gy
BlBk
Bl
Br
G/Y
G/Y
Mains Supply
220 V ~ 50 Hz
Br
Bl
G/Y
G/Y
L
N
A
B
5
6
1
2
4
3
Y
Y
Alpha
Climatic Control
(optional)
B4
B9
R8
R
Or
Y
Bk Or Y
44
40
41
38 39 38 48
2
1
34
5
Ch 1
Ch 2
Bl
R
Bl
DHW ON
DHW OFF
CH ON
Alpha Diverter Valve option to be used with
Alpha Climatic Control
Configurable relay Parameter P3=5
CH ON contact closed CH OFF contact open
6=Neutral 5=Live (CH ON)
L
L
N
N
For testing only
Bk
R
