Alpine ALP080B - Page 142

142 103448-07- 1/16
Key
No.
Vent System Components Part Number
Quantity
ALP080B &
ALP105B
ALP150B &
ALP210B
ALP285B

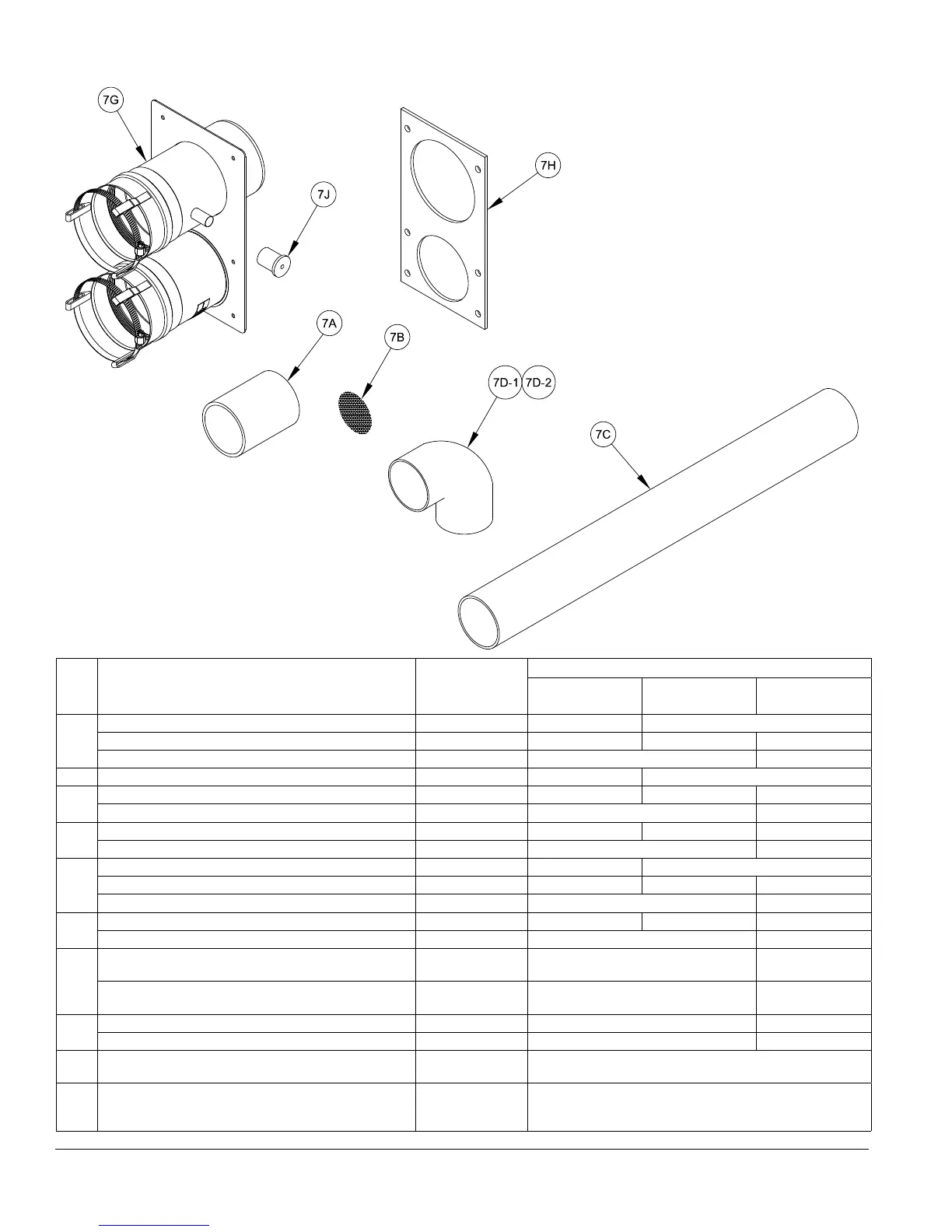

7A
2” Schedule 40 PVC Coupling Vent Terminal 101870-01 1 N/A
3” Schedule 40 PVC Coupling Vent Terminal 106680-01 N/A 1 N/A
4” Schedule 40 PVC Coupling Vent Terminal 106681-01 N/A 1
2” Stainless Steel Rodent Screens 102191-04 2 N/A
7B
3” Stainless Steel Rodent Screens 102191-01 N/A 2 N/A
4” Stainless Steel Rodent Screens 102191-02 N/A 2
7C
3” x 30” Schedule 40 CPVC Pipe 102193-01 N/A 1 N/A
4” x 30” Schedule 40 CPVC Pipe 102193-02 N/A 1
7D-1
2” Schedule 40 PVC 90° Elbow – Air Intake Terminal 106618-01 1 N/A
3” Schedule 40 PVC 90° Elbow – Air Intake Terminal 106678-01 N/A 1 N/A
4” Schedule 40 PVC 90° Elbow – Air Intake Terminal 106679-01 N/A 1
7D-2
3” Schedule 80 CPVC 90° Elbow 102192-01 N/A 1 N/A
4” Schedule 80 CPVC 90° Elbow 102192-02 N/A 1
7G
3” x 3” CPVC/PVC Vent System Connector Assembly
(with sensor cap and ue sensor)
105133-01 1 N/A
4” x 4” CPVC/PVC Vent System Connector Assembly
(with sensor cap and ue sensor)
105133-03 N/A 1
7H
3” x 4” CPVC/PVC Vent System Connector Gasket 102185-01 1 N/A
4” x 4” CPVC/PVC Vent System Connector Gasket 102185-02 N/A 1
7J
Replacement Flue Temperature Sensor Cap Kit
(includes cap, Molykot 111 grease and instructions)
105197-01 1
Flue Temperature Sensor and Cap Replacement
Kit (includes sensor, cap, Molykot 111 grease and
instructions) - Not Shown
106066-01 1
XIII. Repair Parts (continued)
