35-EN

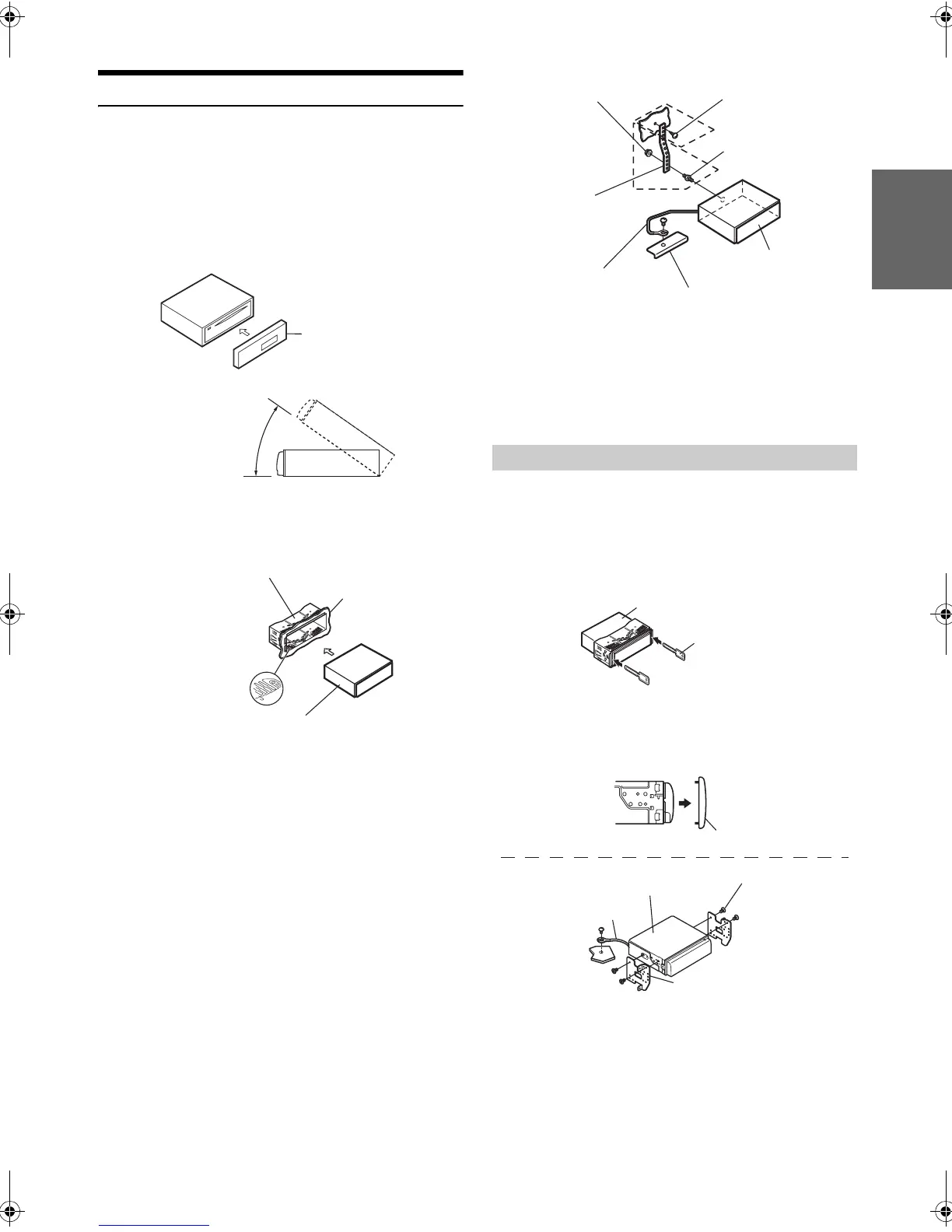

Installation
Caution
When you install this unit in your car, do not remove the
detachable front panel.
If the detachable front panel is removed during installation, you
might press too hard and warp the metal plate that holds it in
place.
The main unit must be mounted within 35 degrees of the
horizontal plane, back to front.
1
Remove the mounting sleeve from the main unit (refer to
“Removal” on page 35).
* If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
2
Reinforce the head unit with a metal mounting strap (not
supplied). Secure the ground lead of the unit to a clean
metal spot using a screw (
*1
) already attached to the
vehicle’s chassis.
Connect each input lead coming from an amplifier or equalizer
to the corresponding output lead coming from the left rear of
the CDE-135EBT/CDE-134EBT. Connect all other leads of the
CDE-135EBT/CDE-134EBT according to details described in the
CONNECTlONS section.
Note
•For the screw marked “
*2
”, use an appropriate screw for the chosen
mounting location.
3
Slide the CDE-135EBT/CDE-134EBT into the dashboard
until it clicks. This ensures that the unit is properly locked
and will not accidentally come out from the dashboard.
1
Remove the detachable front panel.
2
Insert the bracket keys into the unit, along the guides on
either side. The unit can now be removed from the
mounting sleeve.
3
Pull the unit out, keeping it unlocked as you do so.
JAPANESE CAR
Note
• Secure the ground lead of the unit to a clean metal spot using a screw
(
*3
) already attached to the vehicle’s chassis.
Less than 35°
Dashboard
Mounting Sleeve (Included)
Pressure Plates*
This unit
Removal
*
2
*
1
Bolt Stud
Chassis
Ground Lead
Hex Nut (M5)
Metal
Mounting
Strap
Screw
This unit
Bracket keys
(Included)
This unit
*
3
Front Frame
Screws (M5 × 8)
(Included)
This unit
Ground Lead
Mounting Bracket
00ALPINE.book Page 35 Sunday, November 20, 2011 6:35 PM
