37
-E
N

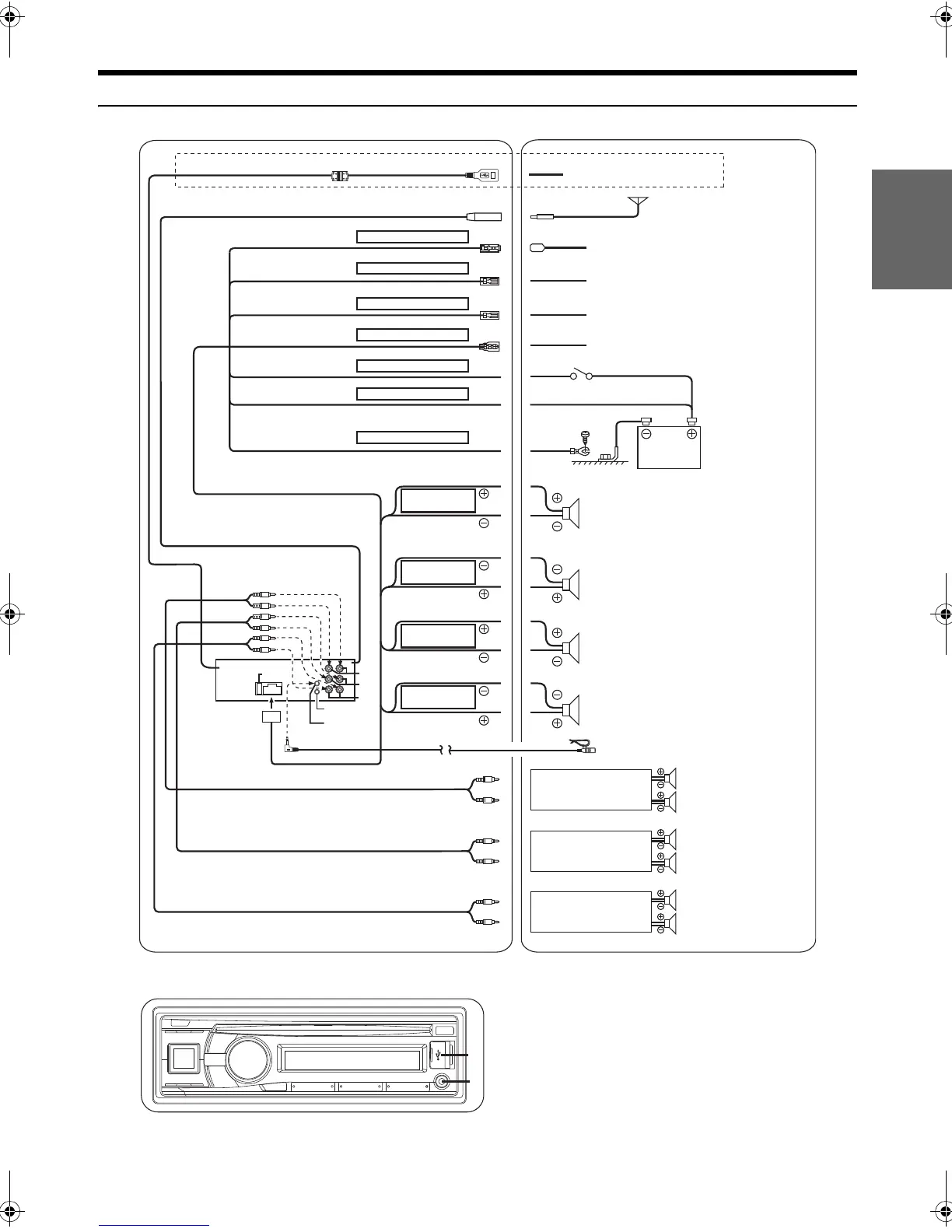

Connec
tions
POWER ANT
REMOTE TURN-ON
AUDIO INTERRUPT IN
ILLUMINATION
IGNITION
BATTERY
GND
Amplier
Amplier
Amplier
To amplier
To USB memory/iPod/iPhone
CDE-135EBT only
Antenna
(Blue)
To power antenna
(Blue/White)
(Pink/Black)
Not used
(Orange)
To the instrument cluster illumination
lead
(Red)
Ignition Key
(Yellow)
(Black)
Battery
(Grey)
Speakers
Front Right
(Grey/Black)
(Violet/Black)
Rear Right
(Violet)
(Green)
Rear Left
(Green/Black)
(White/Black)
Front Left
(White)
Microphone
Front Left
Front Right
Rear Left
Rear Right
Subwoofers
SPEAKER
RIGHT FRONT
SPEAKER
RIGHT REAR
SPEAKER
LEFT REAR
SPEAKER
LEFT FRONT
00ALPIN
E.book
Page
37
Sunday,
November
20,
201
1
6:35
P
M
38
40
Table of Contents
Default Chapter
3
Table of Contents
3
Operating Instructions
6
Warning
6
Caution
6
Precautions
6
Getting Started
9
Accessory List
9
Turning Power on and off
9
Source Selection
9
Detaching and Attaching the Front Panel
9
Detaching
9
Attaching
9
Initial System Start-Up
9
Adjusting Volume
10
Setting the Time
10
Radio
10
Listening to Radio
10
Presetting Stations Manually
10
Presetting Stations Automatically
11
Tuning to Preset Stations
11
Frequency Search Function
11
CD/Mp3/Wma/Aac
11
Playback
11
Repeat Play
12
Random Play)
12
Searching for CD Text
12
Folder/File Name Search (Concerning MP3/WMA/AAC)
12
Folder Name Search Mode
12
File Name Search Mode
12
Quick Search
12
About MP3/WMA/AAC
12
Terminology
13
Sound Setting
14
Adjusting Subwoofer Level/Bass Level/MID Level/Treble Level/Balance (between Left and Right)/Fader (between Front and Rear)/ Loudness/Defeat
14
Equalizer Presets (FACTORY EQ)
14
Adjusting the Parametric Equalizer Curve (3BAND EQ)
14
Setting the Bass Control
14
Setting the MID Control
15
Setting the Treble Control
15
Adjusting the High Pass Filter
15
Turning Subwoofer ON/OFF
15
Adjusting the Low Pass Filter
16
Setting the Subwoofer Phase
16
Setting the Subwoofer System
16
Other Functions
16
Displaying the Text
16
About the Indication Display
17
About "Text
17
Using the Front aux Input Terminal
17
Setup
18
Setting
18
General Setting
18
Playing MP3/WMA/AAC Data (PLAY MODE)
18
Setting the aux Level (aux GAIN)
18
Setting the aux SETUP Mode
18
Connecting to an External Amplifier (POWER IC)
19
Demonstration
19
Display Setting
19
Changing Lighting Colour
19
Dimmer Control
19
Scroll Setting (TEXT SCR)
19
Scroll Type Setting
19
USB Setting
20
Setting the USB Search Mode
20
Setting the USB Skip Function
20
BT Hands Free Calling
20
Setup before Using
20
About BLUETOOTH
20
Before Using BLUETOOTH Function
20
How to Connect to a BLUETOOTH Compatible Device (Pairing)
21
Pairing a BLUETOOTH Compatible Device with SSP (Secure Simple Pairing)
21
Pairing a BLUETOOTH Compatible Device Without SSP (Secure Simple Pairing)
21
Bluetooth Setup
21
Setting the BLUETOOTH Connection (BT IN)
21
BLUETOOTH Audio Setting (AUDIO)
21
Hands-Free Phone Setting (HFP)
21
Setting the BLUETOOTH Device
21
Setting the Visible Mode
22
Pairing a BLUETOOTH Device from the Unit
22
Setting the BLUETOOTH Sound Quality
22
Adjusting the Volume (VOL LV ADJ)
22
Sound Auto Setting (AUTO SET)
22
Setting the Caller Information Display ON/OFF
22
Phone Book Auto Update ON/OFF
23
Changing the Phone Book List Order
23
Setting the Received Calls Automatically (Auto Answer)
23
Displaying the Phone Service Provider Name
23
Selecting the Output Speaker
23
Displaying the Firmware Version
23
Updating the Firmware
23
Hands-Free Phone Control
23
About the Hands-Free Phone
23
Answering a Call
24
Hanging up the Telephone
24
Calling
24
Dialing a Number in Incoming History
24
Dialing a Number in Incoming Missed Call History
24
Redialing a Number in Outgoing History
24
Voice Dial Operation
24
Dialing a Number in the Phone Book
25
Phone Book Alphabet Search Function
25
Call Waiting Function
25
Preset a Number in the Phone Menu (Shortcut Dial)
25
Dialing the Preset Number
25
Adjusting the Volume When Receiving a Call
25
Muting the Microphone Input Quickly (Voice Mute)
26
Call Switching Operation
26
BLUETOOTH Audio Operation
26
Recalling the BLUETOOTH Audio Mode
26
Selecting the Desired Song
26
Pausing
26
USB Memory (Optional)
26
Connecting USB Memory (Optional)
26
When Connect USB Memory to Front USB Connection Terminal
26
Remove USB Memory from Front USB Connection Terminal
27
Using the USB Memory Banking Function
27
Playback
27
Searching for a Desired Song
27
Searching by Tag Information
27
Searching by Artist Name
28
Searching by (FILE NAME) Mode
28
Repeat Play
28
Random Play)
29
Select Playlist/Artist/Album/Genre/Composer/Folder
29
Alphabet Search Function (Tag Search Mode Only)
29
Quick Search
29
Search Position Memory
29
Ipod/Iphone (Optional)
30
Connecting an Ipod/Iphone
30
How to Connect Ipod to Front USB Connection Terminal
30
Setting the Ipod Control
30
Playback
30
Searching for a Desired Song
31
Direct Search Function
31
Select Playlist/Artist/Album/Genre/Composer/Episode
31
Alphabet Search Function
32
Search Position Memory
32
Random Play Shuffle (M.I.X.)
32
Repeat Play
32
Displaying the Text
32
Information
33
In Case of Difficulty
33
Basic
33
Radio
33
Mp3/Wma/Aac
33
Audio
33
Ipod
33
Indication for CD Player
33
Indication for USB Memory
34
BLUETOOTH Mode
34
Indication for Ipod Mode
34
Specifications
35
Installation and Connections
36
Warning
36
Caution
36
Precautions
36
Installation
37
Removal
37
Connect USB Memory
38
Rear USB Memory Connection (CDE-135EBT Only) (Sold Separately)
38
Remove USB Memory
38
When Connect Ipod/Iphone to Rear USB Connector (CDE-135EBT Only) (Sold Separately)
38
Mounting the Microphone
38
Connector (CDE-135EBT Only Sold Separately)
38
Connections
39
