ALPINE MRV-M1200 68-29530Z91-A (EN/FR/ES)
8-EN
SWI
NOTE:
• Before
the pow
perpen
Input
Set th
positi
increa
distor
the ou
the am
speak
slight
achiev
Cross
FILTE
Use th
freque
Bass E
Add a
your b
CONNECTION CHECK LIST
Please check your head unit for the conditions
listed below:
Remote Turn-On Lead
a. The head unit does not have a remote turn-on
or power antenna lead.
b. The head unit’s power antenna lead is activated
only when the radio is on (turns off in the tape
or CD Mode).
c. The head unit’s power antenna lead is logic level
output (+) 5V, negative trigger (grounding type),
or cannot sustain (+) 12V when connected to
other equipment in addition to the vehicle’s
power antenna.
If any of the above conditions exist, the remote
turn-on lead of your MRV-M1200 must be
connected to a switched power source (ignition)
in the vehicle. Be sure to use a 3A fuse as close
as possible to this ignition tap. Using this
connection method, the MRV-M1200 will turn
on and stay on as long as the ignition switch is
on.
If this is objectionable, a SPST (Single Pole,
Single Throw) switch, in addition to the 3A fuse
mentioned above, may be installed in-line on
the MRV-M1200 turn-on lead. This switch will
then be used to turn on (and off) the
MRV-M1200. Therefore, the switch should be
mounted so that is accessible by the driver.
Make sure the switch is turned off when the
vehicle is not running. Otherwise, the amplifier
will remain on and drain the battery.

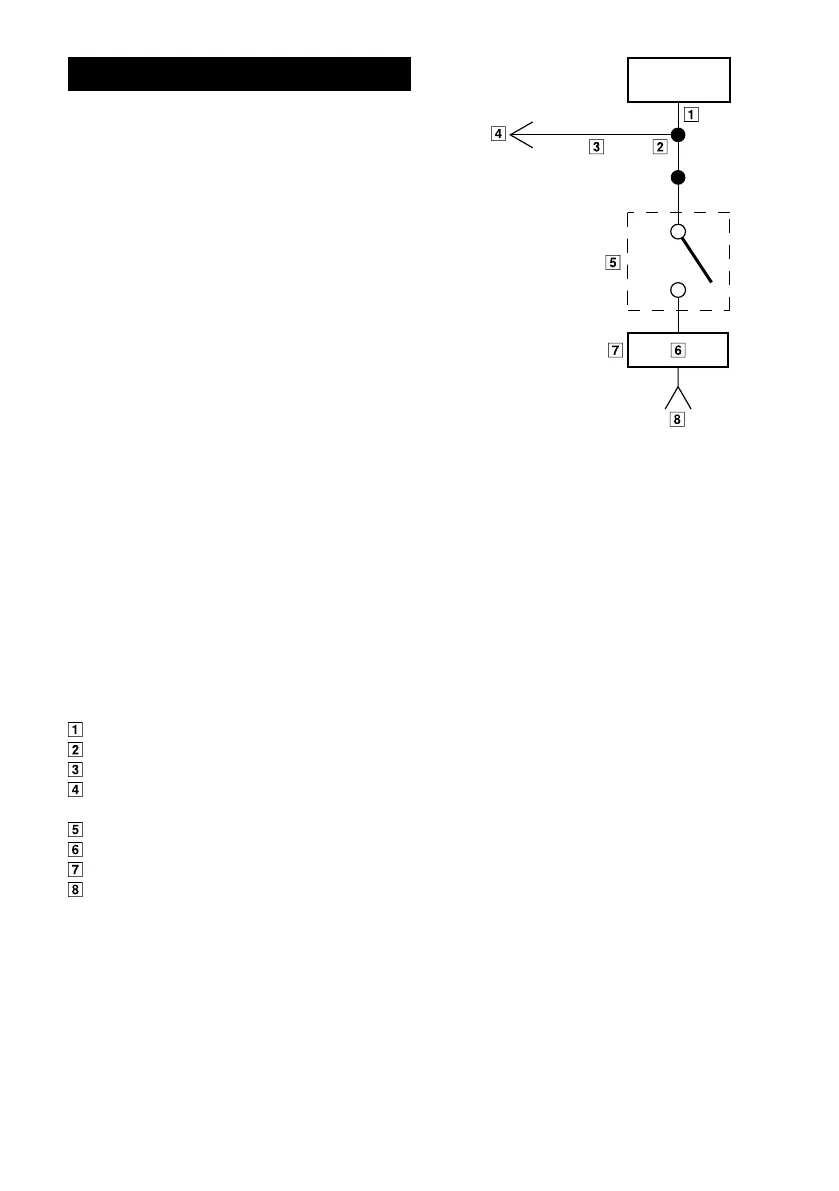

Blue/White
Power Antenna
Remote Turn-On Lead
To other Alpine component’s Remote Turn-On
Leads
SPST Switch (optional)
Fuse (3A)
As close as possible to the vehicle’s ignition tap
Ignition Source
MRV-M1200
