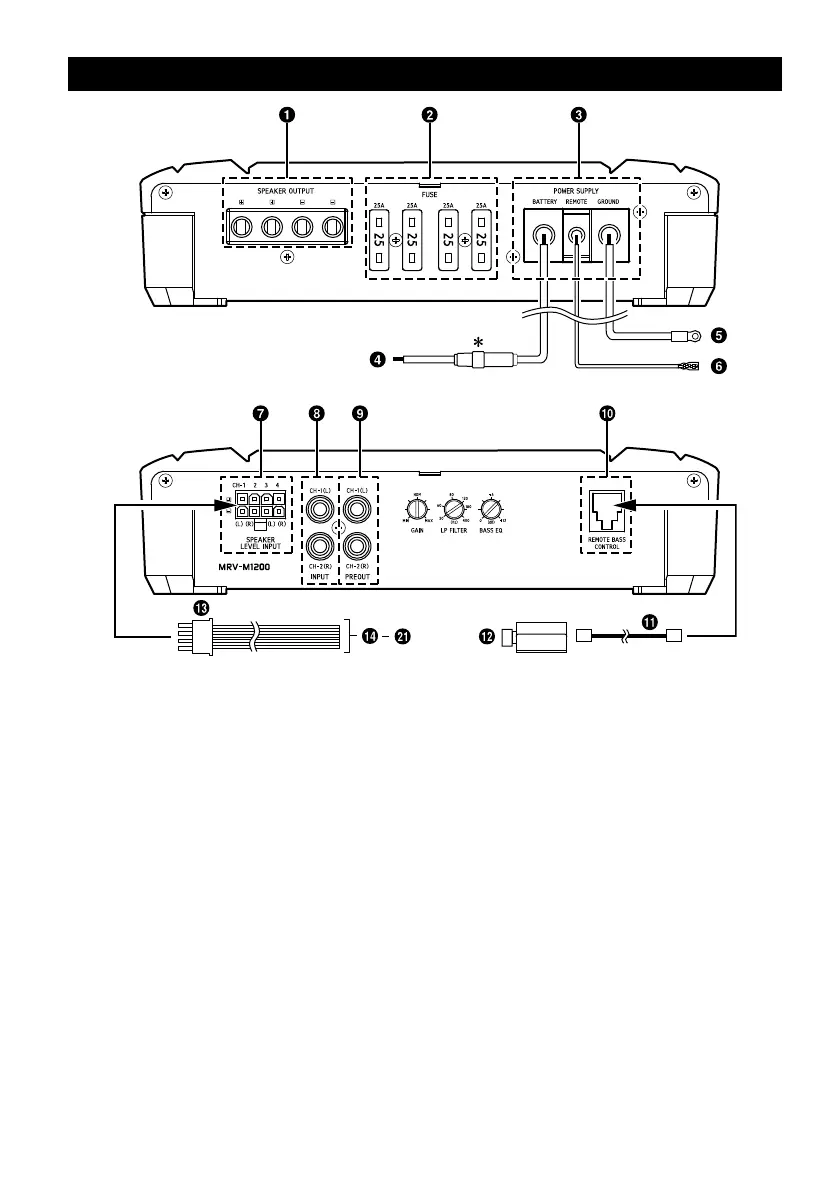

CONNECTIONS
 Be sure to add an in-line fuse with the battery lead as close as possible to the battery’s positive (+) terminal.
Before making connections, be sure to turn the
power off to all audio components. Connect the
battery lead from the amp directly to the positive
(+) terminal of the vehicle’s battery with
appropriate in-line vehicle’s fuse (see Battery Lead
section). Do not connect this lead to the vehicle’s
fuse block.
To prevent external noise from entering the
audio system
• Locate the unit and route the leads at least 10 cm
(4”) away from the vehicle’s harness.
• Keep the battery power leads as far away from
other leads as possible.
• Connect the ground lead securely to a bare metal
spot (remove any paint or grease if necessary) of
the vehicle’s chassis.
• If you add an optional noise suppressor, connect
it as far away from the unit as possible. Your
Alpine dealer carries various noise suppressors,
contact them for further information.
• Your Alpine dealer knows best about noise
prevention measures so consult your dealer for
further information.
