MULTIPLE MONO AMPLIFIER SYSTEM

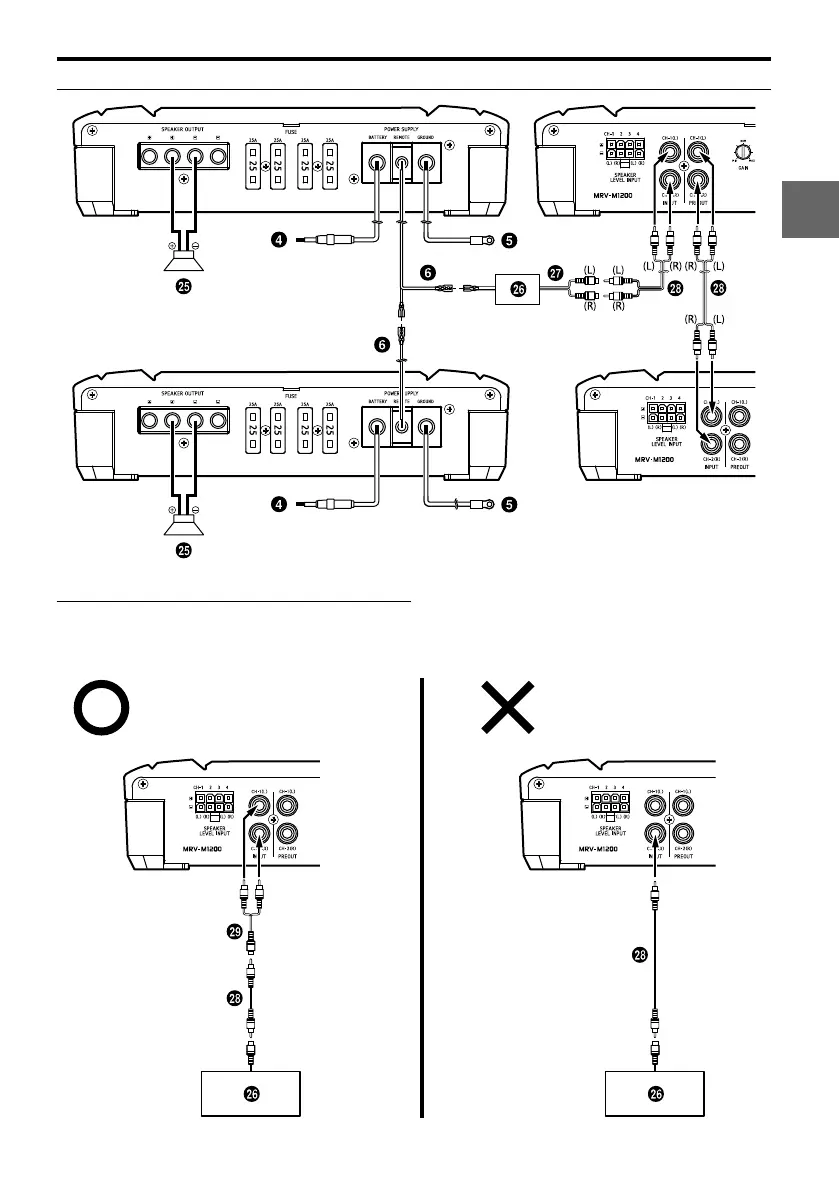

Important Tips on Bridging an Amplifier
NOTE:
• Low output will result if only one channel input is used. The Y-adapter is not required if a stereo/mono pair
line output is used to drive both inputs of the bridged amp.
Proper connection
One signal One signal
Improper connection
