Cyclone V GX Starter Kit
User Manual
Choosing the 7-SEG tab leads to the window shown in
Figure 2-4. From the window, directly use
the left-right arrows to control the 7-SEG patterns on the Cyclone V GX Starter board which are
updated immediately. Note that the dots of the 7-SEGs are not enabled on the Cyclone V GX Starter
board.

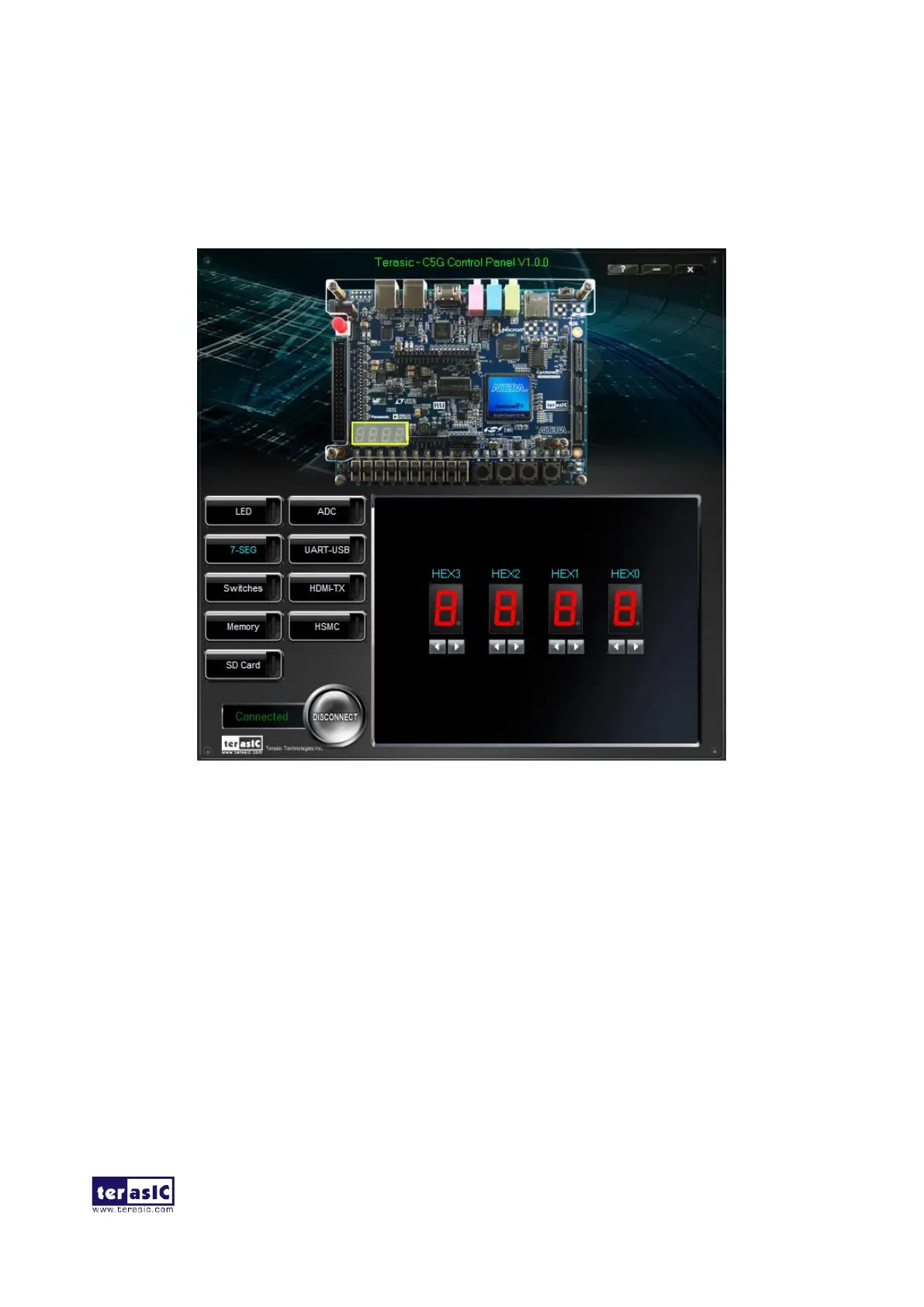

Figure 2-4 Controlling 7-SEG display
The ability to set arbitrary values into simple display devices is not needed in typical design
activities. However, it gives users a simple mechanism for verifying that these devices are
functioning correctly in case a malfunction is suspected. Thus, it can be used for troubleshooting
purposes.
