Altivar Process ATV680 - Process System SF - Case 2

EAV64334 06/2017 29
Process System SF - Case 2

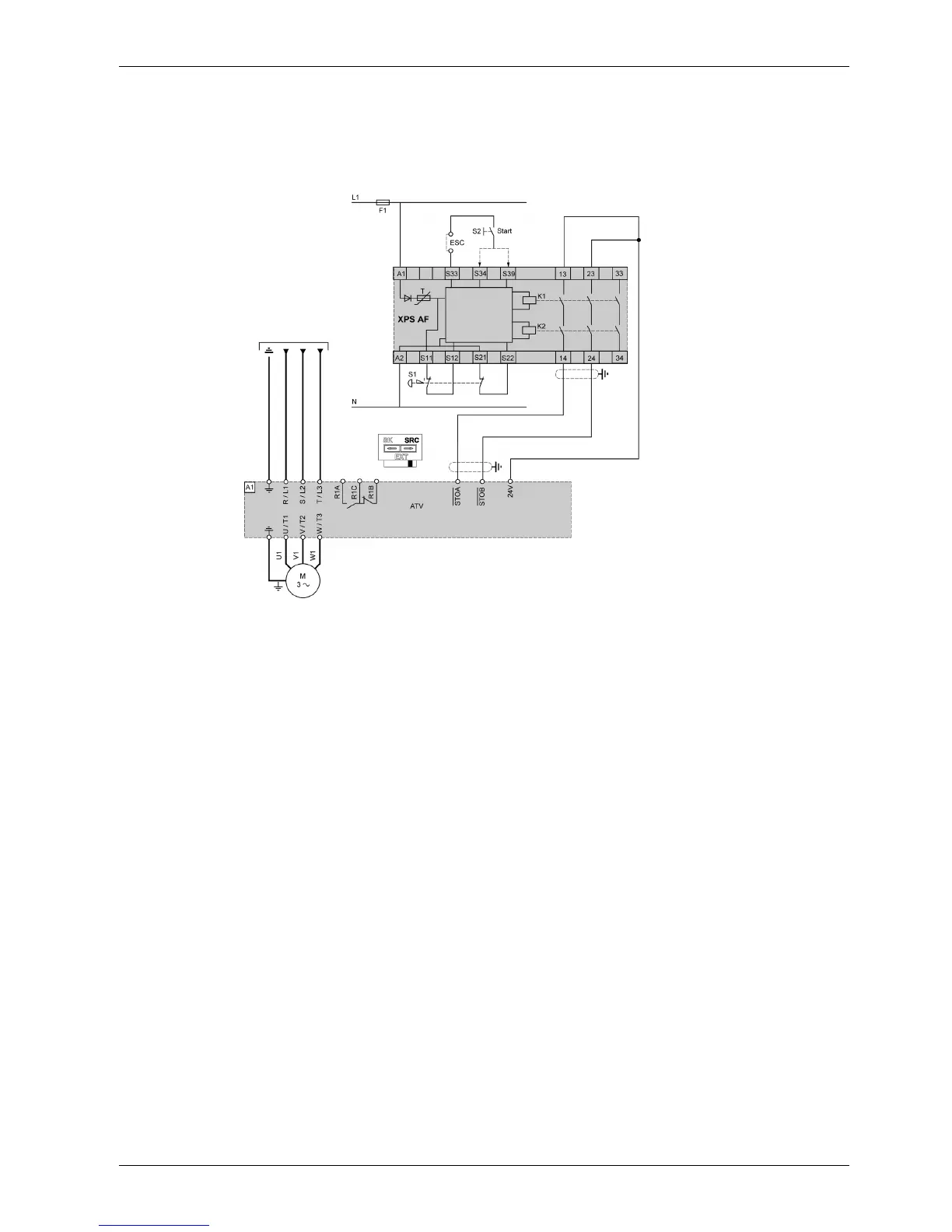

Single Drive with Safety Module Type Preventa XPS-AF Connection Diagram
This connection diagram applies for a single drive configuration with the safety module type Preventa XPS-
AF according to ISO 13849-1 category 3 PLe, IEC 62061 and 60204-1 stop category 0.
