Process System SF - Case 3

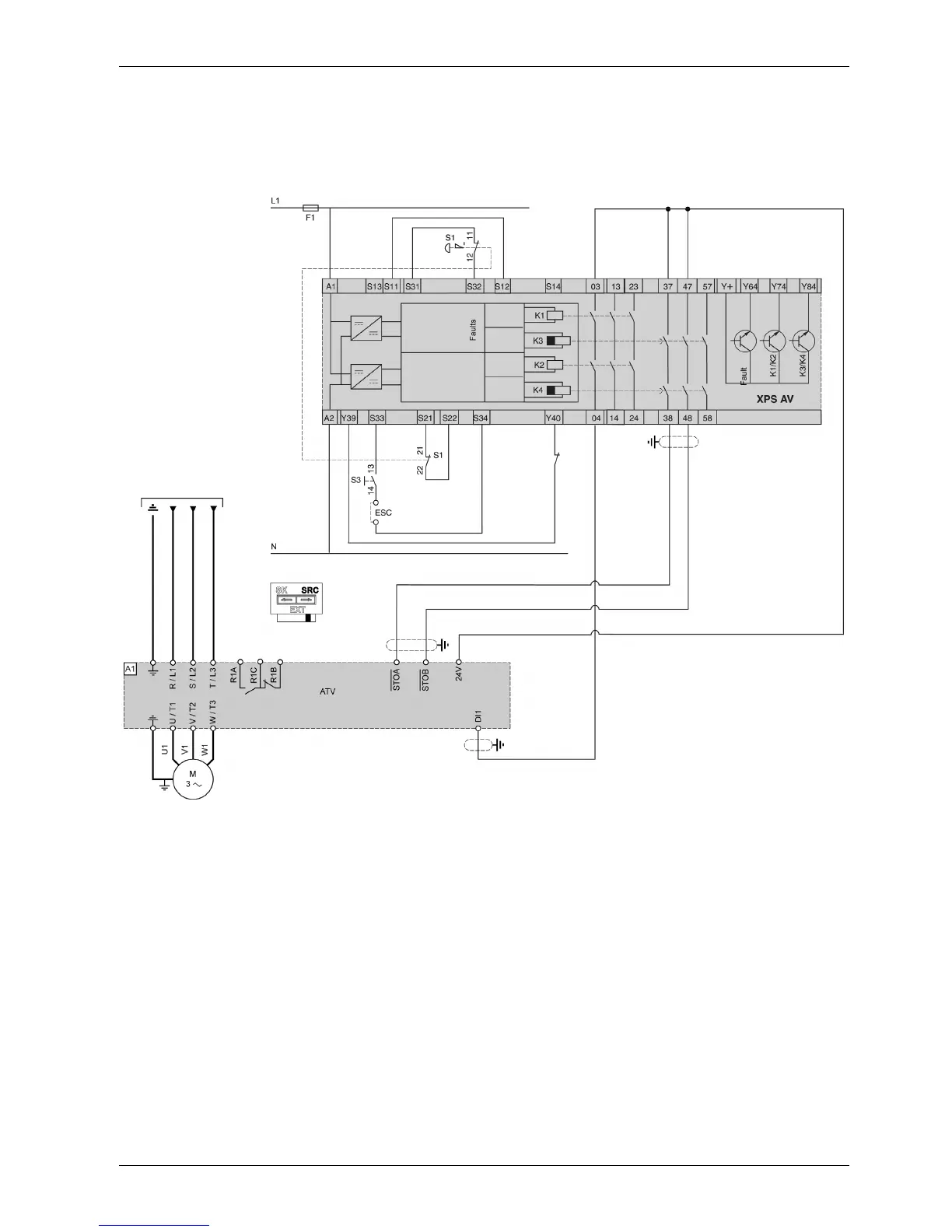

Connection Diagram For Single Drive with Safety Module Type Preventa XPS-AV
This Connection diagram applies for a single drive configuration with the Safety Module Type Preventa
XPS AV According to ISO 13849-1 category 3 PLe and IEC 60204-1 stop category 1.
NOTE: This diagram is a wiring configuration using DI1 assigned to forward operation.
