MN-29756 (Rev. 5) 12/17 • TH-SK Series Cook, Hold, Smoke •
Installation
Stacking Instructions
1) If the two appliances were shipped together from the factory, the top appliance will have the casters already
removed. A stacking kit will be included with the shipment.
If casters need to be removed, lay the appliance on its back, and using a rubber or non-marring hammer, tap on the
top and underside of the caster, alternating sides, until the caster slides out.
2) While appliance is laid on its back, insert one stacking post in each of the four corners of the upper appliance.
Securethe stacking posts using one screw and two fl at washers that are included with the stacking kit.
Usetemplate 68696 to locate set screw hole. Drill with #30 Bit and Tap 8-32.
NOTE: The fl ange on the stacking posts must face the outside of the appliance.
3) Remove the four top mounting screws from the lower appliance. Place the upper appliance, which has the
stacking posts installed, on top of the bottom appliance. Center the top appliance from front to back.
Re-install the four screws through the fl ange of the four stacking posts.

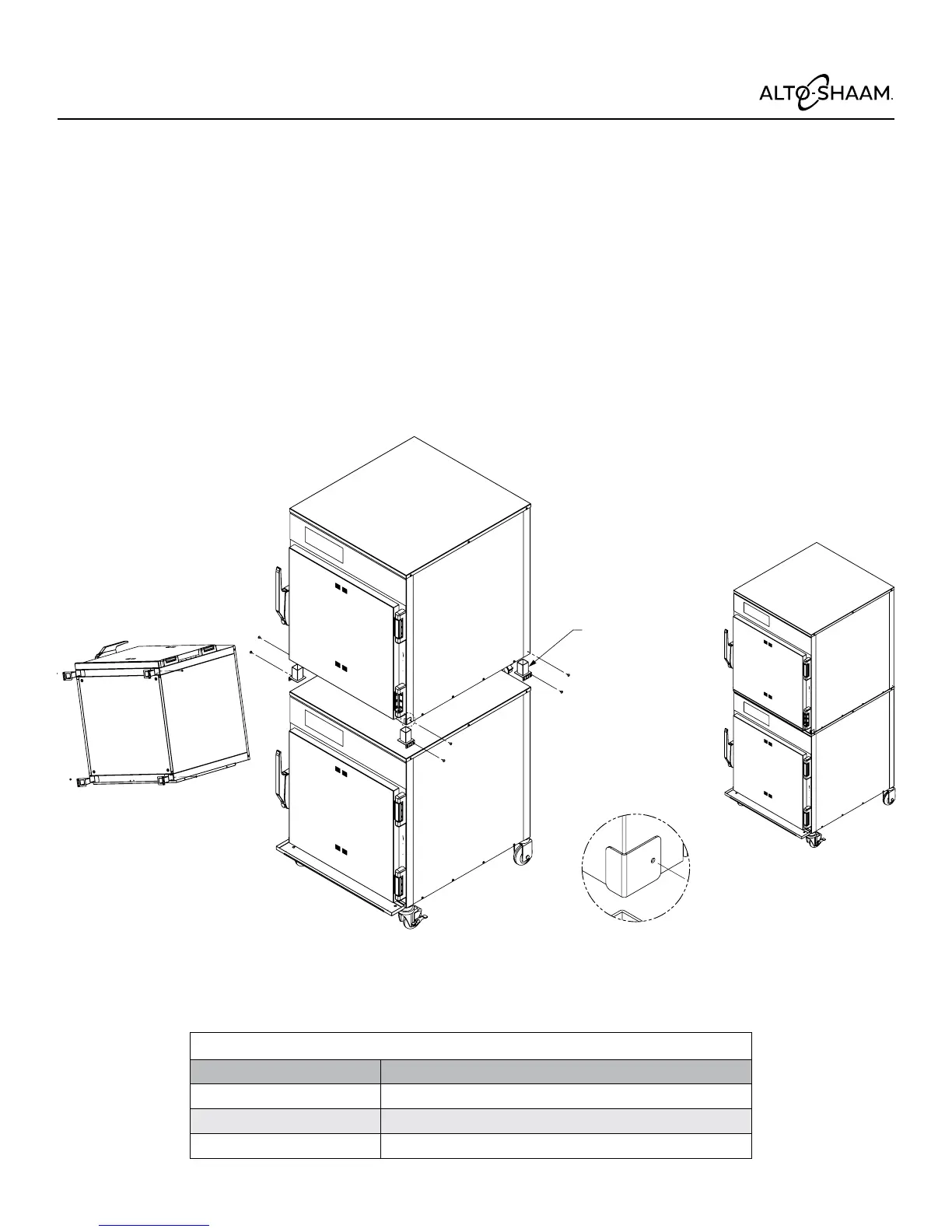

DETAIL A
STACKING KIT 5004864
CASTER SET SCREW
TOP MOUNTING SCREW
A
Stacking Configurations
Model Can be stacked with:
500-TH-II 500-TH/III, 500-TH-II or 500-S
750-TH-II or 767-SK 750-TH/III, 750-TH-II, 750-S, 767-SK, 767-SK/III
1000-TH-II or 1000-SK/II 1000-TH/III, 1000-SK/III, 1000-SK/II, 1000-S
