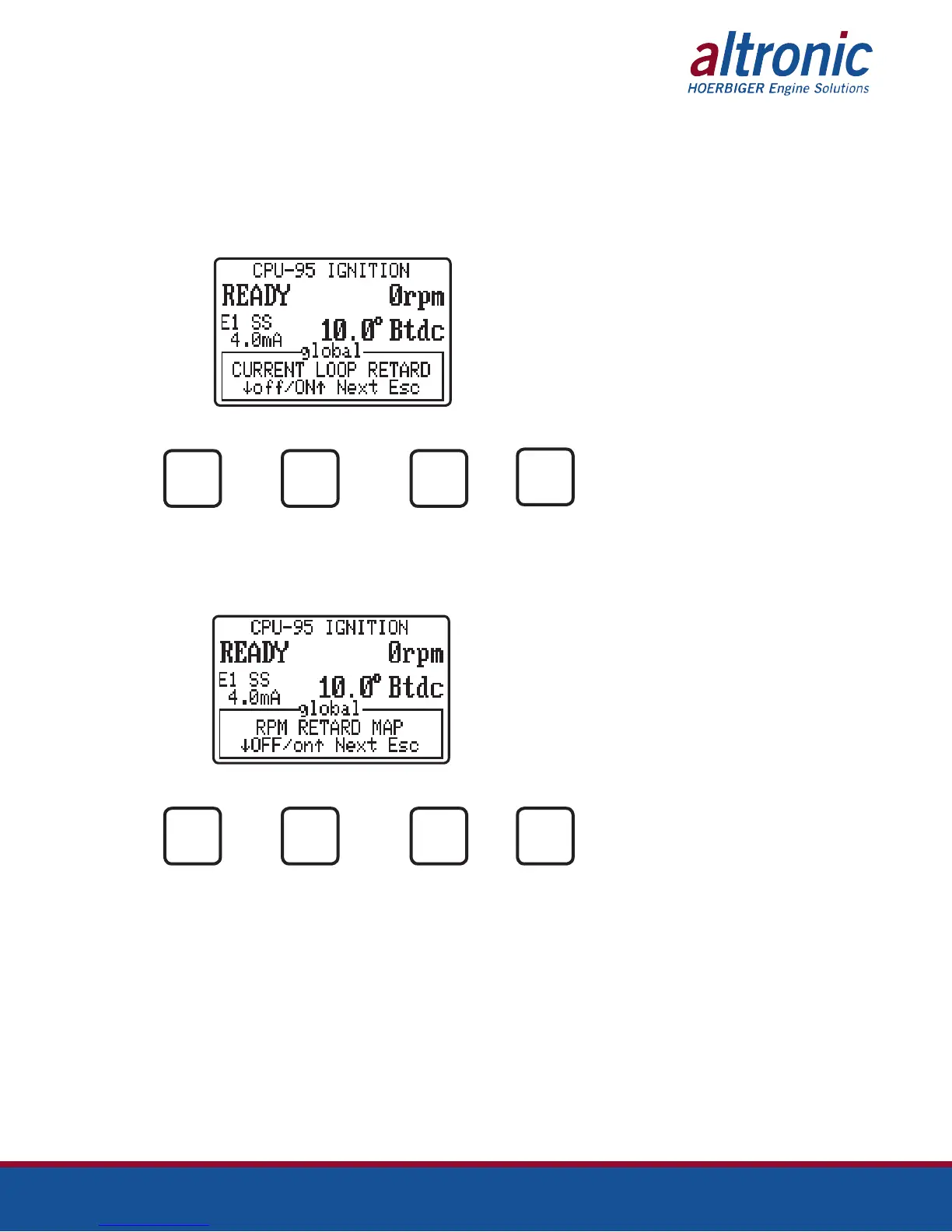

6.2 The first mode selection can enable or disable the pre-configured retard curve
controlled by the 4-20 mA current loop input. The choices are ON or OFF, with
the active selection displayed in capital letters. A PC is required to configure the
4-20 mA curve; reference the programming instructions, form CPU-95EVS PI.
When the current loop is on, the current loop value is displayed (xx.x mA) with
the “A” capitalized. When the current loop is off, the value is displayed (xx.x ma)
with the lower case “a”.
AT NOTE: DISPLAY
SHOWS CURRENT
LOOP ON.
TO TO FOR TO
TURN TURN NEXT EXIT
ON OFF OPTION


NEXT
ESC
6.3 The next mode selection can enable or disable the pre-configured retard curve
controlled internally by engine RPM. To configure the RPM retard curve, reference
form CPU-95EVS PI.
AT THE NOTE: DISPLAY
NEXT SHOWS RPM
OPTION MAP OFF.
SCREEN
TO TO FOR TO
TURN TURN NEXT EXIT
ON OFF OPTION


NEXT ESC
