Amada 125DP - Dual Pulse Welding Speed

APPENDIX A: TECHNICAL SPECIFICATIONS
DUAL PULSE 125
STORED ENERGY RESISTANCE WELDING POWER SUPPLY
990-270 A-5

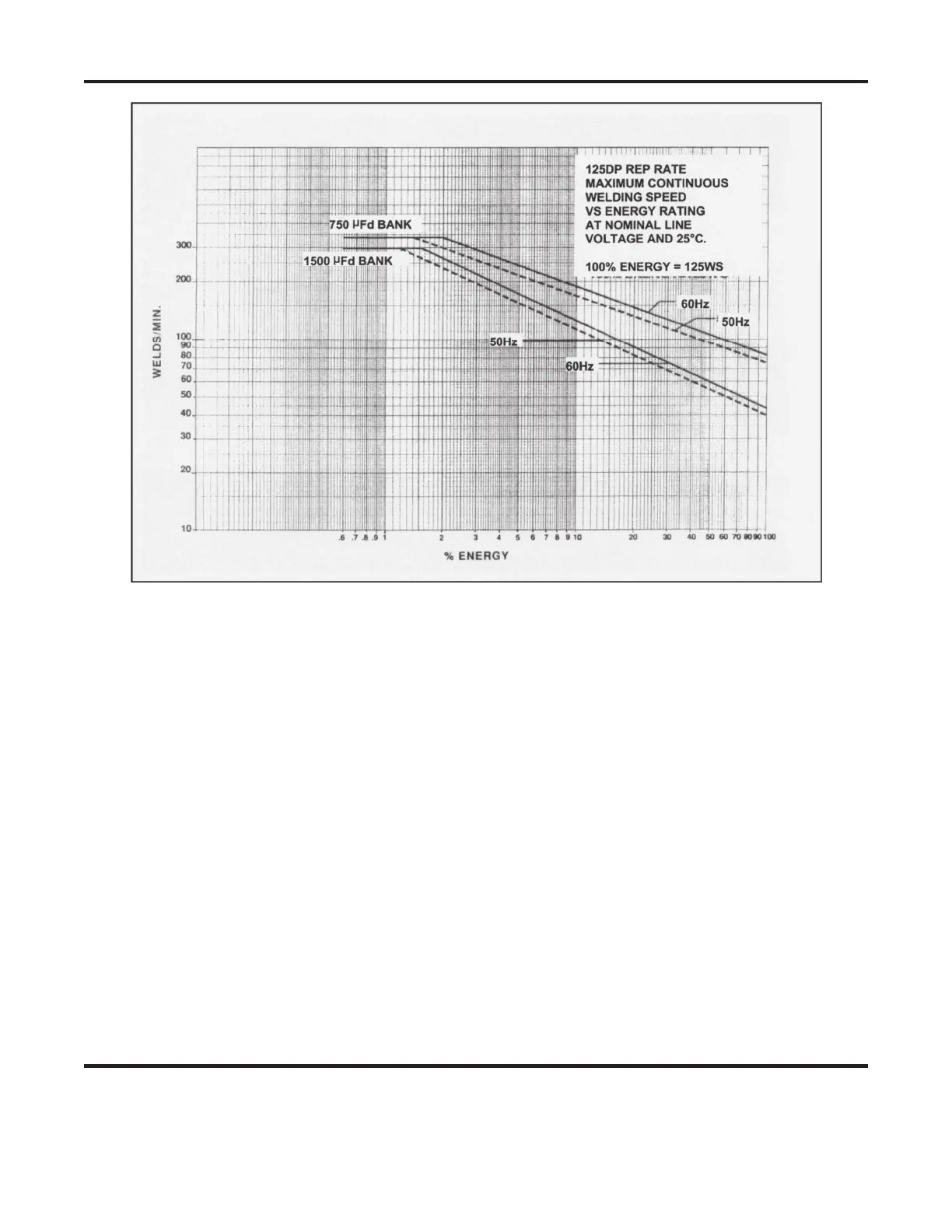

Figure A-2. Repetition Rate, Maximum Continuous welding Speed of Model 125DP
Dual Pulse Welding Speed
The Repetition Rate or Hit Rate for Dual Pulse operation may be calculated as follows:
Refer to table A-3 or figures A-1 and A-2.
Find the Repetition Rate or Hit Rate for each individual pulse.
RR
1
= First Pulse Rep Rate (Hit Rate)
RR
2
= Second Pulse Rep Rate (Hit Rate)
