Disassembly
WARNING
!
To avoid the risk of electrical shock, personal injury, or
death, disconnect power to oven and discharge
capacitors before following any disassembly procedure.
Door / Interlock Switch Adjustment /
Replacement
1. Remove outer case wrapper with
caution
not to damage
components on circuit board.
2. Remove the 4 bolts securing hinges to oven cavity.
3. Remove door from oven.
4. Position new door on oven.
5. Loosely install 4 door hinge bolts.
6. With .060” shim on hinge side and .030 (.76 mm)
shim on latch side, (taped as shown) close the door
and apply light pressure on the hinge side of the
door toward the oven cavity and tighten 4 door hinge
bolts.
7. Remove shim on hinge side of door only.
8. Open and close door, observing switch activation.
Door is properly adjusted when primary and
secondary switch plungers are fully depressed with
the door closed.
9. If switch requires adjustment:
•
Open oven door
•
Loosen switch mounting screws
•
Position interlock switch assembly all the way
towards the front of the oven
•
Tighten interlock switch mounting screws
•
Close door and verify all switches are activated
10. Remove shim from latch side of inner door.
11. Re-check switch activation.
12. Reinstall outer case wrapper with
caution
not to
damage components on circuit board.
13. Perform RF leakage test.

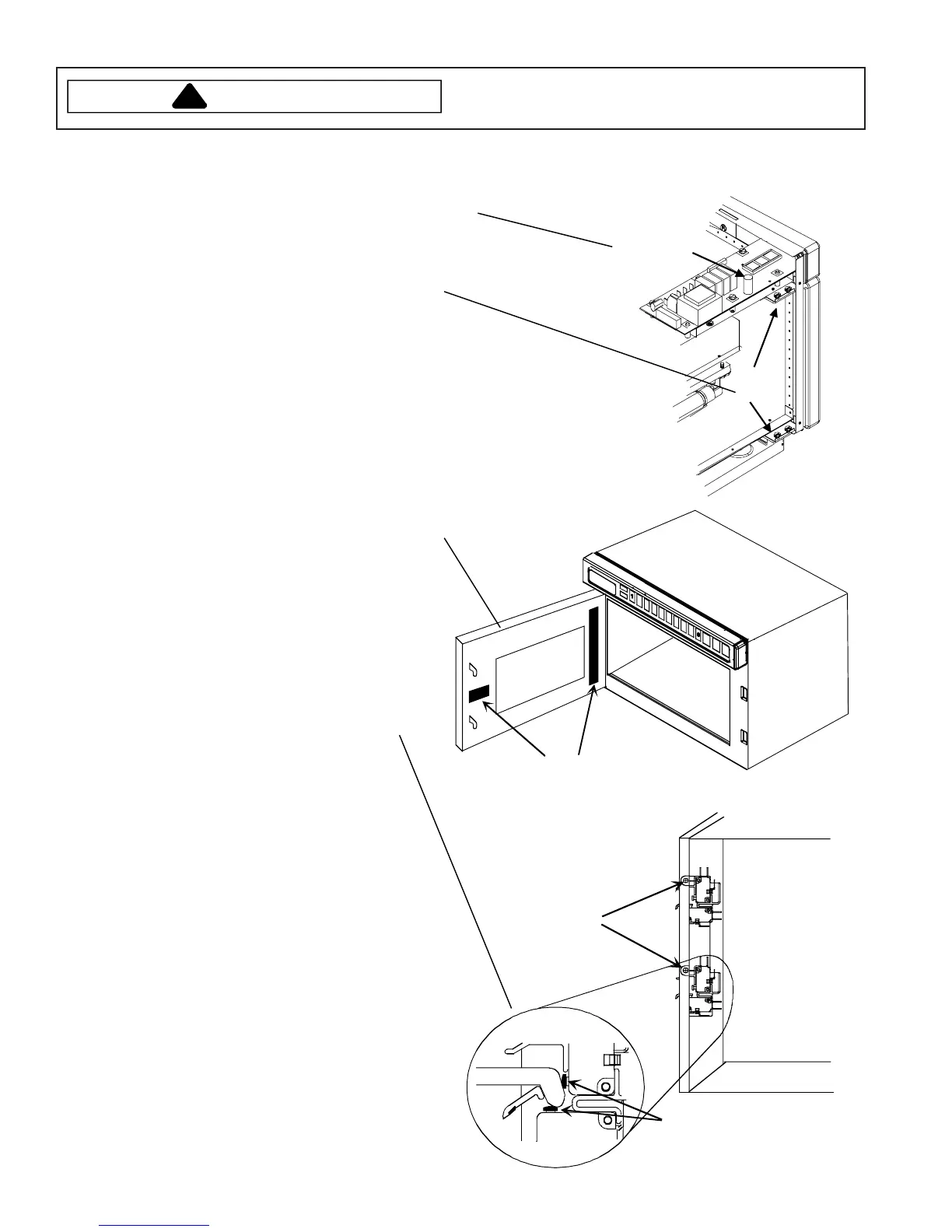

Hinge
Bolts
Component
Board
Shims
Mounting
Screws
Switch
Plungers
