RS2230003 Rev.1 32
Disassembly
WARNING
To avoid the risk of electrical shock, personal injury, or
death, disconnect power to oven and discharge
capacitors before following any disassembly procedure.

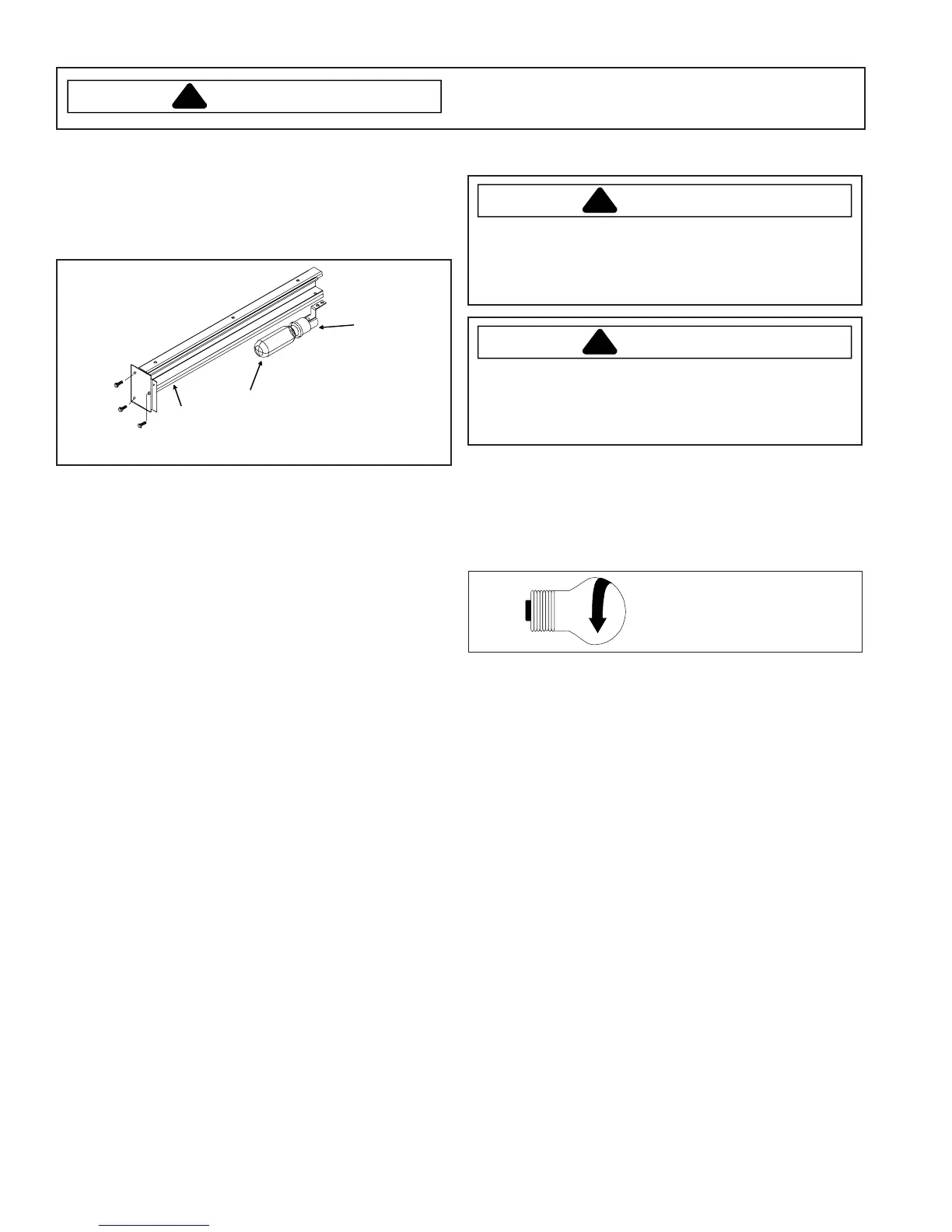

Light Socket
1. Unplug power cord remove outer case.
2. Unscrew light bulb from socket.
3. Disconnect wire terminals to light socket.
4. Remove screw securing light socket to light retainer.
5. Reassemble light socket in reverse order.
Light bulb
Light
bulb
socket
Lamp
access
slide
Replacing Oven Light Bulb
WARNING
To avoid electrical shock which can cause severe
personal injury or death, unplug power cord or open
circuit breaker to oven before replacing light bulb.
After replacing light bulb, restore power.
CAUTION
To avoid personal injury or property
damage, observe the following:
• Allow oven and light bulb to cool.
• Wear gloves when replacing light bulb.
Tools Needed
• Protective gloves
• Screwdriver
• 25-watt, 120-volt appliance bulb (available from
authorized distributor or servicer)
1. Remove screws from access cover on back panel of
oven exterior. Slide access bracket out.
2. Remove old bulb and replace with new bulb.
3. Replace access cover and screw by reversing
procedure in step 1.
To remove bulb,
turn in direction
shown.
