Disassembly
WARNING
!
To avoid the risk of electrical shock, personal injury, or
death, disconnect power to oven and discharge
capacitors before following any disassembly procedure.
Fuse
1. See “Component Location” Figure 3, for location.
2. Unplug power cord from power source.
3. Remove outer case.
4. Replace fuse and reassemble in reverse order.
NOTE: When replacing fuse, interlock switch assembly
must be replaced.

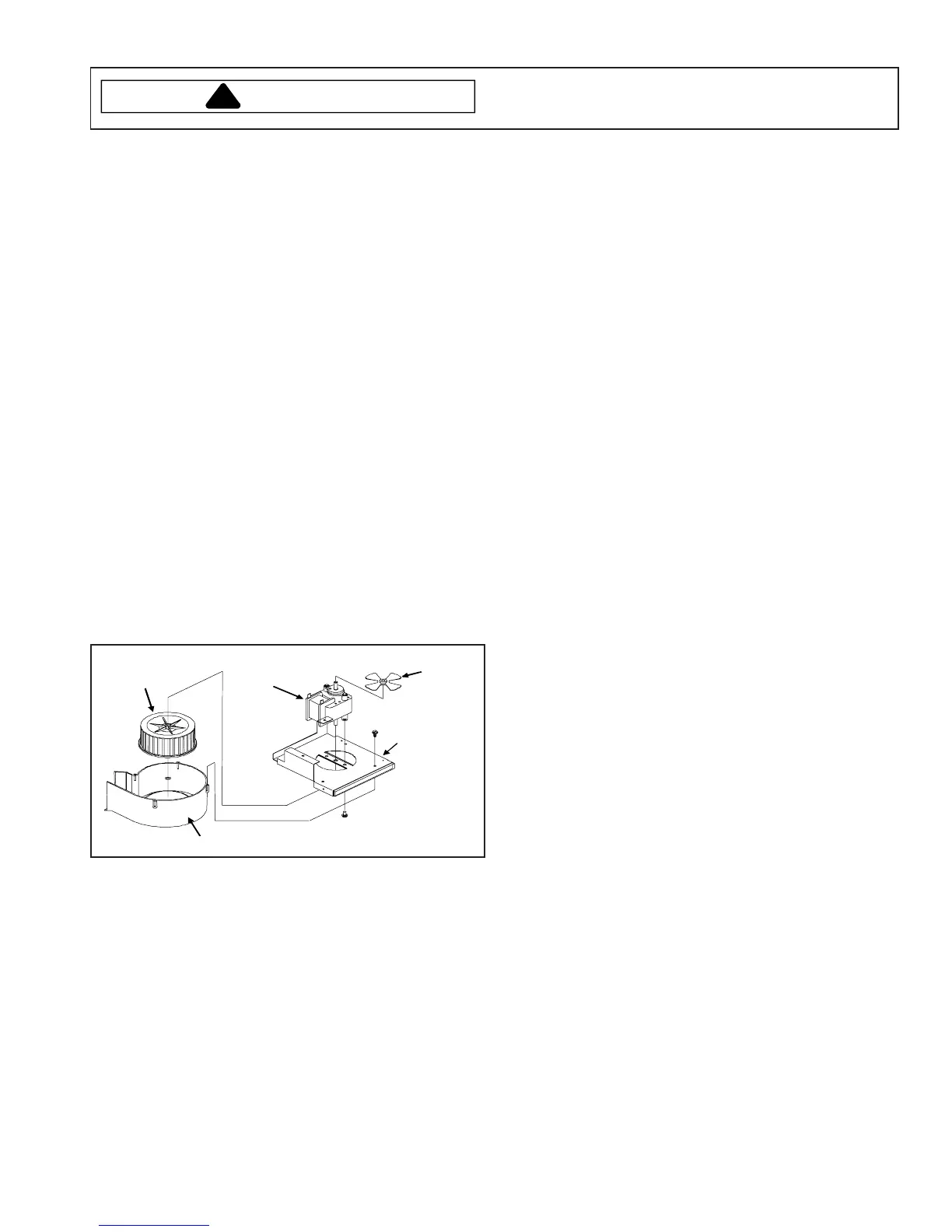

Blower Wheel and Motor
1. Unplug power cord from power source.
2. Remove outer case and back panel.
3. Remove wiring from blower motor terminals.
4. Remove screws securing blower mounting bracket.
5. Remove blower assembly and bracket from oven.
6. Remove screws securing scroll to mounting bracket.
7. Loosen allen set screw securing blower wheel to
motor shaft.
8. Remove blower wheel.
9. Remove screws securing motor to mounting bracket.
10.Reassemble blower wheel and motor in reverse
order.
NOTE: When reinstalling blower wheel, push blower
wheel on shaft, tighten, and rotate to insure
clearance between blower wheel, and blower
housing.
Motor
Wheel
Housing
Fan
Mounting
bracket
Fan Blade
1. See prior illustration for location.
2. Pull blade off shaft.
3. When reinstalling blade, push blade on shaft and
rotate to insure clearance between fan blade and
wire terminals.
Auto Transformer
1. See “Component Location” Figure 2, for location.
2. Unplug power cord from power source.
3. Remove outer case and back panel.
4. Remove screws securing auto transformer to
chassis.
5. Remove wire connections from auto transformer.
6. Reassemble auto transformer in reverse order.
Transformer
1. See “Component Location” Figure 3, for location.
2. Unplug power cord from power source.
3. Remove outer case and back panel.
4. Remove screws securing transformer to chassis.
5. Pry upward and back to release transformer from
chassis.
6. Remove wire connections from transformer.
7. Reassemble transformer in reverse order.
Capacitor
1. See “Component Location” Figure 3, for location.
2. Unplug power cord from power source.
3. Remove outer case and back panel.
4. Remove screws securing auto transformer to
chassis.
5. Discharge capacitor and remove wires from
terminals.
6. Remove capacitor bracket mounting screw.
7. Reassemble capacitor in reverse order.
Power Cord
1. See “Component Location” Figure 3, for location.
2. Unplug power cord from power source.
3. Remove outer case and back panel.
4. Disconnect wiring.
5. Remove strain relief by compressing with pliers.
6. Remove power cord.
7. Reassemble power cord in reverse order.
