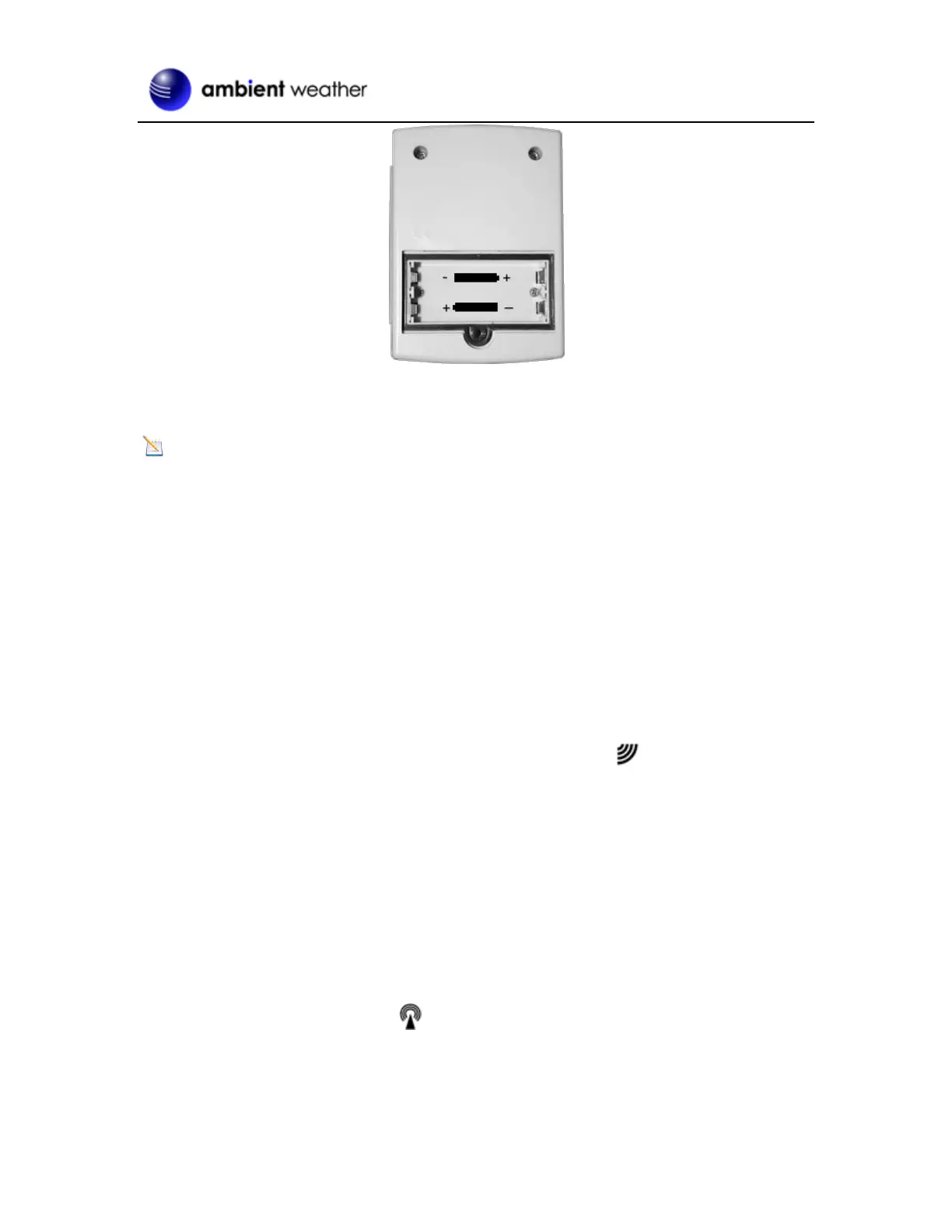

Figure 1

2.4 Display Console Set Up

Note: To avoid permanent damage, please take note of the battery polarity before inserting the

batteries.

Place the remote thermo-hygrometer about 5 to 10’ away from the display console (if the sensor is too

close, it may not be received by the display console).

Remove the battery door on the back of the display. Insert three AA (alkaline or lithium, avoid

rechargeable) batteries in the back of the display console. Looking at the back of the unit (left to right),

the polarity is (+) (-) for the top battery, (-) (+) for the middle battery and (+) (-) for the bottom battery.

The display will beep once and all of the LCD segments will light up for a few seconds to verify all

segments are operating properly.

Replace the battery door, and fold out the desk stand and place the console in the upright position.

The console will instantly display indoor temperature, humidity, barometer, tendency, date and time.

The remote search icon will turn on in the OUT section of the display . The outdoor temperature

and humidity will update on the display within a few minutes.

Do not touch any buttons until the remote sensor reports in, otherwise the remote sensor search

mode will be terminated and the search icon will turn off. When the remote sensor data has been

received, the console will automatically switch to the normal mode, and all further settings can be

performed.

If the remote does not update, please reference the troubleshooting guide in Section 7.

2.4.1 Radio Controlled Clock (RCC)

The RCC is received by the main console. After the remote sensor is powered up, the sensor will

transmit weather data for 30 seconds, and then the sensor will begin radio controlled clock (RCC)

reception and the RCC search icon will turn on. During the RCC time reception period

(maximum 10 minutes), no weather data will be transmitted to avoid interference.

If the signal reception is not successful within 1 minute, the signal search will be cancelled, the

outdoor temperature and humidity will update as normal, the RCC icon will turn off, and the RCC
