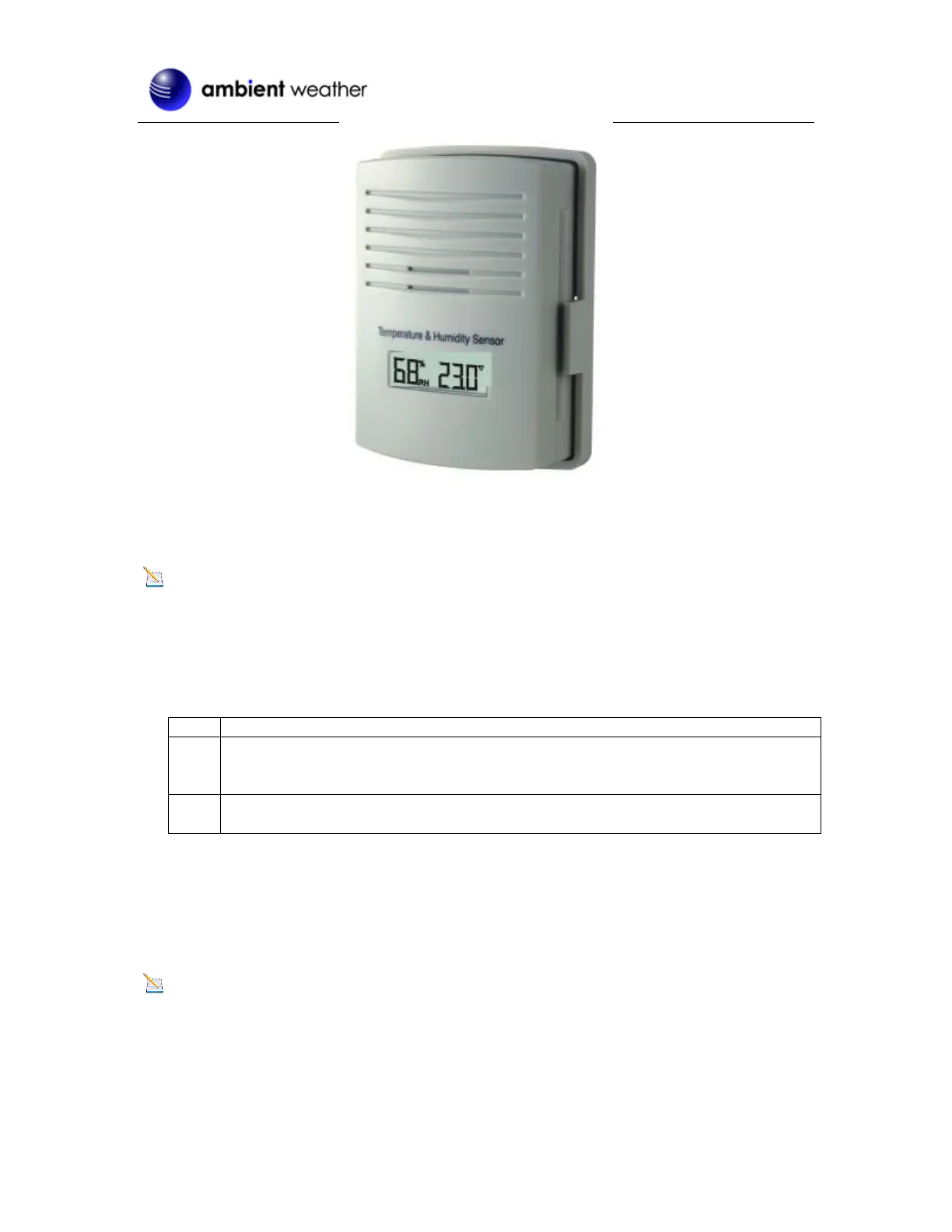

Figure 2
3 Getting Started
Note: The power up sequence must be performed in the order shown in this section (remote
transmitter first, Display Console second) to avoid the console synchronization time out.
The WS-1171B weather station consists of a display console (receiver), and a thermo-hygrometer
(remote transmitter).
2.1 Parts List
Display Console
Frame Dimensions (LxWxH): 7.25 x 4 x 1.25 in
LCD Dimensions (LxW): 4.25 x 2.50”
Thermo-hygrometer transmitter (WH2B) with mounting bracket
Dimensions (LxWxH): 3.5” x 2.5” x 0.9”
2.2 Recommend Tools
Philips precision screwdriver
Drill for mounting bracket
2.3 Thermo-Hygrometer Sensor Set Up
Note: To avoid permanent damage, please take note of the battery polarity before inserting the
batteries.
Remove the battery door on the back of the sensor with a Philips screwdriver (there is only one screw,
at the bottom of the unit). Insert two AAA batteries as shown in Figure 3.
We recommend lithium batteries for cold weather climates, but alkaline batteries are sufficient for
To Next Page
