Page 24

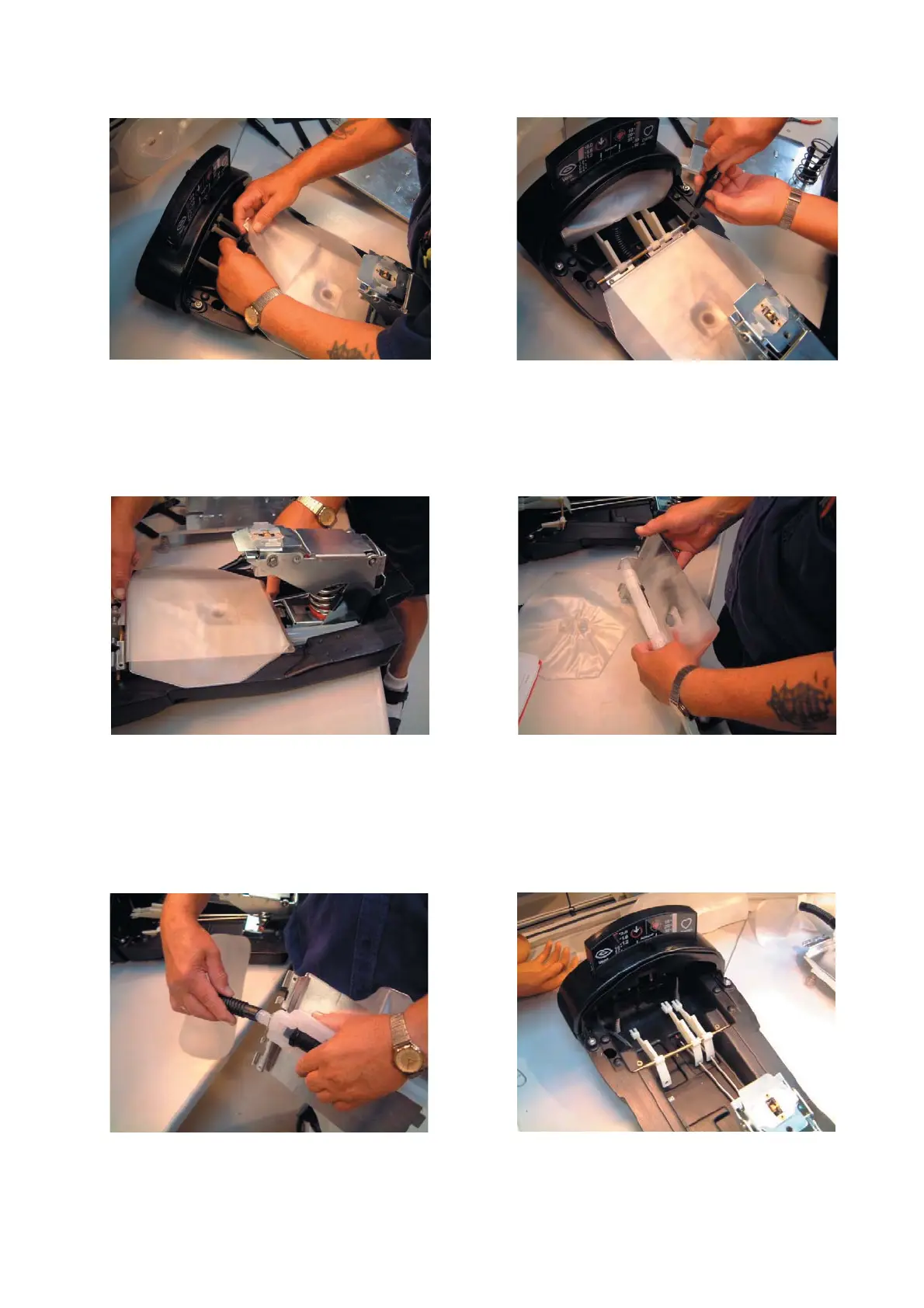

6.2-18 The tension rods and levers may now be
detached.
6.2-13 The stomach bag can now be separated from
the tube
6.2-15 Push the basis plate in the direction of the
monitoring instrument until the pin is released at the
rocker lever.
6.2-17 The lung bag may now be carefully withdrawn
from the bushing in the basis plate. The complete stom-
ach valve unit may also be removed.
6.2-14 Remove the two retaininig screws for the basis
plate.
6.2-16 The basis plate with tubes, lung bag and stom-
ach valve can now be removed.
