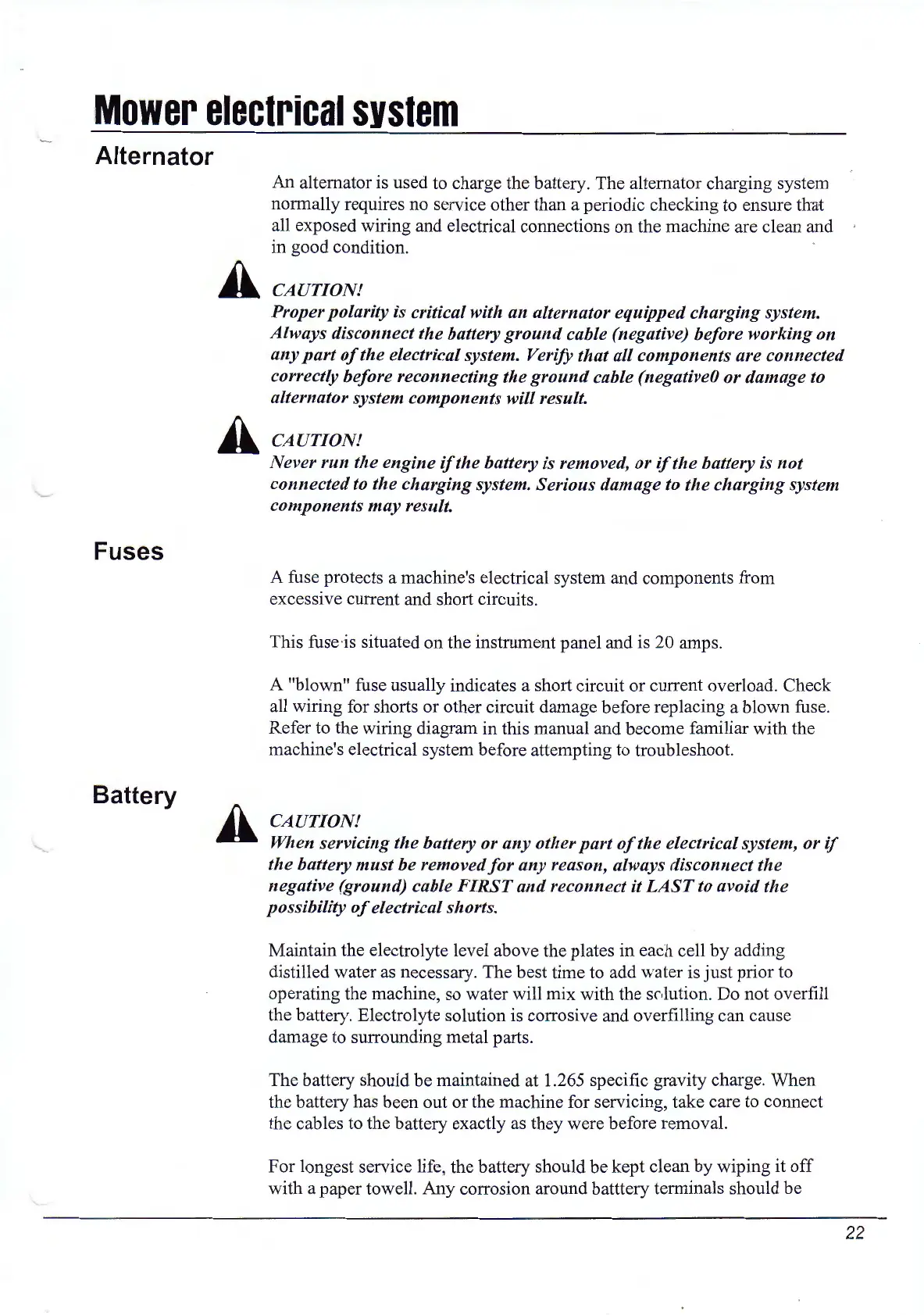

Mower
electrical
system
Alternator
Fuses
Battery
An
alternator is used to charge the battery. The alternator charging system
normally requires no service other than a periodic checking to ensure that
all exposed wiring and electrical connections
on
the machine are clean and
in good condition.
CAUTION!
Proper polarity is critical with
a11
alternator
equipped
chargi11g system.
Always
disco1111ect
the
battery grou11d cable (11egative)
before
worki11g
011
a11y
part
of
the
electrical system. Verify
that
all
compo11e11ts
are
co1111ected
correctly before
reco1111ecti11g
the
grou11d cable
(11egativeO
or
damage
to
alternator system
compo11e11ts
will result.
A
CAUTION!
Never
ru11
the
e11gille
if
the
battery is removed,
or
if
the
battery is
11ot
co1111ected
to
the
chargi11g system.
Serious
damage
to
the
chargi11g system
compo11e11ts
may
result.
A fuse protects a machine's electrical system and components from
excessive current and short circuits.
This fuse·is situated on the instrument panel and is 20 amps.
A "blown" fuse usually indicates a short circuit or current overload. Check
all wiring for shorts or other circuit damage before replacing a blown fuse.
Refer to the wiring diagram in this manual and become familiar with the
machine's electrical system before attempting to troubleshoot.
CAUTION!
Whe11
servicillg
the
battery
or
a11y
other
part
of
the
electrical system,
or
if
the
battery
must
be
removed
for
a11y
reaso11
, always
disco1111ect
the
11egative (grou11d) cable
FIRST
a11d
rec01111ect
it
LAST
to
avoid
the
possibility
of
electrical shorts.
Maintain the electrolyte level above the plates in each cell
by
adding
distilled water as necessary. The best time to add water is
just
prior to
operating the machine, so water will mix with the
sr
.lution. Do not overfill
the battery. Electrolyte solution is corrosive and overfilling can cause
damage to surrounding metal parts.
The battery should
be
maintained at 1.265 specific gravity charge. When
the battery has been out or the machine for servicing, take care to connect
the cables to the battery exactly
as
they were before removal.
For
longest service life, the battery should be kept clean
by
wiping it
off
with a paper towell.
Any
corrosion around batttery terminals should be
-
22
